LVL CRYO TUBE RACKS - RELIABLE STORAGE SOLUTIONS FOR YOUR SAMPLES
The Cryo Standard products from LVL technologies provide an excellent solution for the secure and reliable storage of samples at extremely low temperatures. Our Cryo Tubes are made of high-quality polypropylene and feature a Data Matrix coding (2D) on the bottom, ensuring easy identification and traceability. They are available with both internal and external threads and offer high stability and torsional resistance in the rack. The Cryo Racks are made of robust polycarbonate and are laser-engraved with a linear barcode (1D) on the narrow side and a Data Matrix code on the bottom. Our products are ideal for storage in ultra-low temperature freezers and LN2 tanks at temperatures down to -196°C and are autoclavable at 121°C for 20 minutes.
Test the 81-position Cryo Rack now!
LVL Cryo Rack 9x9
81-position Cryo Box Overview:
- Material: High-quality polycarbonate (PC)
- Temperature resistant: from -198°C to +121°C
- Autoclavable: at 121°C
- Storage: 81 x 2ml 2D SAFE® Cryovials
Design and Functionality:
- Lid: Transparent, polycarbonate with non-reversible design
- Bottom: White, with numerical coding
- Arrangement: 9 x 9 compartments, numerically labeled
- Fixation: Tubes are securely fixed, the 2D bottom code can be scanned
- Application: Storage at temperatures down to -196°C – cryogenic storage
- Designed in Germany, Produced in the European Union
Item No.: RCK-2XLX-CB81-L
| Item Number | Product Description | Sterility | Bulkware | Quantity per Unit |
|---|---|---|---|---|
| 4C-X20A-BL-BU-P-L | XLX2000 – 2ml SAFE 2D Tube |
No | Yes | 2400 |
| 4C-X20A-BL-BU-B-L | XLX2000 – 2ml SAFE 2D Tube |
Yes | Yes | 2400 |
Test the 100-position Cryo Rack now!

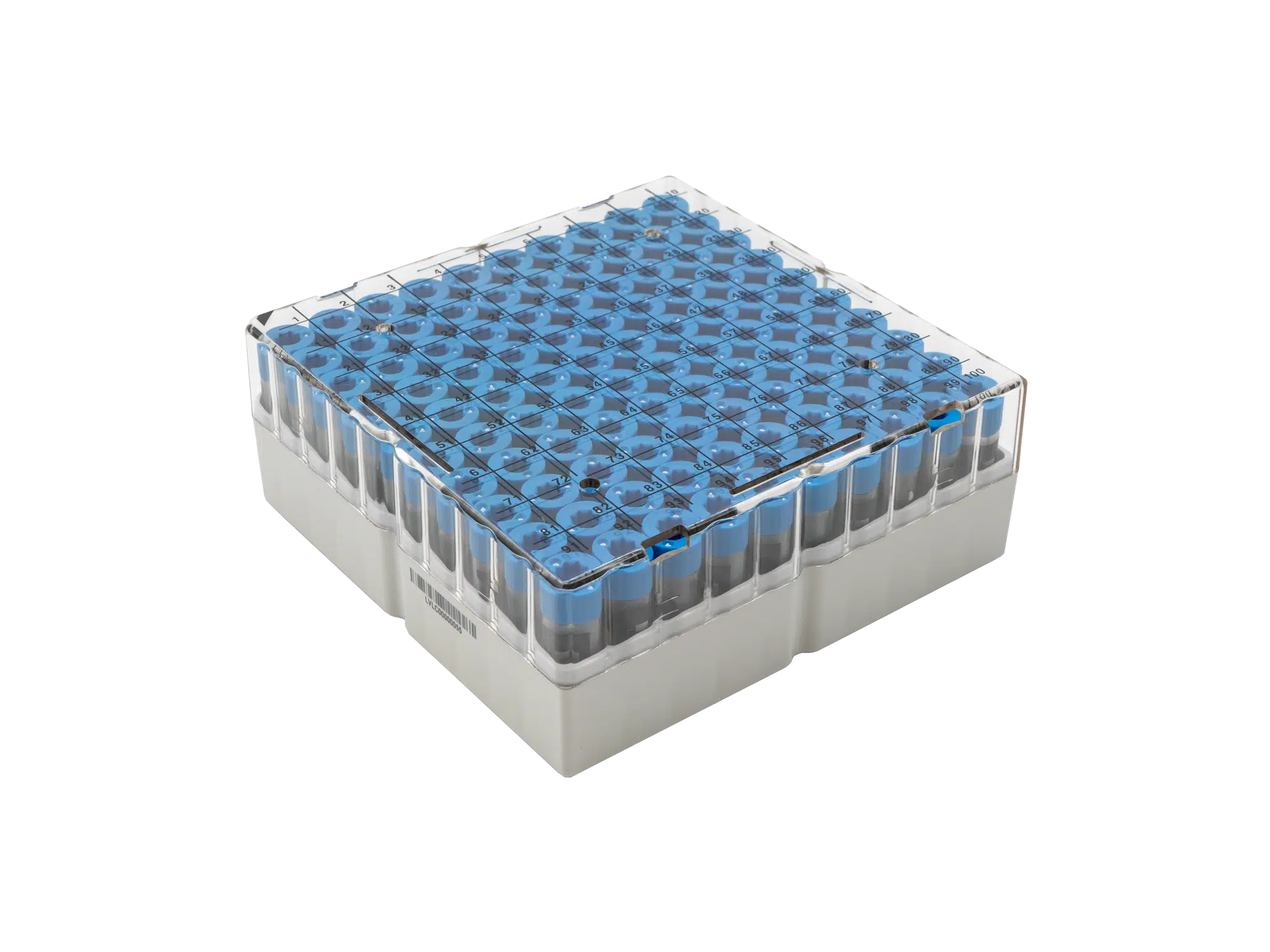

LVL Cryo Rack 10x10
100-position Cryo Box Overview:
- Material: High-quality polycarbonate (PC)
- Temperature resistant: from -198°C to +121°C
- Autoclavable: at 121°C
- Storage: 100 x 2ml 2D SAFE® Cryovials
Design and Functionality:
- Lid: Transparent, polycarbonate with non-reversible design
- Bottom: White, with numerical coding
- Arrangement: 10 x 10 compartments, numerically labeled
- Fixation: Tubes are securely fixed, the 2D bottom code can be scanned
- Application: Storage at temperatures down to -196°C – cryogenic storage
Item No.: RCK-2XLX-CB100-L
| Item Number | Product Description | Sterility | Bulkware | Quantity per Unit |
|---|---|---|---|---|
| 4C-X20A-BL-BU-P-L | XLX2000 – 2ml SAFE 2D Tube |
No | Yes | 2400 |
| 4C-X20A-BL-BU-B-L | XLX2000 – 2ml SAFE 2D Tube |
Yes | Yes | 2400 |
Try XLX2000 now!
SAFE® XLX2000
When it has to be 2 ml! The cryo tube with a 2D code.
XLX2000 at a Glance:
- Working Volume: 2.000 µl
- Height: 45,6 / 46,0 mm (Tube with Screw Cap / Tube with Screw Cap in Rack)
- Storage Temperature: Down to -196°C (Gas phase, liquid nitrogen)
- Secure storage through unique coding on the bottom of the tubes
- Optional Side Coding: 2D and HR
- Space-saving storage with standardized SBS rack.
- Tubes have an external thread – minimizes the risk of cross-contamination
- The tubes can be delivered in bulk or pre-racked
- Available as production sterile or e-beam sterilized
Item No.: 4C-X20A-BL-BU-P-L (production sterile)
Item No.: 4C-X20A-BL-BU-B-L (e-beam treated)
Format
81-position and
100-position
Cryo Box
Working Volume
2.000 µl
Temperarture
Up to -196°C
| Item Number | Product Description | Sterility | Bulkware | Quantity per Unit |
|---|---|---|---|---|
| 4C-X20A-BL-BU-P-L | XLX2000 – 2ml SAFE 2D Tube |
No | Yes | 2400 |
| 4C-X20A-BL-BU-B-L | XLX2000 – 2ml SAFE 2D Tube |
Yes | Yes | 2400 |
All the benefits of SAFE® at a glance
Technical Specifications
XLX 2000
SAFE® 2D Sample Tubes
Optional Sterilization E-Beam / ETO
Availability in Rack, Bulkware
Outer diameter 13.00 mm
Working Volume
| with Screw Cap | 2.000 µl |
| with Push Cap | 2.000 µl |
Storage Temperature
| with Screw Cap | -196°C |
| with Push Cap | n/a |
Side Code
| Barcode 1D | optional |
| Human Readable | optional |
Tube Height
| without Cap | 44.0 mm |
| with Screw Cap | 45.6 mm |
| with Push Cap | n/a |
Screw Caps
| pre-capped | Yes |
| with Cap-Rack | Yes |
| Bulkware | Yes |
technical drawings
LVL Cryo Rack 9×9
LVL Cryo Rack 9×9
LVL Cryo Rack 9×9
LVL Cryo Rack 9×9
technical drawings
LVL Cryo Rack 10×10
LVL Cryo Rack 10×10
LVL Cryo Rack 10×10
LVL Cryo Rack 10×10
