MX500
2D tubes with external threads for large volume samples
Test the MX500 now!

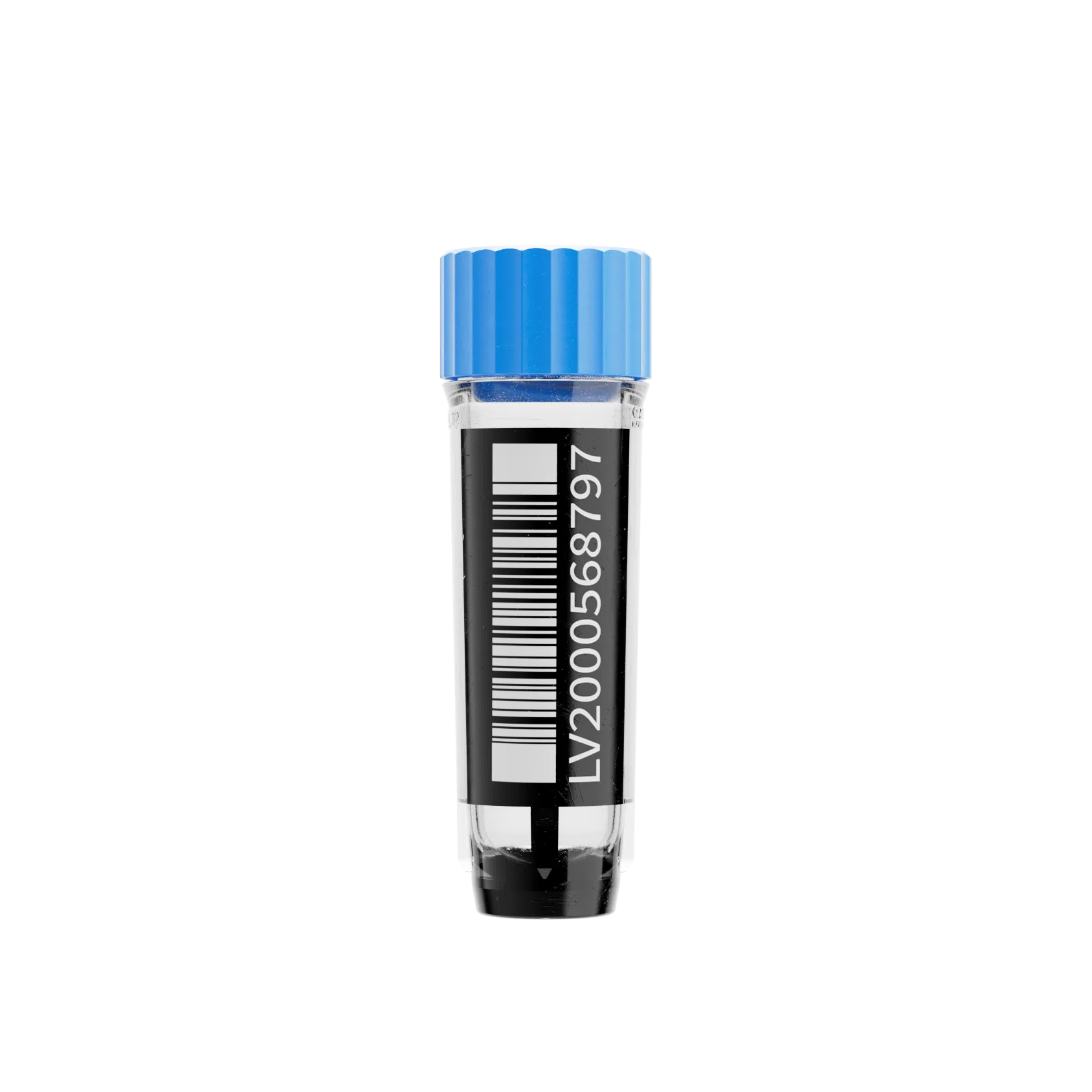

SAFE® MX500
The Star of Biobanking! The best compromise between efficient storage and good handling. Suitable for blood, serum, protein, and plasma.
MX500 at a Glance:
- Working Volume: 500 µl
- Height: 28,2 / 28,6 mm (Tube with Screw Cap / Tube with Screw Cap in Rack)
- Storage Temperature: Down to -196°C (Gas phase of liquid nitrogen)
- Secure storage through unique tube coding
- Optional Side Coding: 2D and HR
- Space-saving storage with standardized SBS rack.
- Tubes have an external thread – minimizes the risk of cross-contamination
- The tubes can be delivered in bulk or pre-racked
- Available as production sterile or e-beam sterilized
- Designed in Germany, Produced in the European Union
Format
SBS 96
Working Volume
500 µl
Temperature
Up to -196°C
All the benefits of SAFE® at a glance
All the benefits of SAFE® at a glance

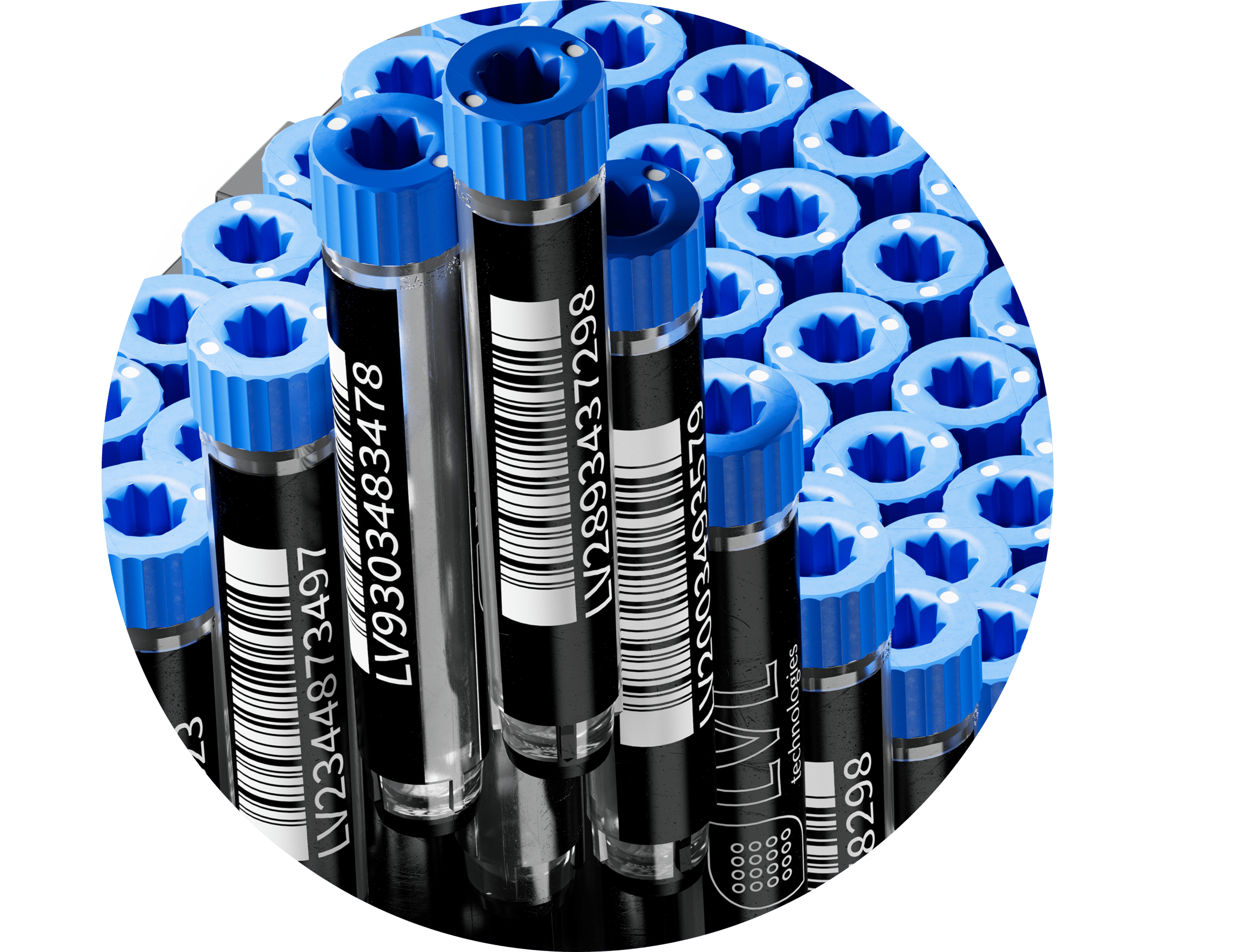

Redesigned 2D Tubes
The innovative SAFE® 2D tubes have been thoroughly redesigned to offer top performance and user-friendliness.
Clearly identifiable racks and tubes secure your samples for decades when stored correctly.
In addition to visual differentiation through various cap colors, the tube features fixed coding, space for individual coding, and space for your logo/study project or similar. The tube coding ensures that your samples are triply secured and can be identified both visually (HR code) and by using the appropriate SAFE® readers (2D/1D code).
Always perfectly sealed
Choose a closure system to get more information:
Amber Tubes
for light sensitive samples
White Tubes
with white code marking areas
Customized Codes
Your custum code on tube and rack
Technical Specifications
MX 500
SAFE® 2D Sample Tubes for Automation
In standardized SBS Rack
Dimensions LxW: 127.76 x 85.48 (+/- 0.25 mm)
Optional Sterilization E-Beam / ETO
Availability in Rack, Bulkware
Outer diameter: 9.00 mm
Working Volume
| with Screw Cap | 500 µl |
| with Push Cap | 500 µl |
Storage Temperature
| with Screw Cap | -196°C |
| with Push Cap | -80°C |
Side Code
| Barcode 1D | optional |
| Human Readable | optional |
Tube Height
| without Cap | 26.4 mm |
| with Screw Cap | 28.2 mm |
| with Push Cap | 27.8mm |
Screw Caps
| pre-capped | Yes |
| with Cap-Rack | Yes |
| Bulkware | Yes |
Rack Height
| non capped Tubes | 26.8 mm |
| screw capped Tubes | 28.6 mm |
| with Rack Lid | 32.5 mm |
Find Item Number

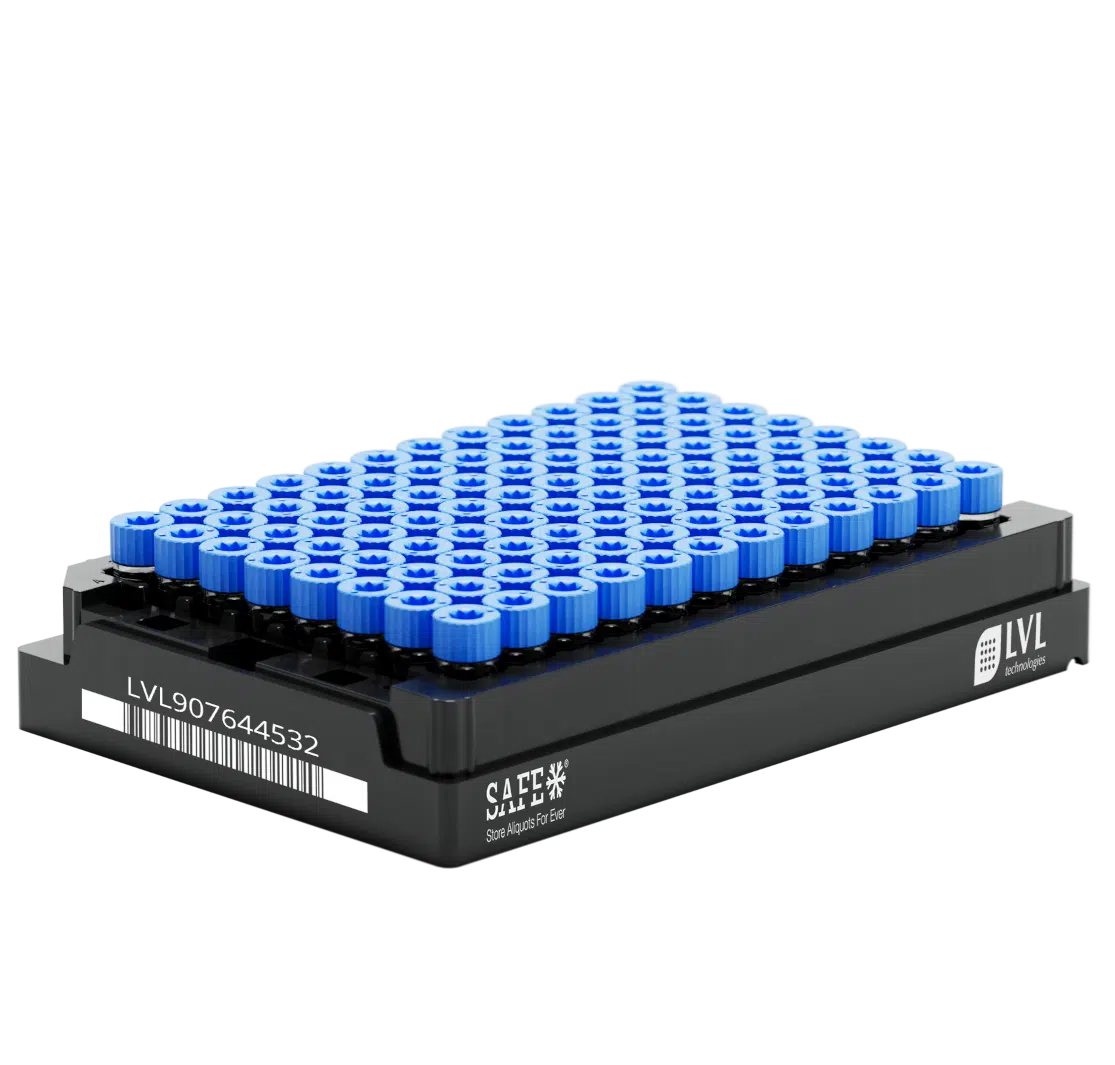

SAFE® MX500 2D Tube for 500 µl Biobanking Samples in SBS 96 Rack
SAFE® MX500 Tube with Free Marking Area
This version of the SAFE® MX500 Tube shows a free side area without a visible 1D or HR side code. Unique identification is still provided by the 2D code on the bottom of the tube. This makes it suitable for workflows where sample management is primarily handled by 2D code readers, rack readers or automated systems.
SBS 96 Rack for SAFE® MX500 Tubes
The empty SBS 96 rack shows the defined positioning for SAFE® MX500 Tubes. The standardized layout supports inserting, storing and reading the tubes in reproducible laboratory workflows. With its compact format, 500 µl samples can be organized in a space-saving and systematic way.
PERFECT
RACK!
CENTERED
TUBES
Slanted Dome Lids
MORE
FROST!
Overall, this redesigned 2D tube offers advanced features for maximum efficiency, safety, and quality in your lab.
Suitable for the following SAFE® devices and accessories
SAFE® YOU CAN TOUCH
Order the LVL Sample Pack now with sample tubes in the following volumes:
300µl – 8ml, including the new SAFE® Rack GEN3
Technical Drawings
MX500 G3
MX500 G3
MX500 G3
MX500 G3
SAFE® MX500 SAMPLE TUBES -
EFFICIENT MICROLITER-SCALE STORAGE
The SAFE® MX500 sample tubes from LVL technologies provide an efficient storage solution at the microliter scale. With a usable volume of 500 µl, these tubes are perfect for high-precision laboratory applications.
The 2D-coded tubes allow for easy identification and traceability, while their robust design ensures long-term storage in ultra-low temperature freezers. Ideal for labs that need maximum efficiency and reliable sample storage.
The SAFE® MX500 sample tubes offer an excellent balance between volume and space-saving, making them ideal for sample storage in confined laboratory environments. Thanks to the high quality and durability of these tubes, you can be confident that your samples are safe and protected.
Improve your lab processes with the SAFE® MX500 sample tubes and experience the benefits of this innovative solution. Made from high-quality polypropylene, these tubes offer excellent chemical resistance and temperature tolerance, making them suitable for various laboratory applications.
Trust the quality and efficiency of SAFE® MX500 sample tubes to ensure the integrity of your samples.
Learn more about LVL SAFE® products
The LVL Tube Laser Marker TLM 864:
Although the automation-friendly Data-Matrix code on the bottom of storage tubes has been standard for many years—and has greatly simplified sample handling—many users want to mark the tubes with their specific information. At the same time, they want to move away from time-consuming and unreliable labeling methods.
For this need, LVL has developed a fully automatic tube laser marker. The TLM 864 can automatically laser-mark SAFE® tubes in SBS 96, SBS 48, and SBS 24 formats from two sides and link the information in a database with the 2D code previously lasered during production. Up to 500 tubes per hour can be coded from nine SBS/ANSI positions.
LVL`D UP – What’s New, What’s Different?

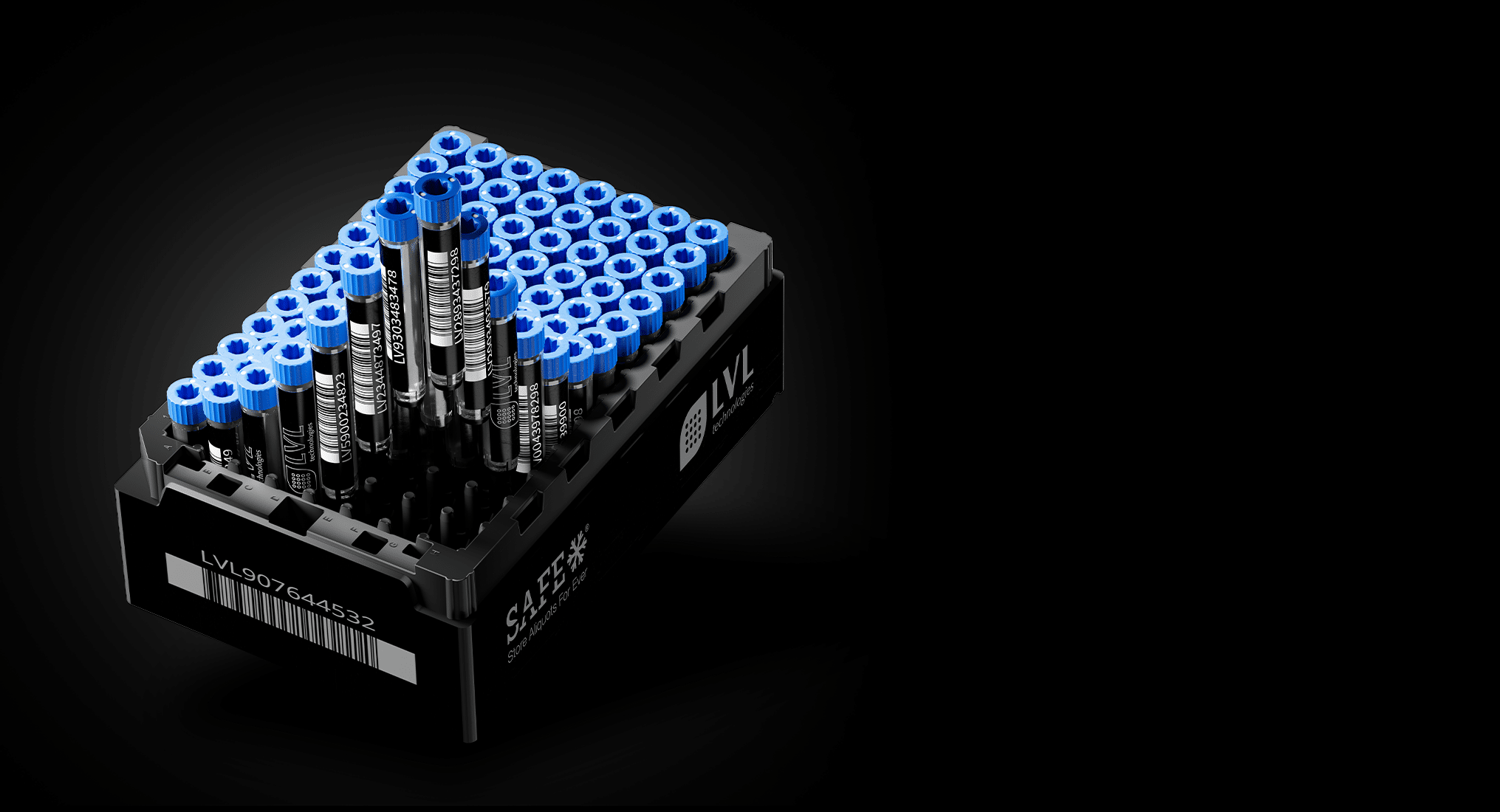

A completely redesigned automation-friendly rack and tube take our long-term storage tubes to the next level. Join us and upgrade your sample storage. In addition to more than 13 different cap colors and countless possibilities for customizing tube and rack coding, we adapt your sample storage system to your needs and preferences.
