SAFE® XXLX8000

The Storage Giant! Bigger is not possible.

XXLX8000 at a Glance:

Working Volume: 8,000 µl
Height: 72.0 / 72.8 mm (Tube with Screw Cap / Tube with Screw Cap in Rack)
Storage Temperature: Down to -196°C (Gas phase of liquid nitrogen)
Secure storage through unique coding on the bottom of the tubes
Optionally with side coding: 2D and HR
Space-saving storage with standardized SBS rack.
Tubes have an external thread – minimizes the risk of cross-contamination
The tubes can be delivered in bulk or pre-racked
Available as production sterile or e-beam sterilized
Designed in Germany, Produced in the European Union

Format

SBS 24

Working Volume

8.000 µl

Temperature

Up to -196°C

All the benefits of SAFE® at a glance

Applications-of-SAFE®-2D-tubes-with-F-Bottom-in-laboratory-automation-biobanking-and-cryogenic-storage

All the benefits of SAFE® at a glance

The perfect Tube!

- SAFE® medical polypropylene with a low leachables and low extractables - 2D floor code / protective edge against mechanical influences (scratches) - 1D side code / HR side code

The perfect Rack!

- Extremely dimensionally stable rack made of polycarbonate, stackable - Tubes have a stable position in the rack and can be easily removed - Storage at up to -196°C (LN2)

2D TUBES WITH EXTERNAL THREAD IN 24 SBS FORMAT

Technical Specifications

XXLX 8000

SAFE® 2D Sample Tubes for Automation

In standardized SBS Rack

Dimensions LxW: 127.76 x 85.48 (+/- 0.25 mm)

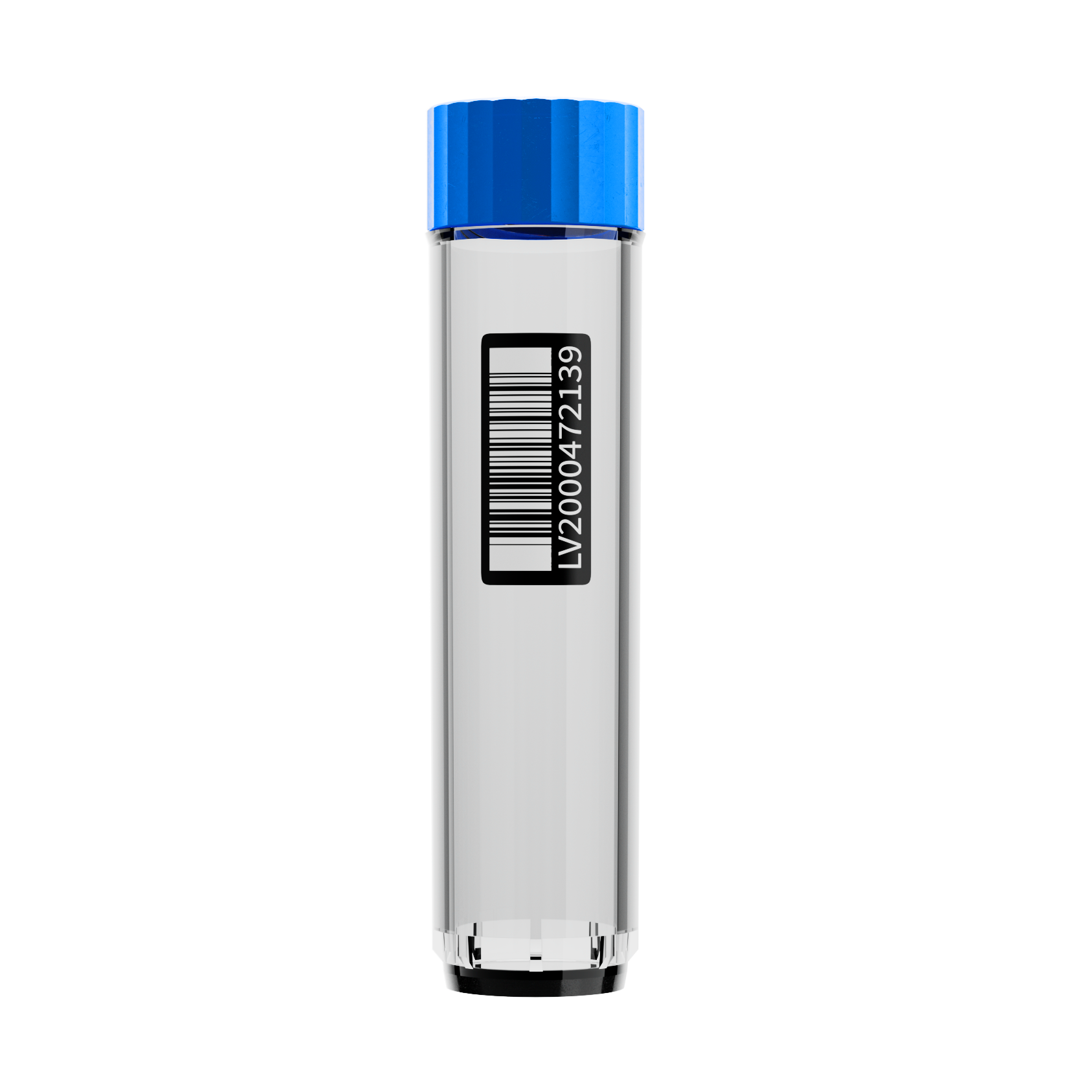

SAFE 2D tubes XXLX8000 8ml with screw cap and barcode for extremely high-volume sample storage and automation

Optional Sterilization E-Beam / ETO

Availability in Rack, Bulkware

Outer Diameter: 17.80 mm

Working Volume

with Screw Cap	8.000 µl
with Push Cap	8.000 µl

Storage Temperature

with Screw Cap	-196°C
with Push Cap	n/a

Side Code

Barcode 1D	optional
Human Readable	optional

Tube Height

without Cap	69.9 mm
with Screw Cap	72.0 mm
with Push Cap	n/a

Screw Caps

pre-capped	Yes
with Cap-Rack	Yes
Bulkware	Yes

Rack Height

non capped Tubes	70.8 mm
screw capped Tubes	72.8 mm
with Rack Lid	74.5 mm

Find Item Number

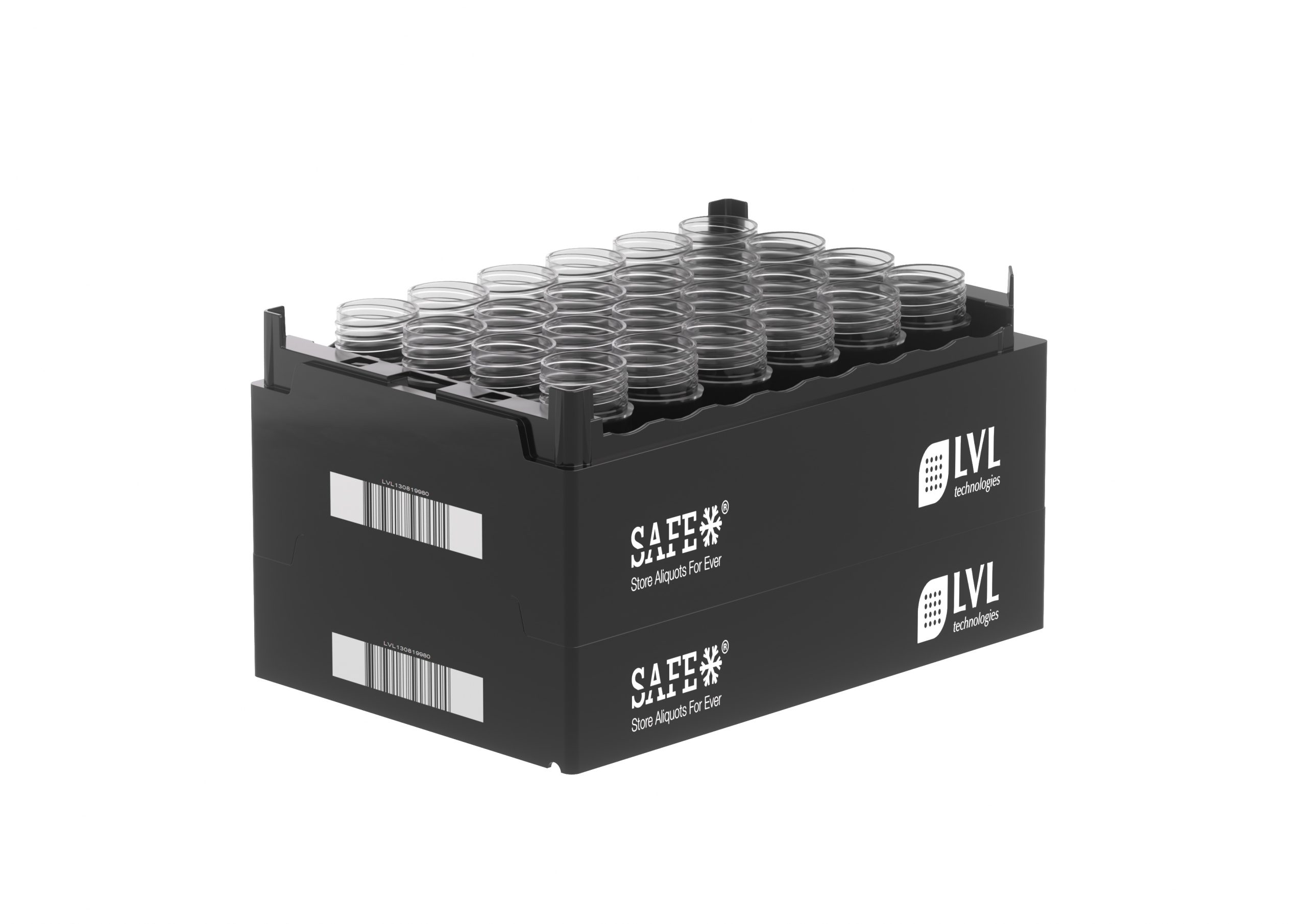

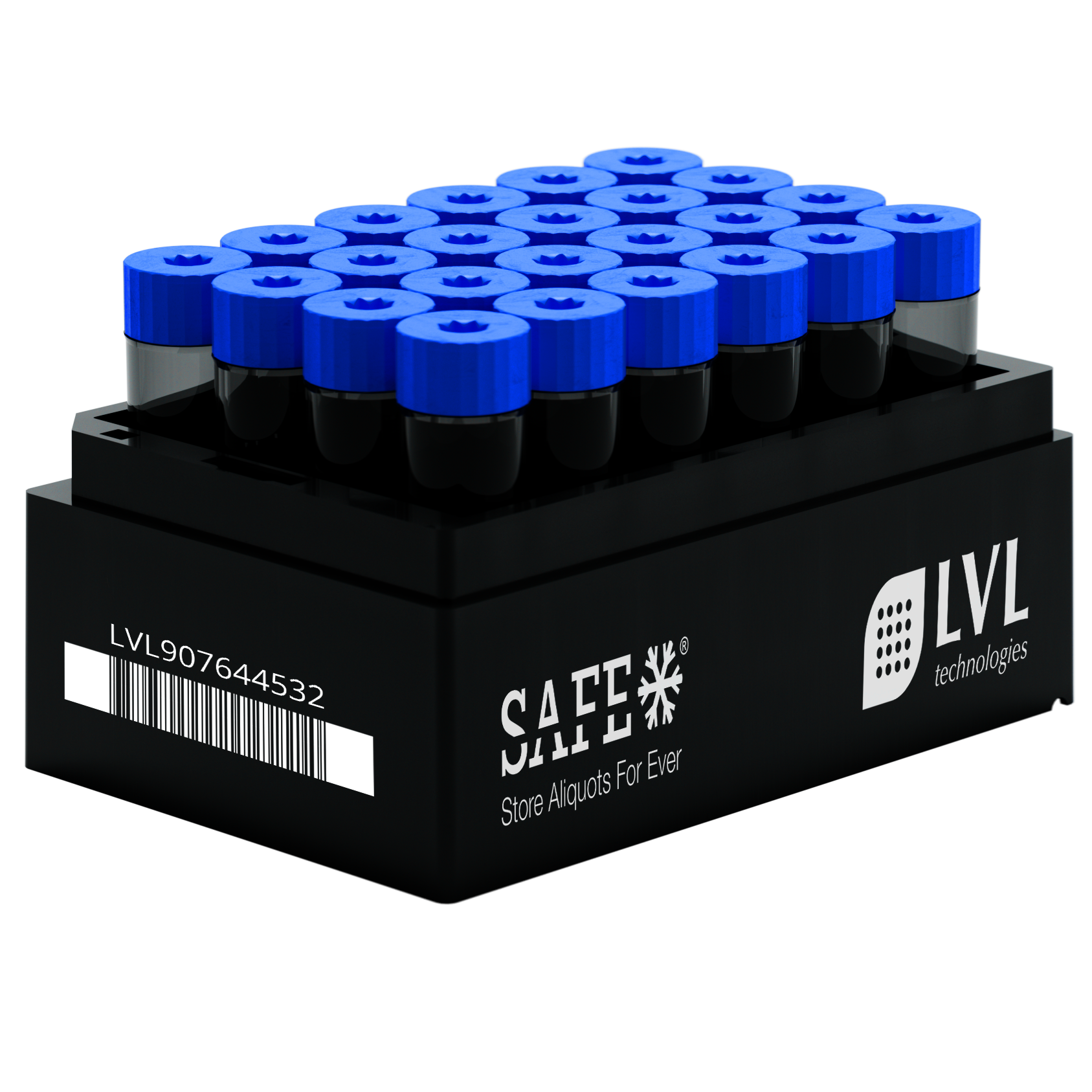

SAFE® XXLX8000 2D Tube for 8 ml Sample Storage in SBS 24 Rack

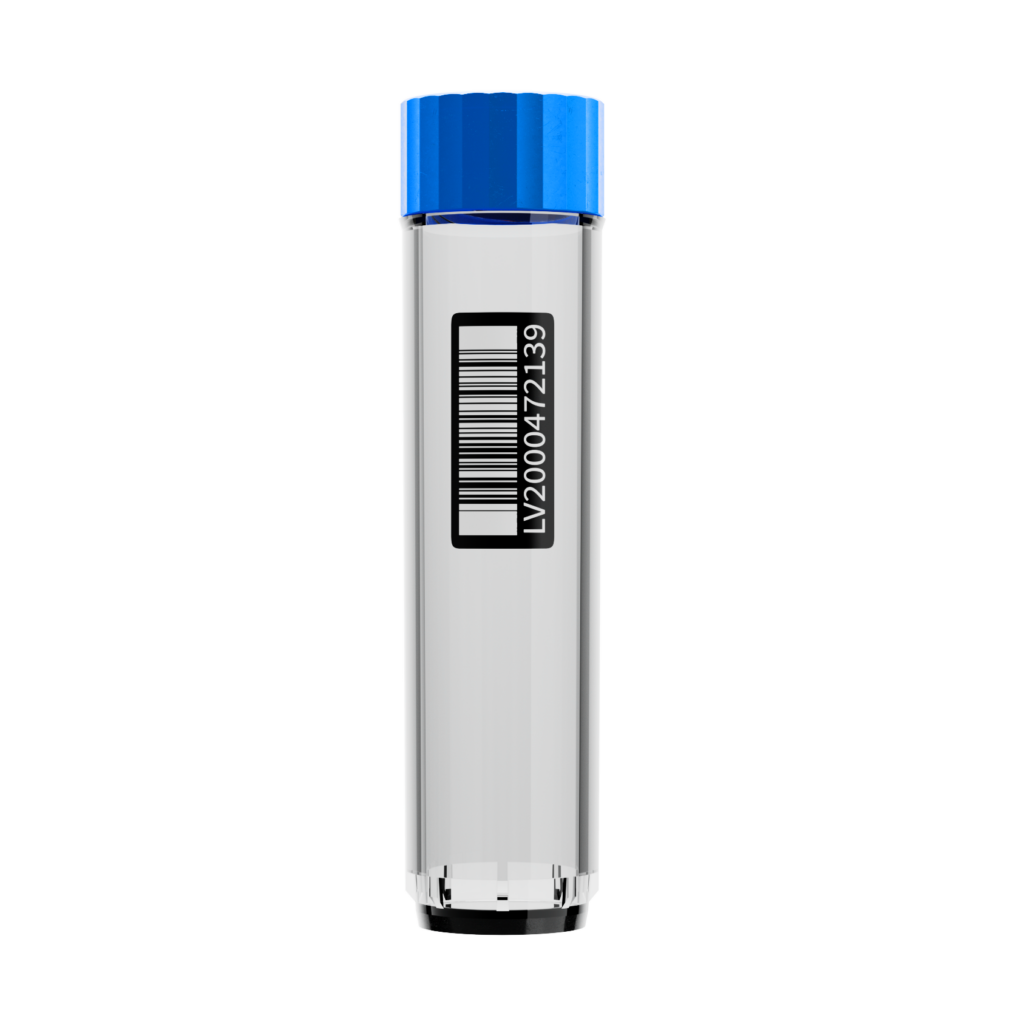

SAFE® XXLX 8000 Tube mit Schraubverschluss und Barcode für großvolumige Proben

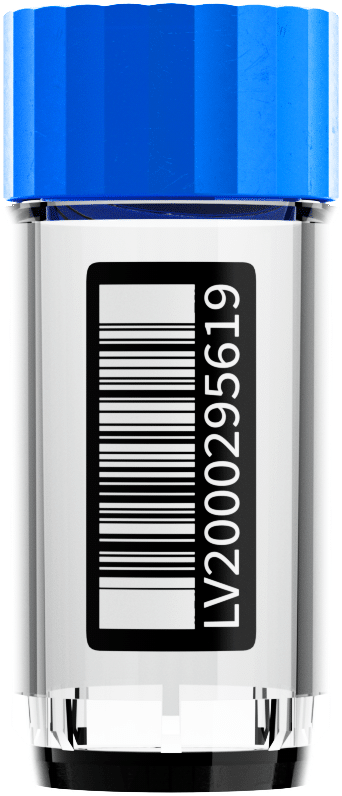

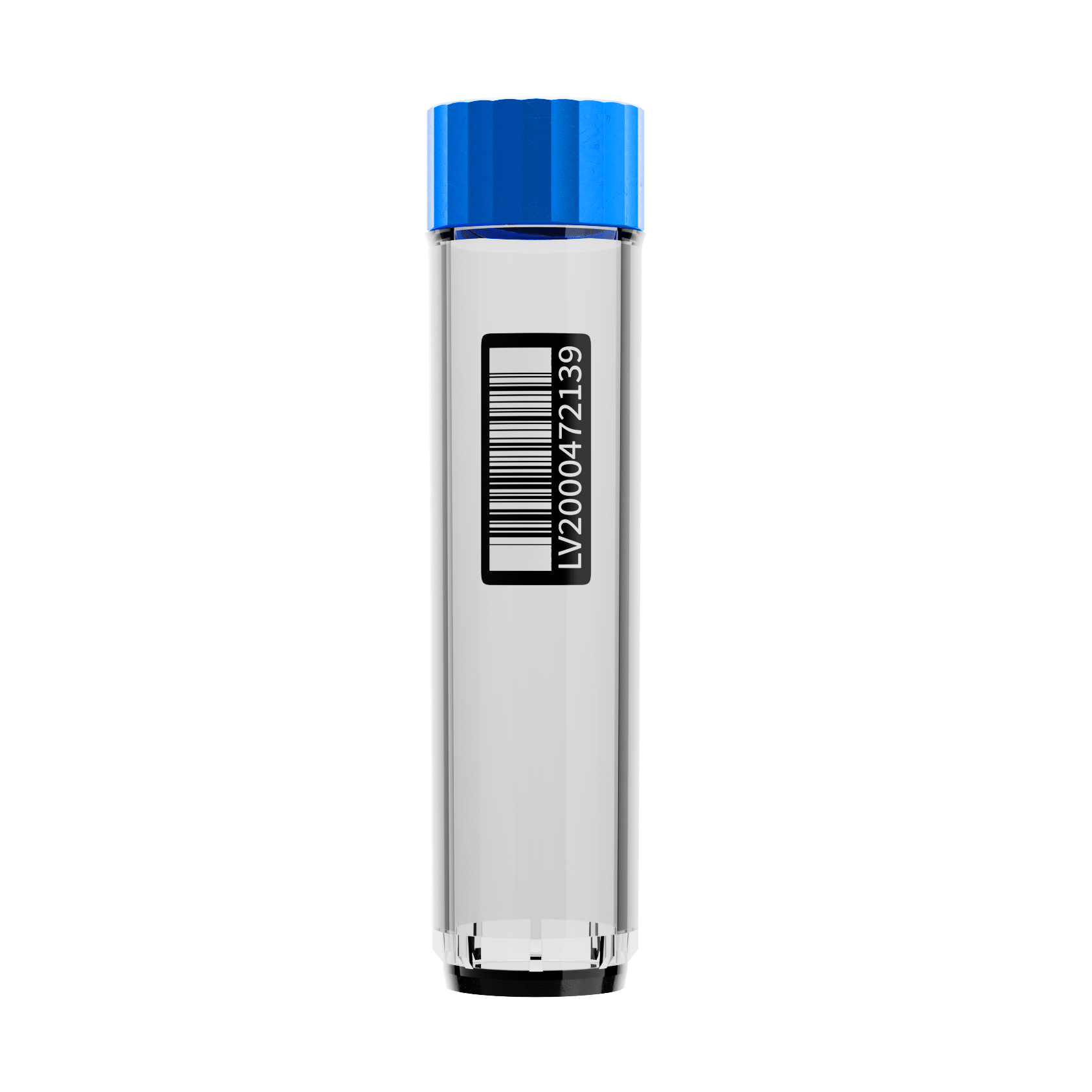

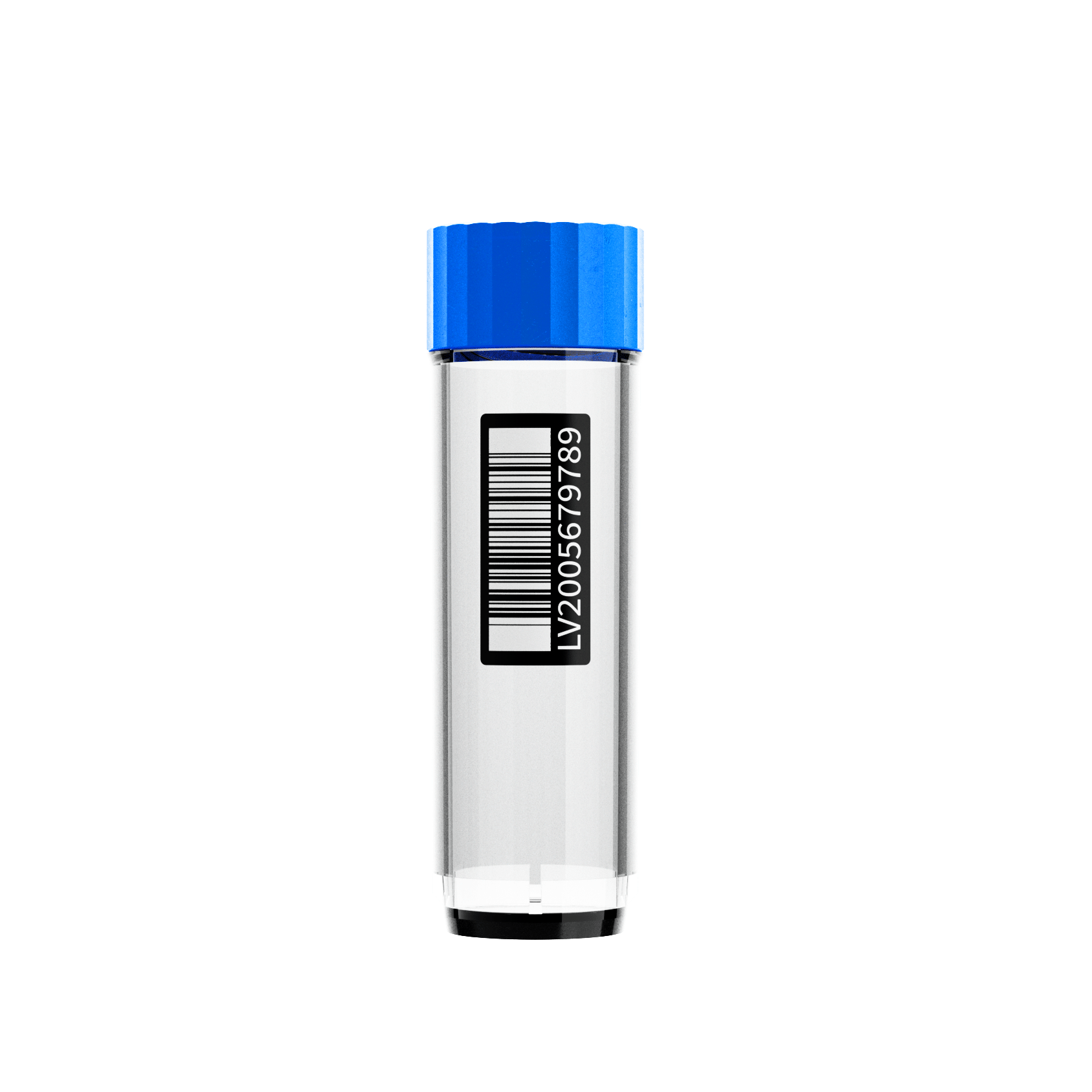

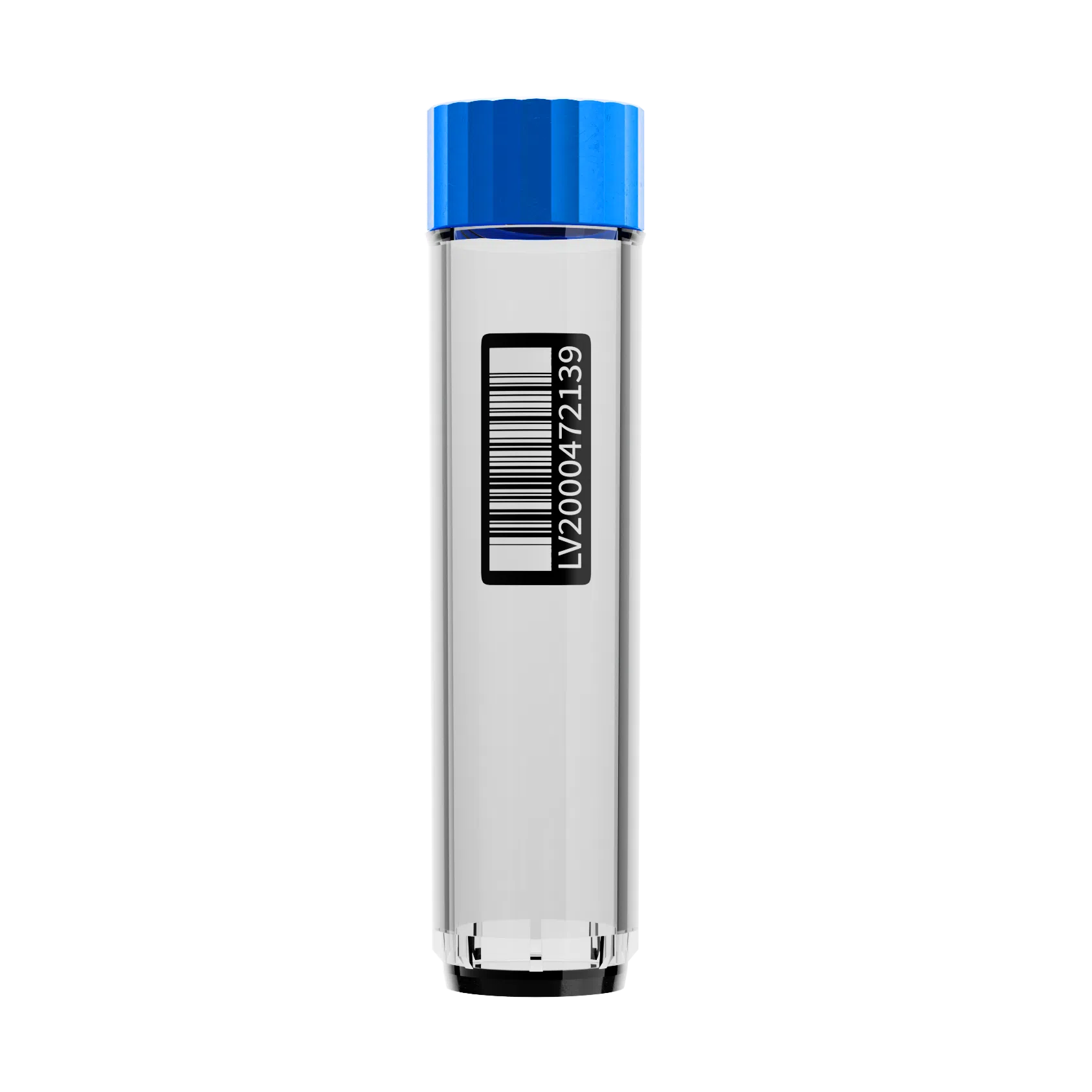

SAFE® XXLX8000 Tube with Screw Cap and Side Code

The SAFE® XXLX8000 Tube is designed for very large sample volumes with a working volume of 8,000 µl. In this version, the tube is equipped with a screw cap and side coding and is suitable for applications where high-volume samples need to be stored safely and identified clearly. Despite its size, the tube remains compatible with a standardized SBS 24 rack format.

SAFE® XXLX 8000 Tube mit Deckel, ohne seitliche Beschriftung

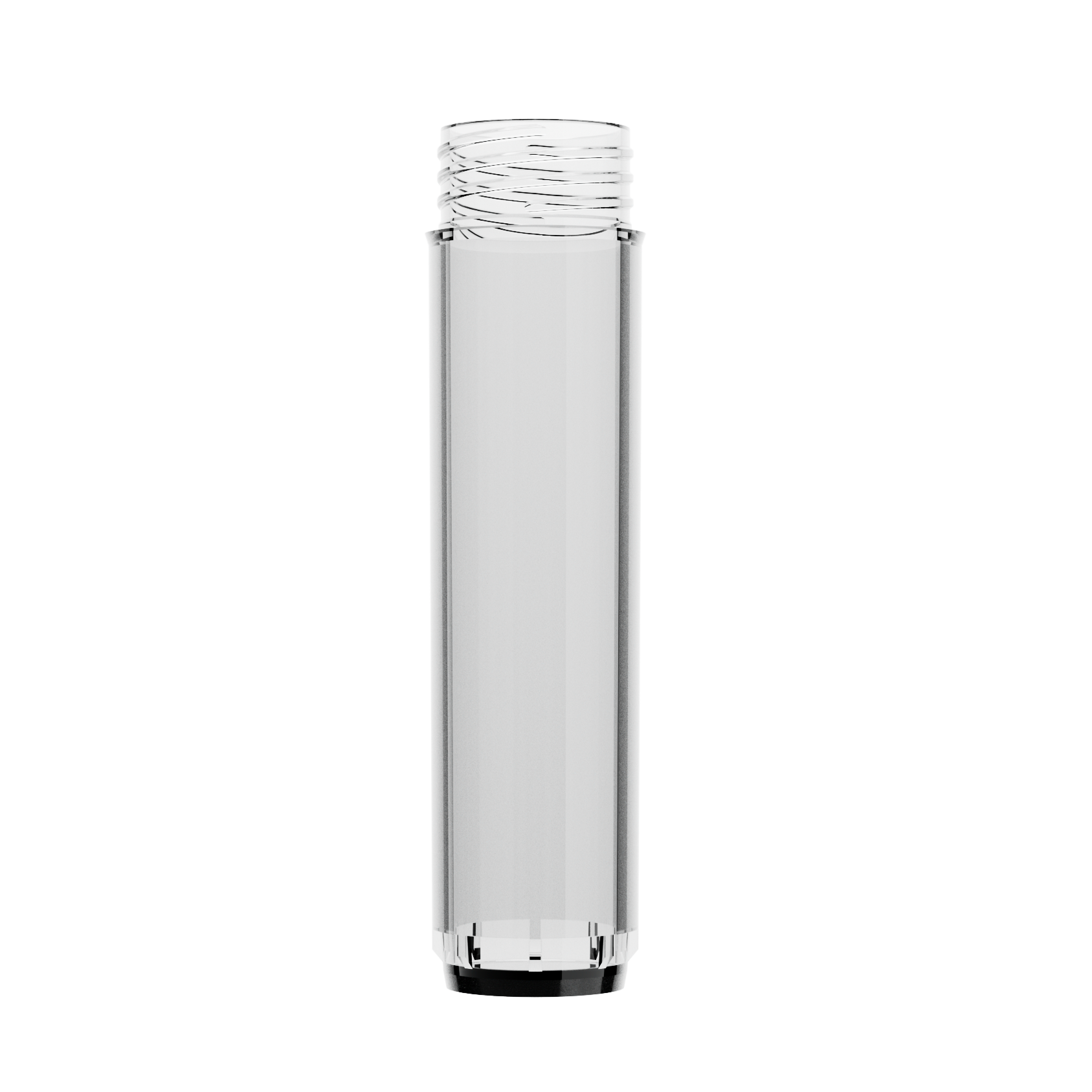

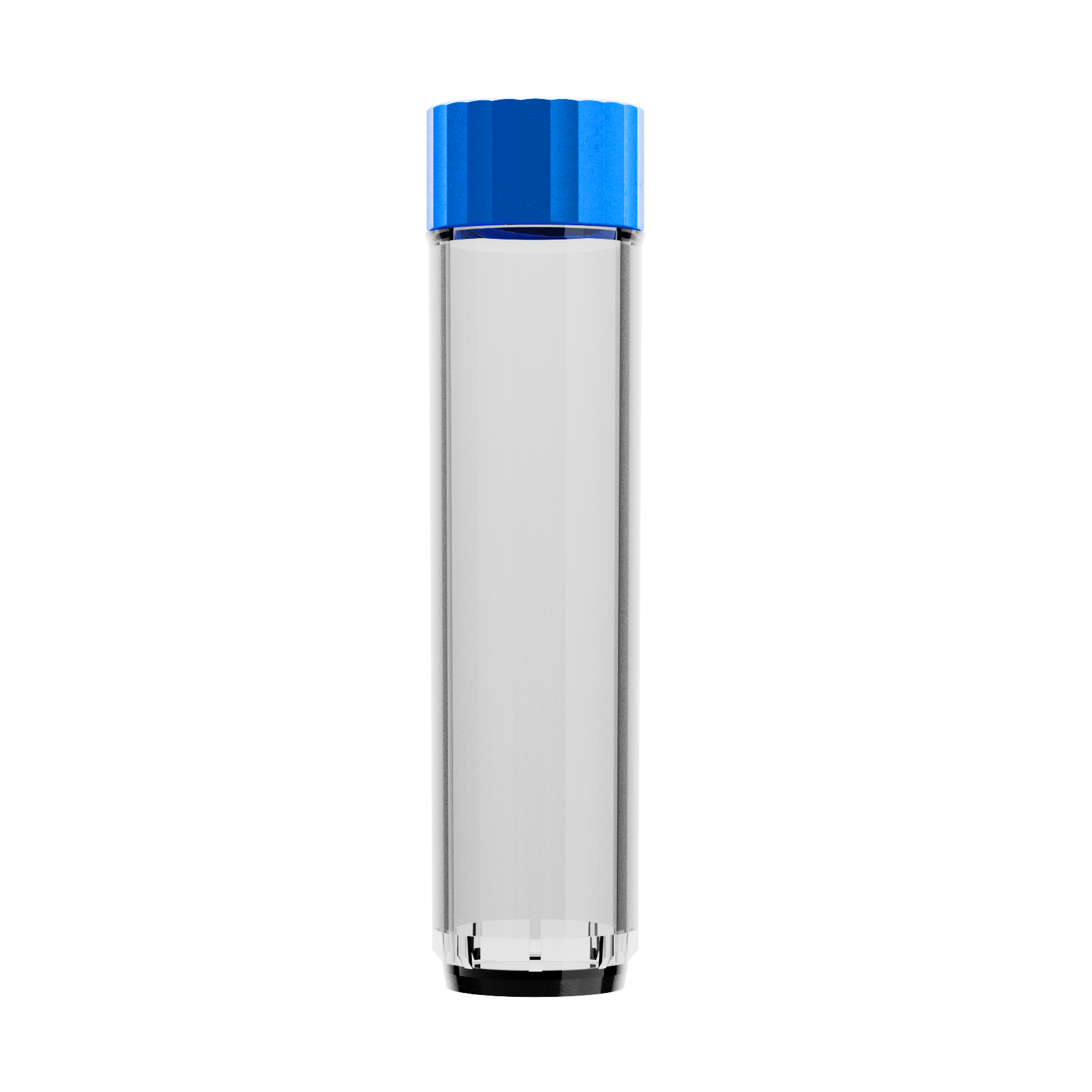

SAFE® XXLX8000 Tube without Visible Side Code

This version of the SAFE® XXLX8000 Tube shows the tube in a clean design without visible side coding. Unique identification is still provided by the 2D code on the bottom of the tube. This makes the tube suitable for structured storage workflows with very large sample volumes, even when no additional visible side marking is required.

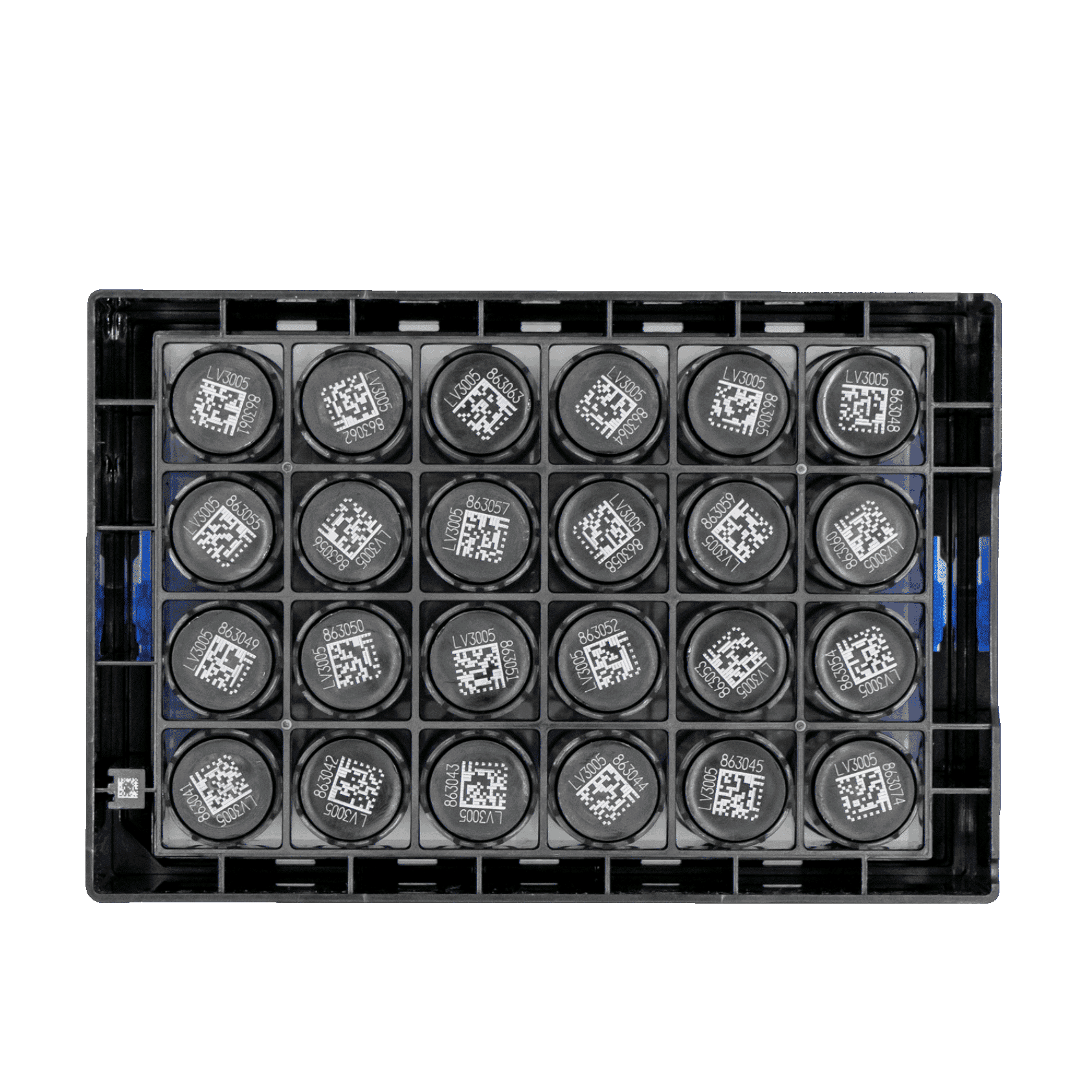

2D Codes of SAFE® XXLX8000 Tubes in SBS 24 Rack

The underside of the SBS 24 rack shows the 2D codes of the inserted SAFE® XXLX8000 Tubes. This illustrates how each sample can be uniquely identified and automatically read directly in the rack. Especially for large-volume samples, this layout supports reliable traceability and clean integration into automated storage and identification workflows.

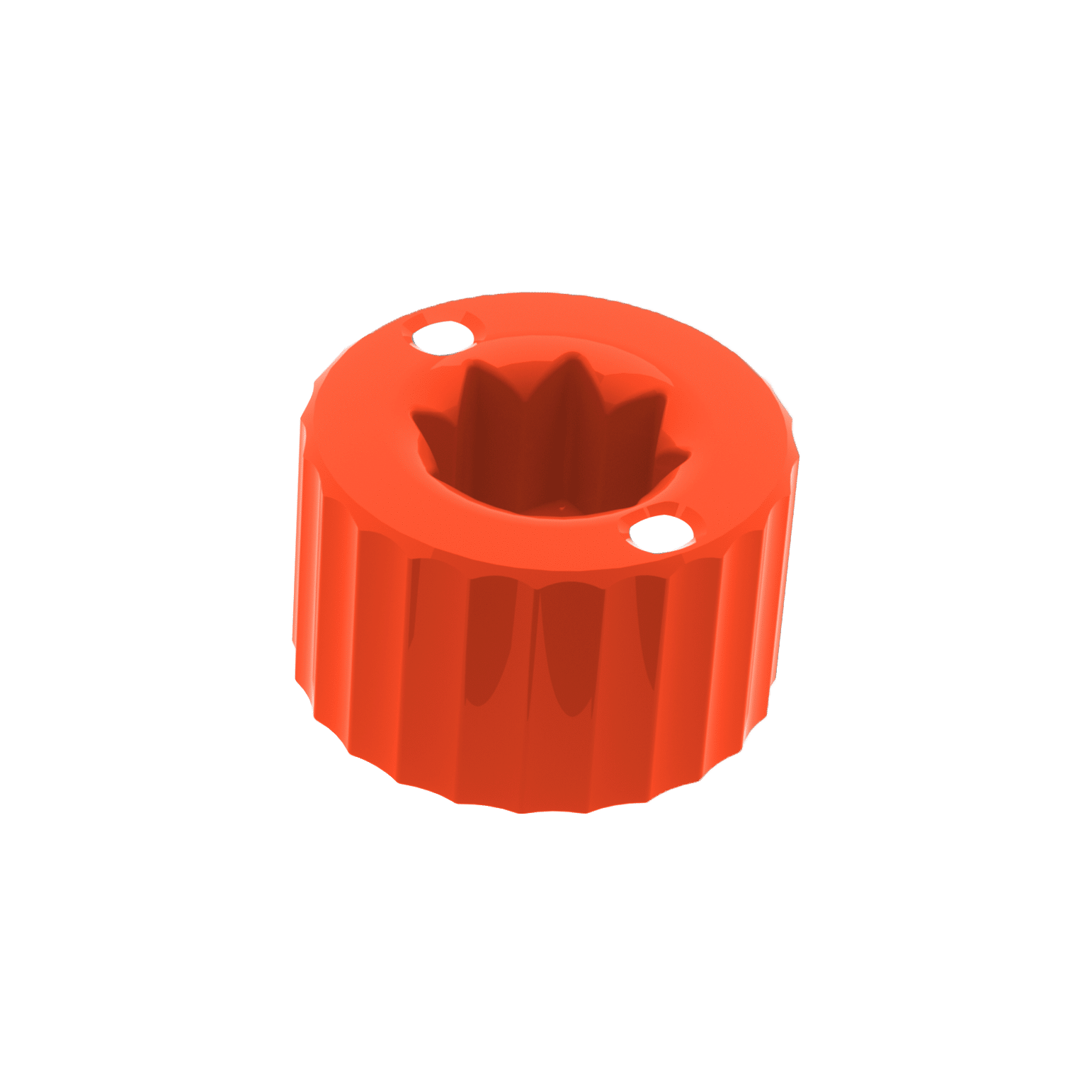

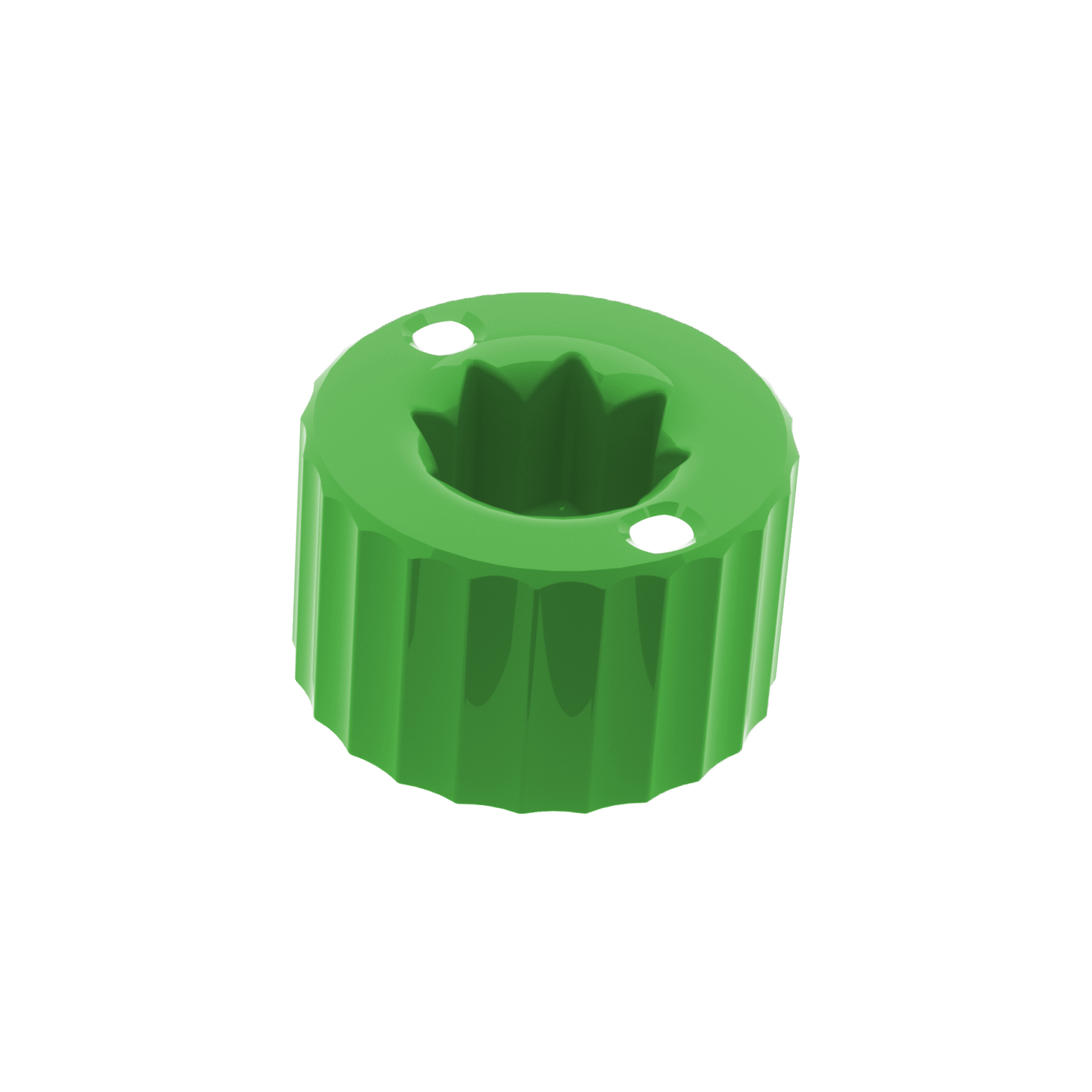

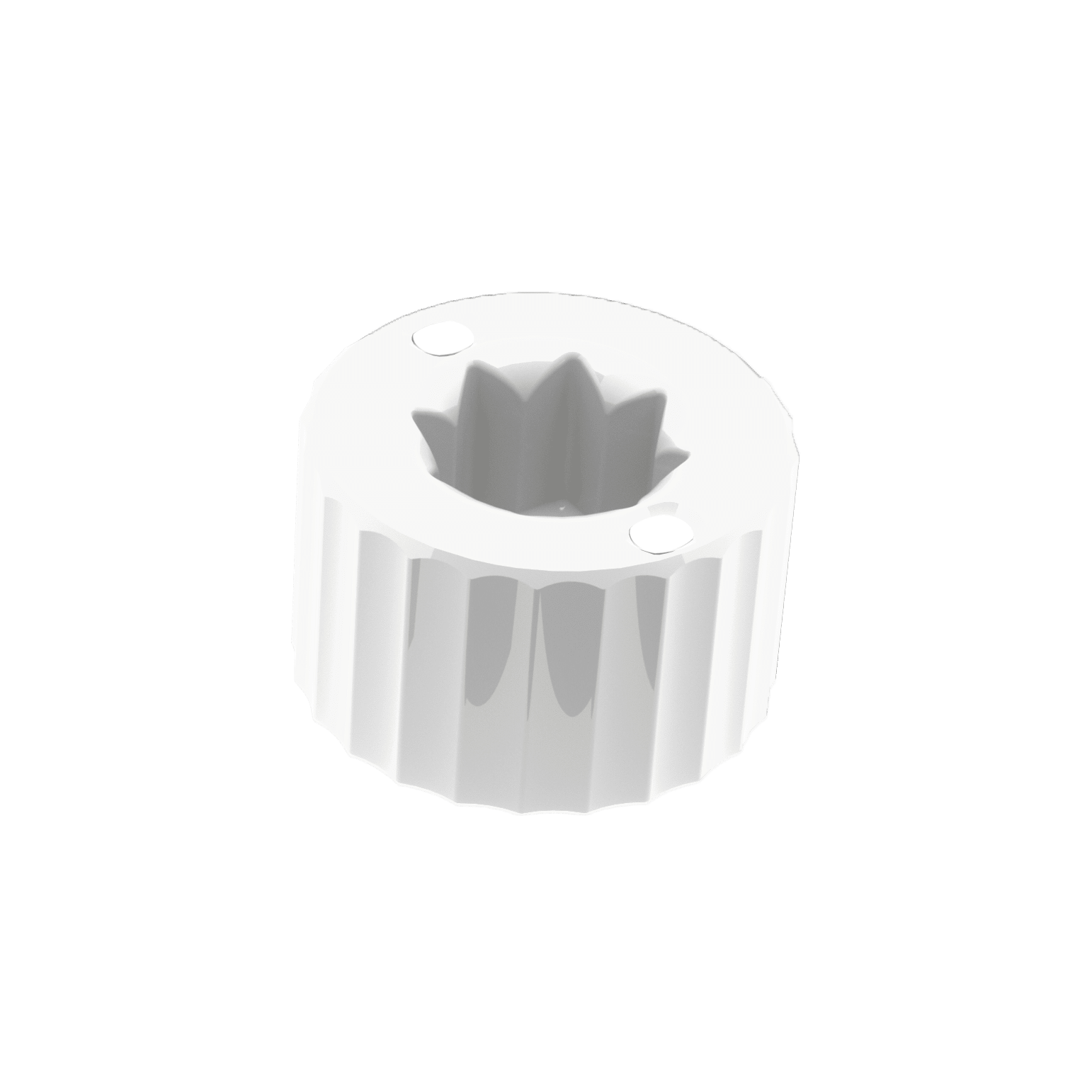

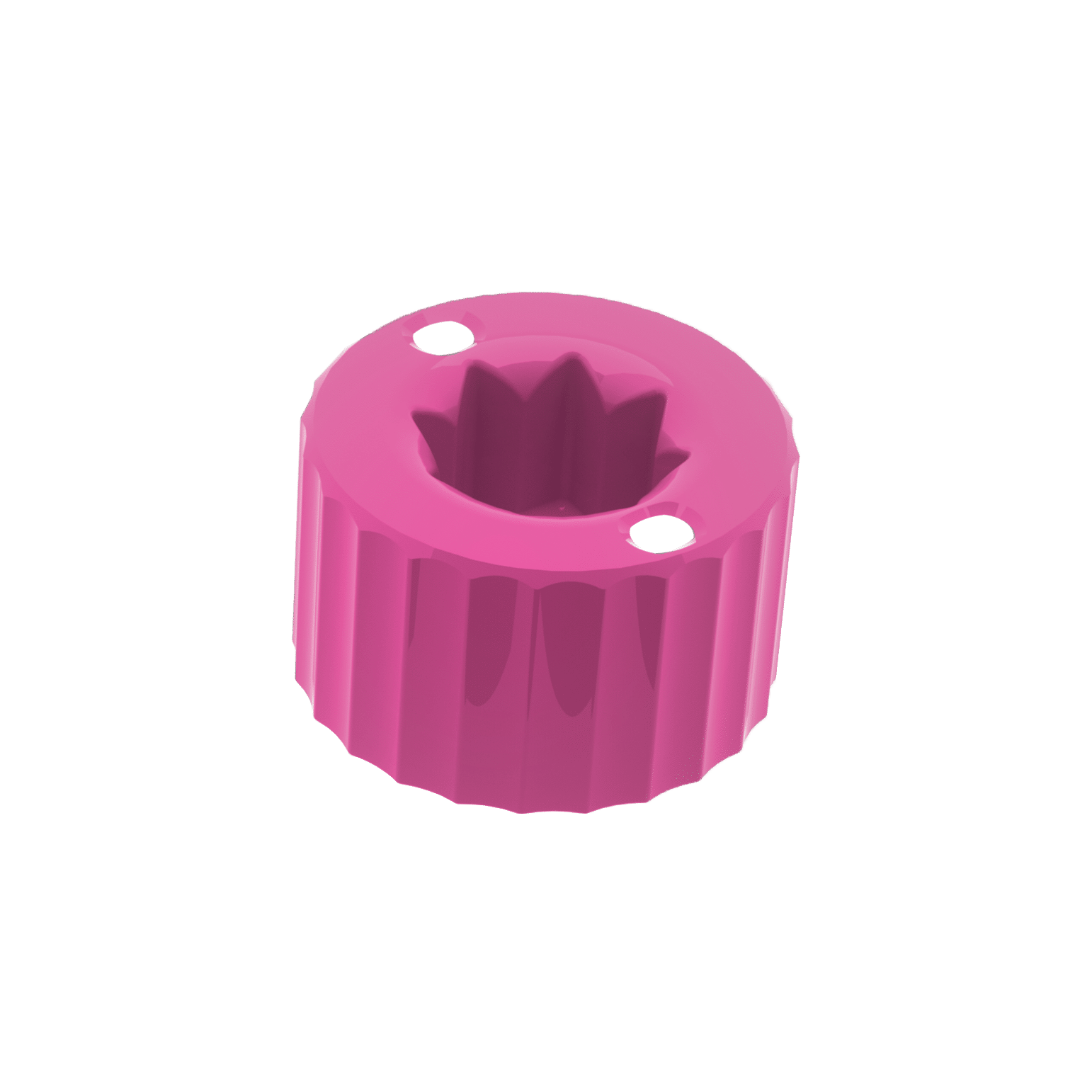

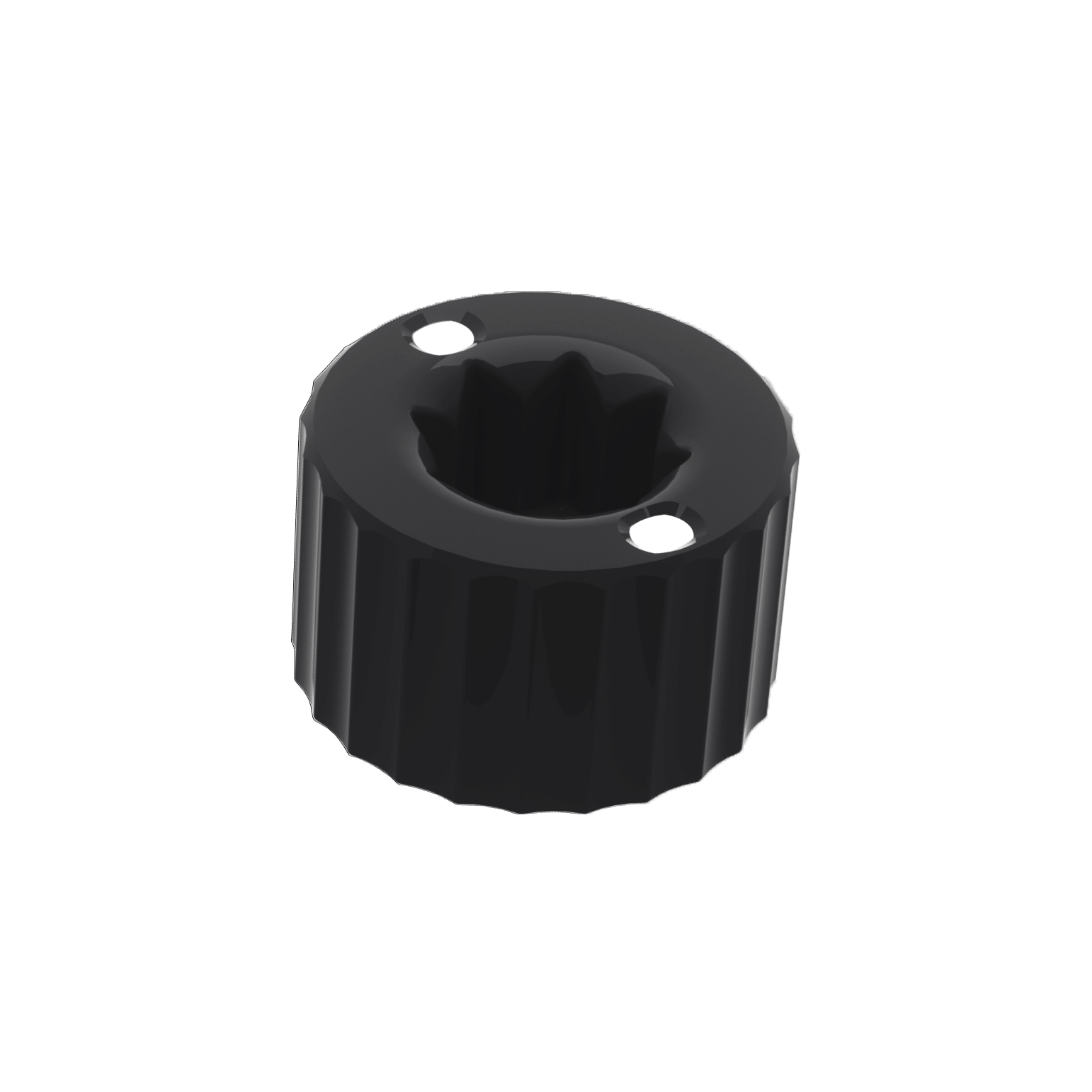

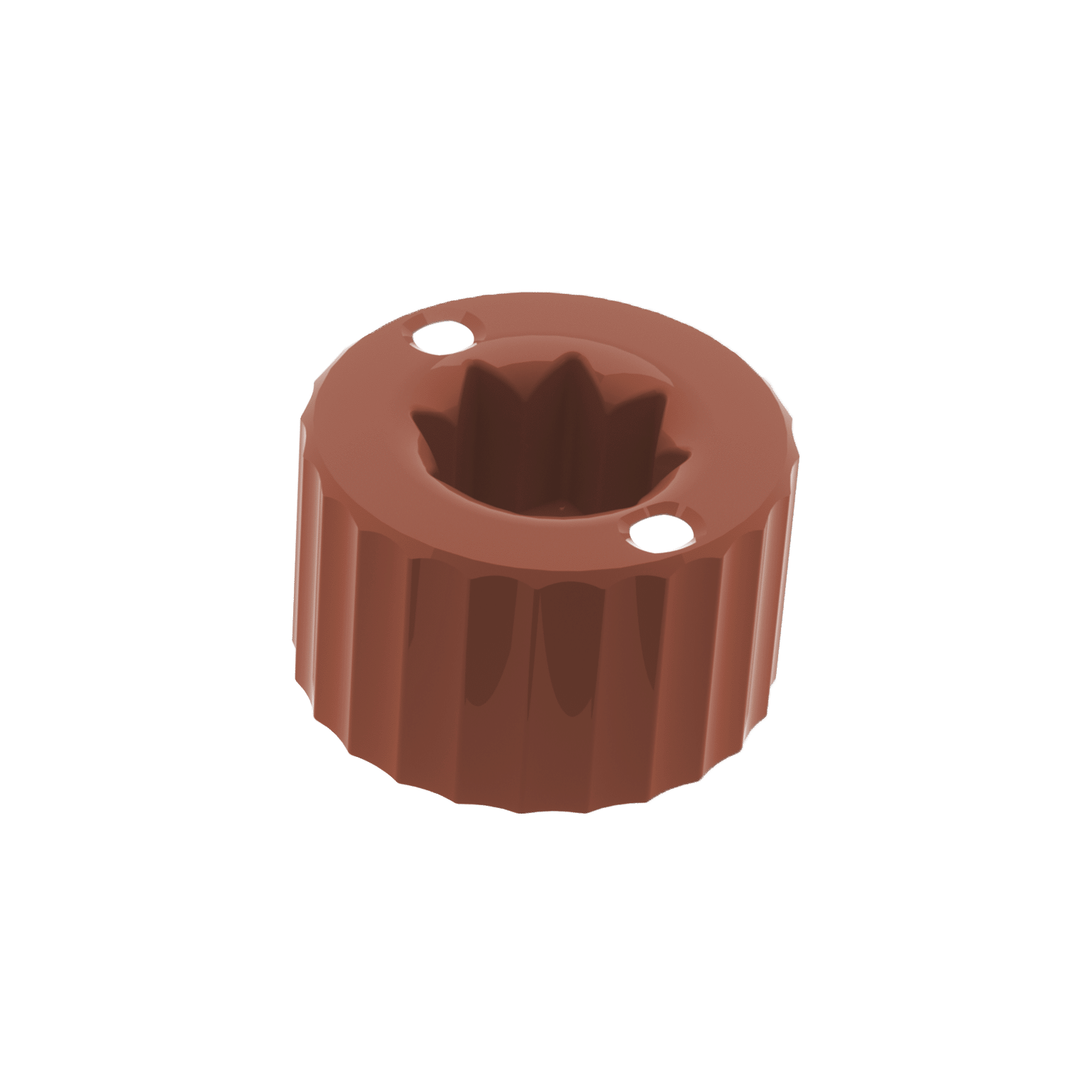

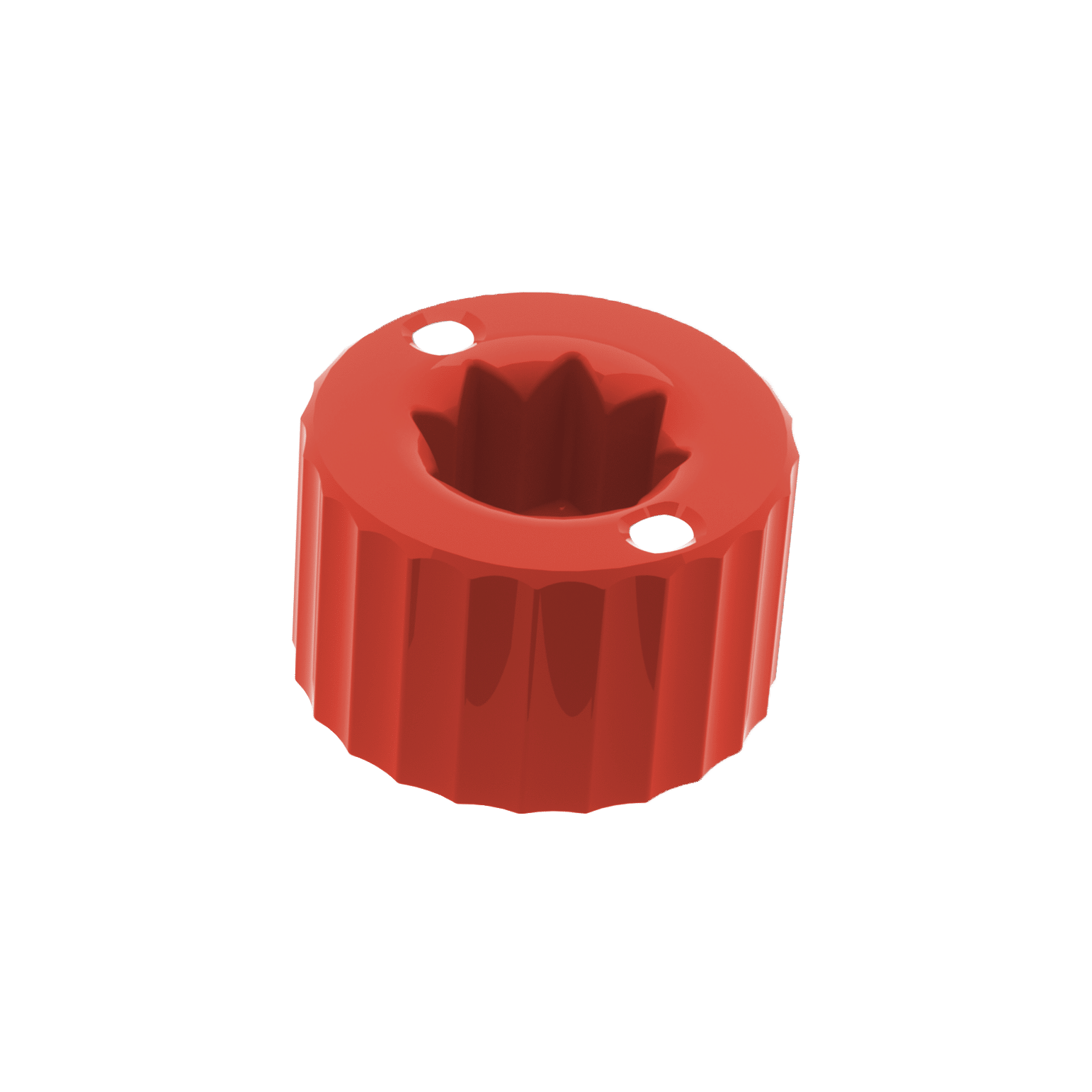

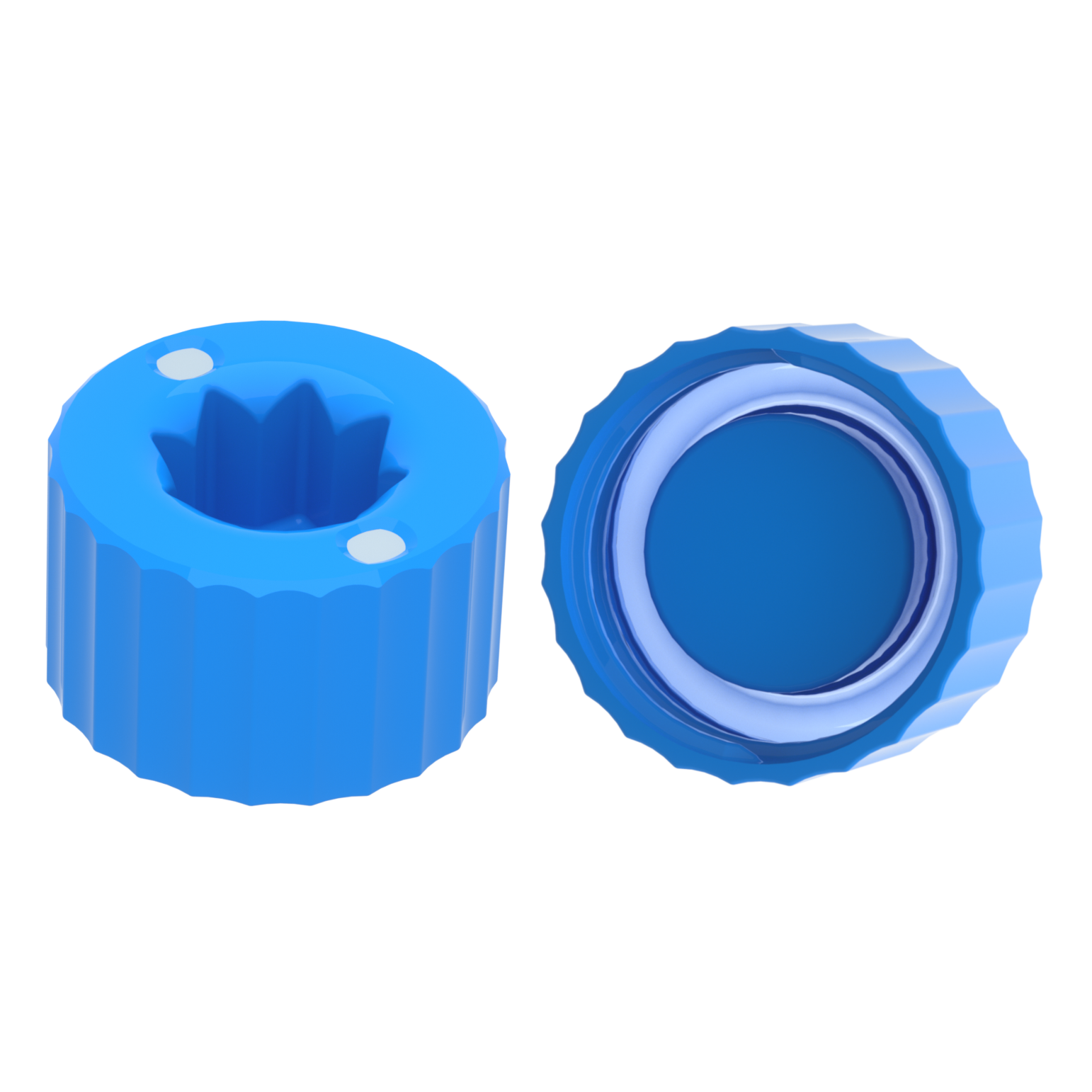

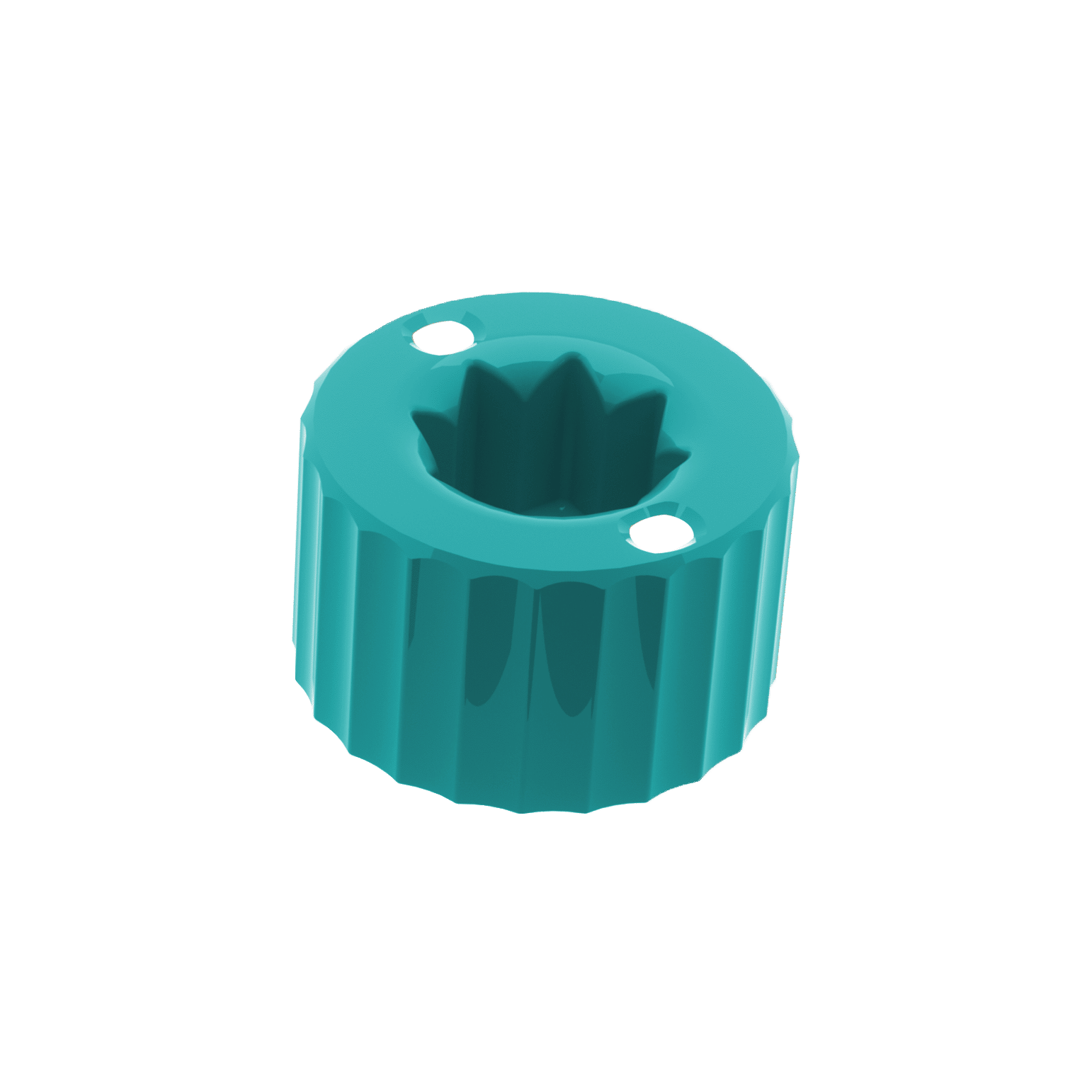

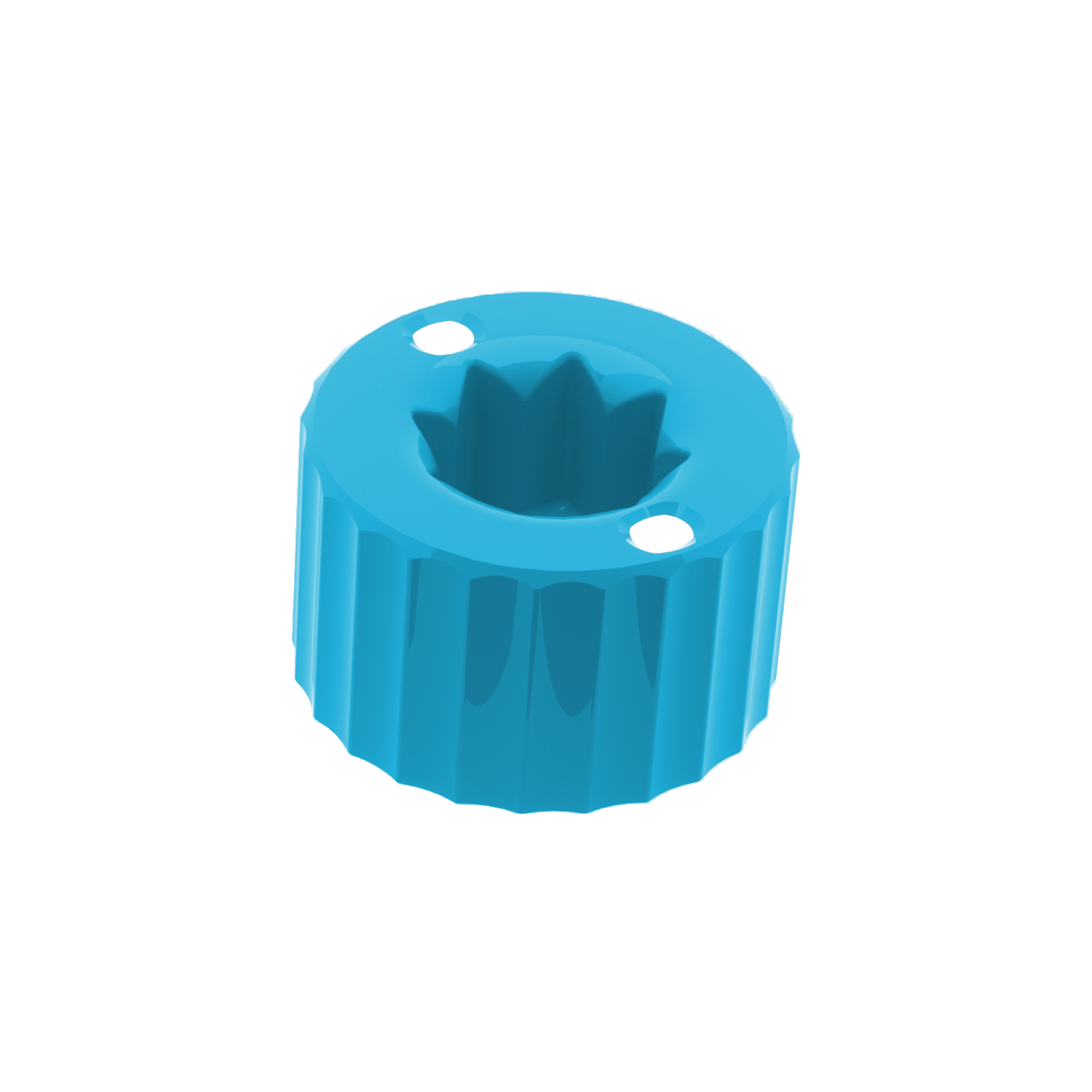

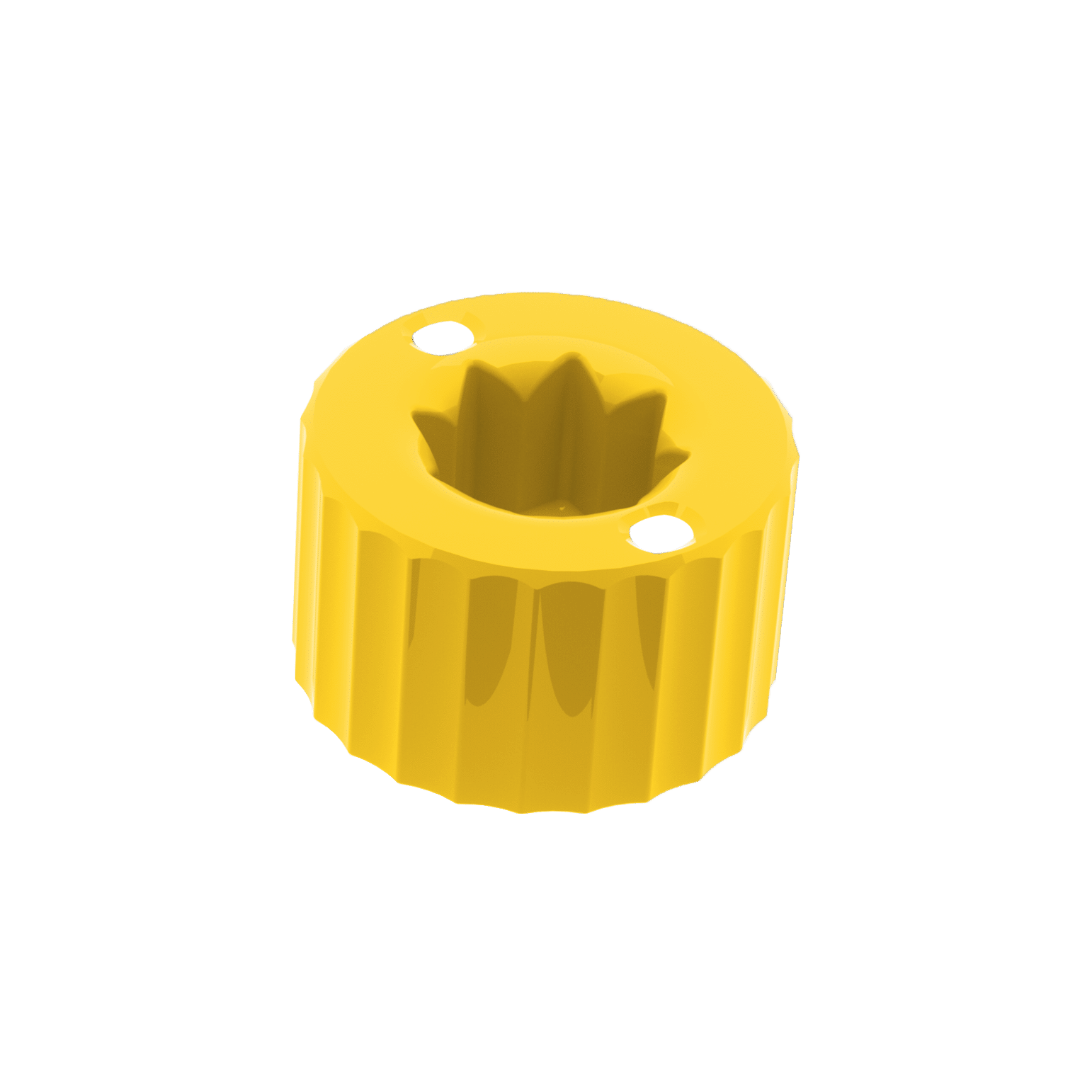

Screw Caps in all common colors available!

Suitable for the following SAFE® devices and accessories

LVL SAFE® Capper Decapper as a manual laboratory device for safe and precise capping and decapping of 2D sample tubes with 4 6 or 8 channel head suitable for laboratory automation biobanking and manual sample processing

Link to the product

4 Channel Capper

LVL SAFE® vollautomatischer 96-Kanal Capper/Decapper für simultanes Öffnen und Verschließen von 2D Tubes

Link to the product

24-Channel Capper

SAFE®-SBS-Rack-Reader-for-fast-and-precise-scanning-and-decoding-of-2D-tubes-in-SBS-racks-

Link to the product

LVL Rack Reader

LVL SAFE® 2D Tube Laser Marker für die präzise und flexible Lasercodierung von SAFE® 2D-Tubes im Labor

Link to the product

TLM 864

LVL SAFE® manueller 1-Kanal Capper / Decapper aus Aluminium für das manuelle Öffnen und Verschließen einzelner 2D Tubes

Link to the product

Handheld 1-Channel Capper

LVL SAFE® Single Channel Reader for fast and precise scanning of individual 2D and QR coded sample tubes suitable for laboratory automation biobanking applications and reliable manual sample identification

Link to the product

Single Tube Reader

XXLX 8000 Rack Version 2 als hochwertiges Racksystem zur strukturierten und platzsparenden Lagerung von SAFE® Probenröhrchen in Laboren Biobanking Anwendungen und Ultratiefkühlschränken zur effizienten Probenorganisation und sicheren Langzeitlagerung

Link to the product

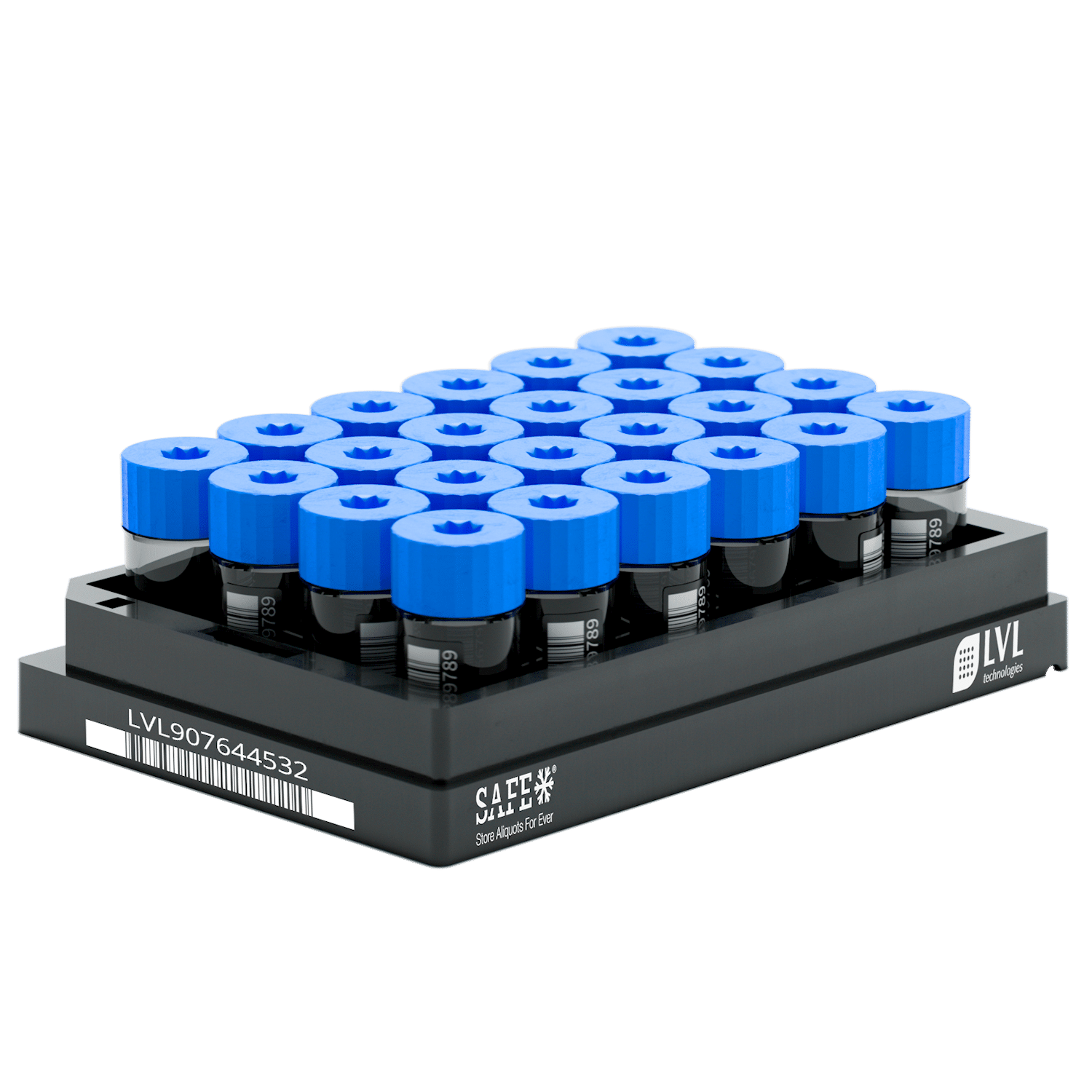

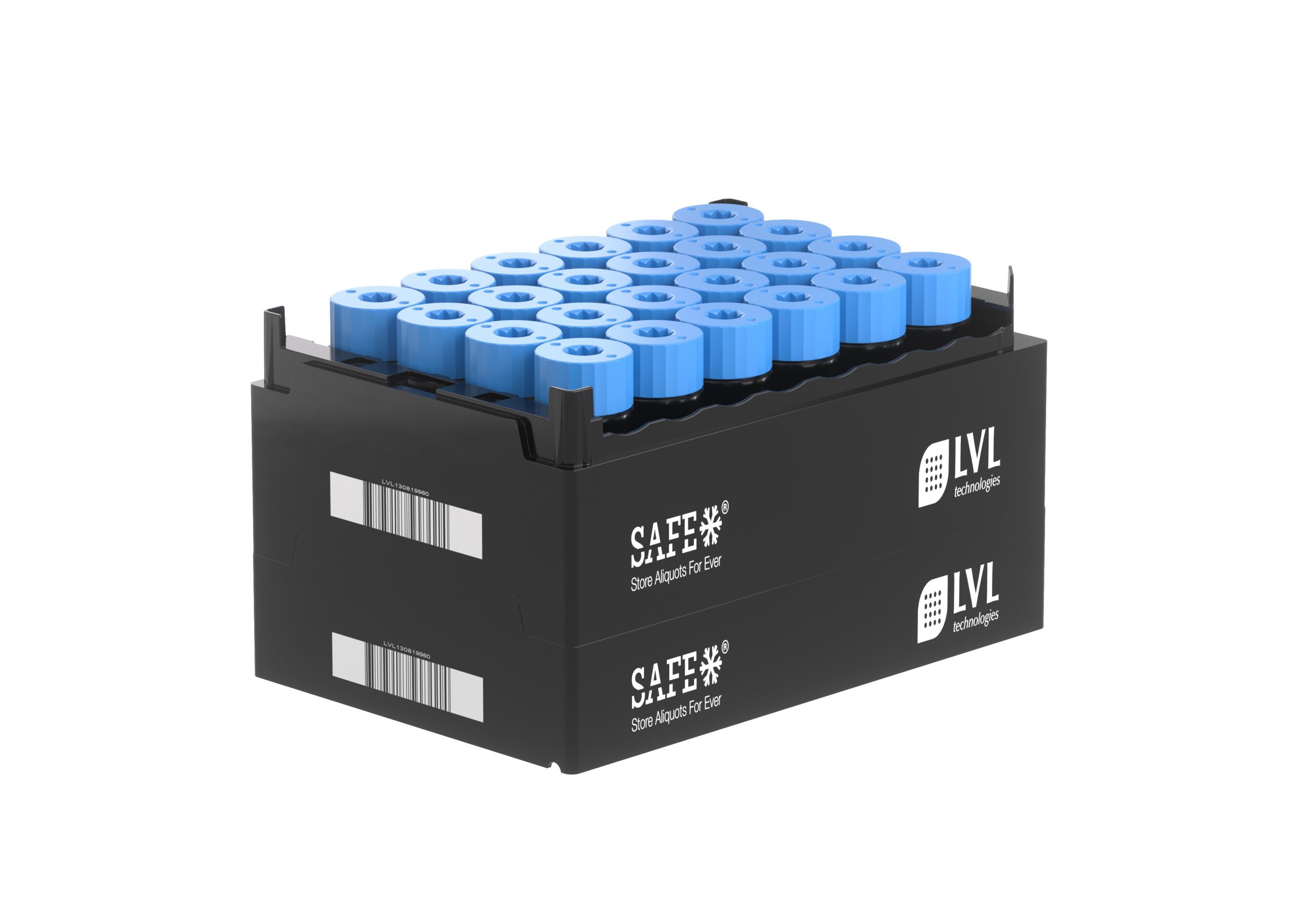

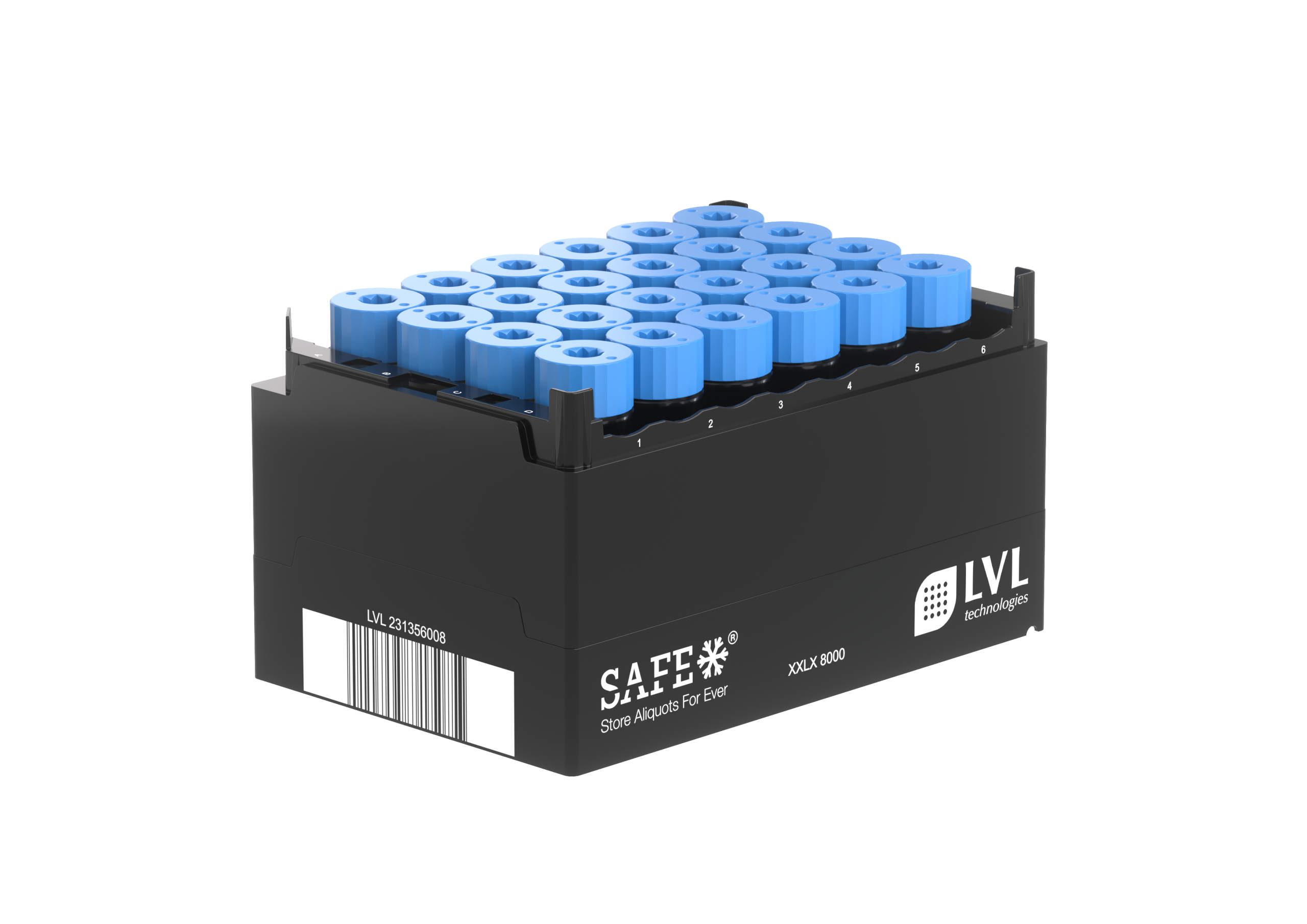

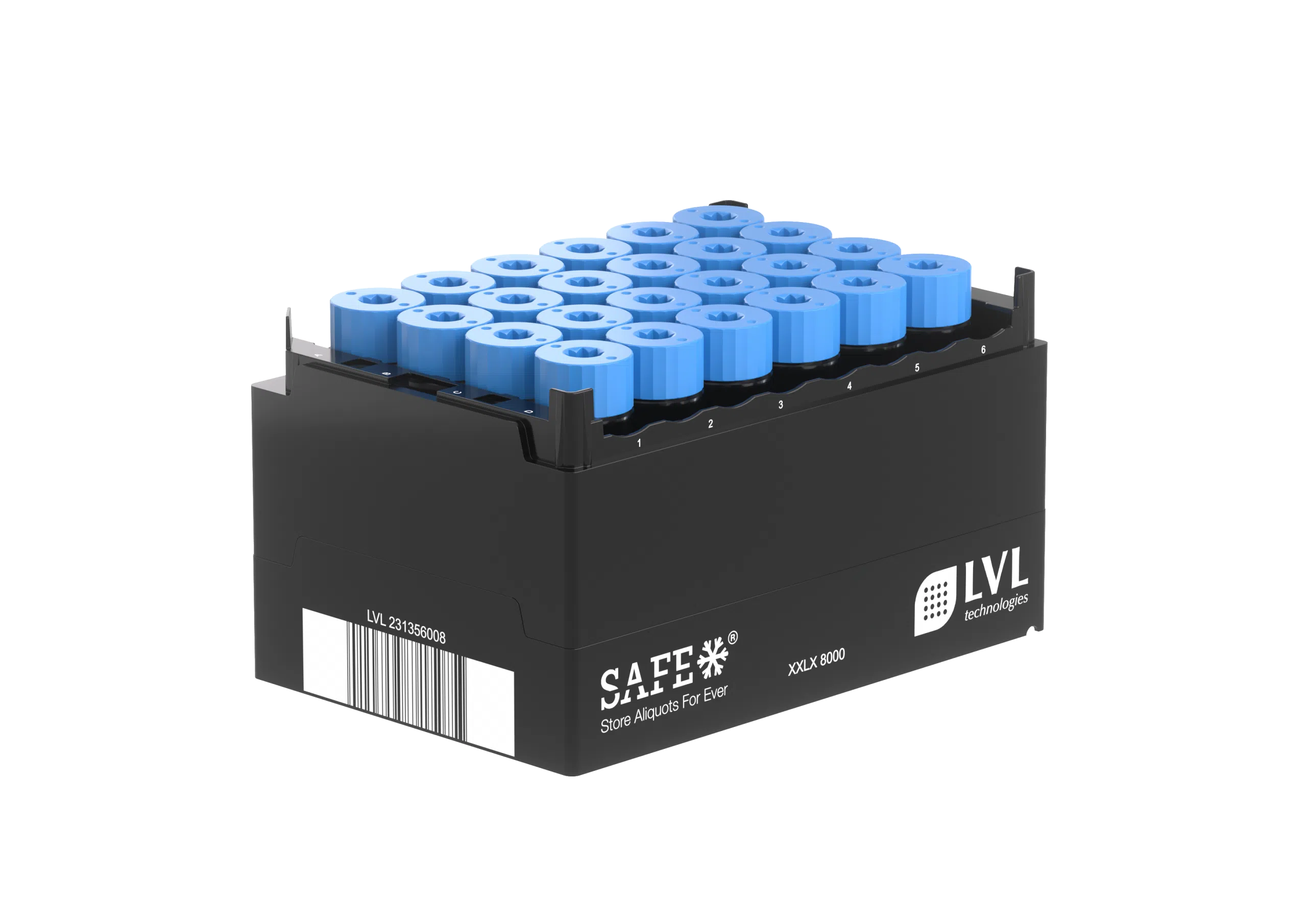

LVL SBS 24 Rack with Tubes

LVL Racksysteme mit mehreren SAFE® Tube Racks zur effizienten Nutzung von Ultratiefkühlschränken

Link to the product

Rack Systems

Link to the product

Defrost Roll

SBS 24 Leerrack als leeres Labor Rack zur flexiblen Bestückung mit 2D codierten Probenröhrchen für Laborautomation Biobanking und strukturierte Probenorganisation in Gefrierschränken und Laborumgebungen

Link to the product

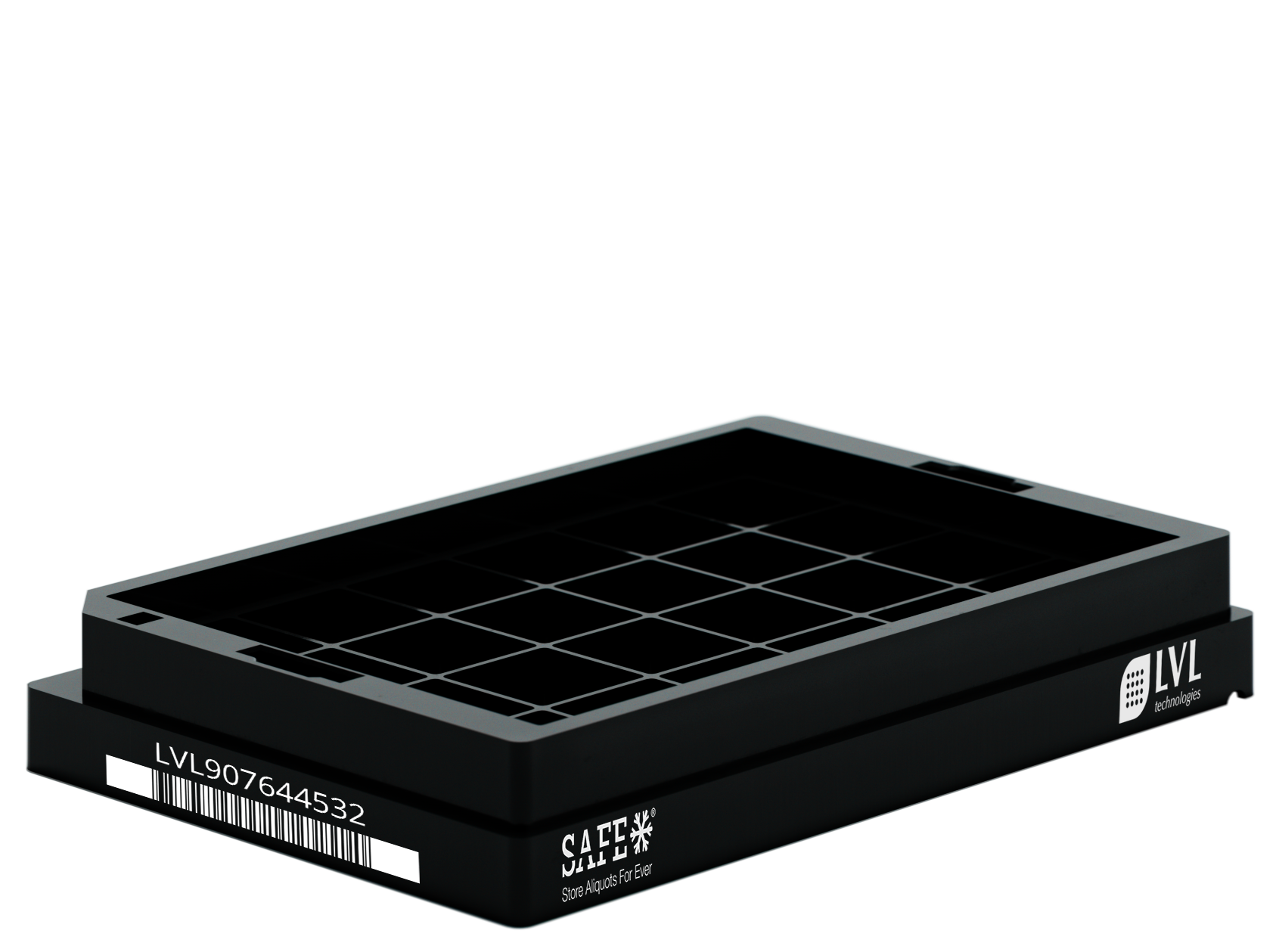

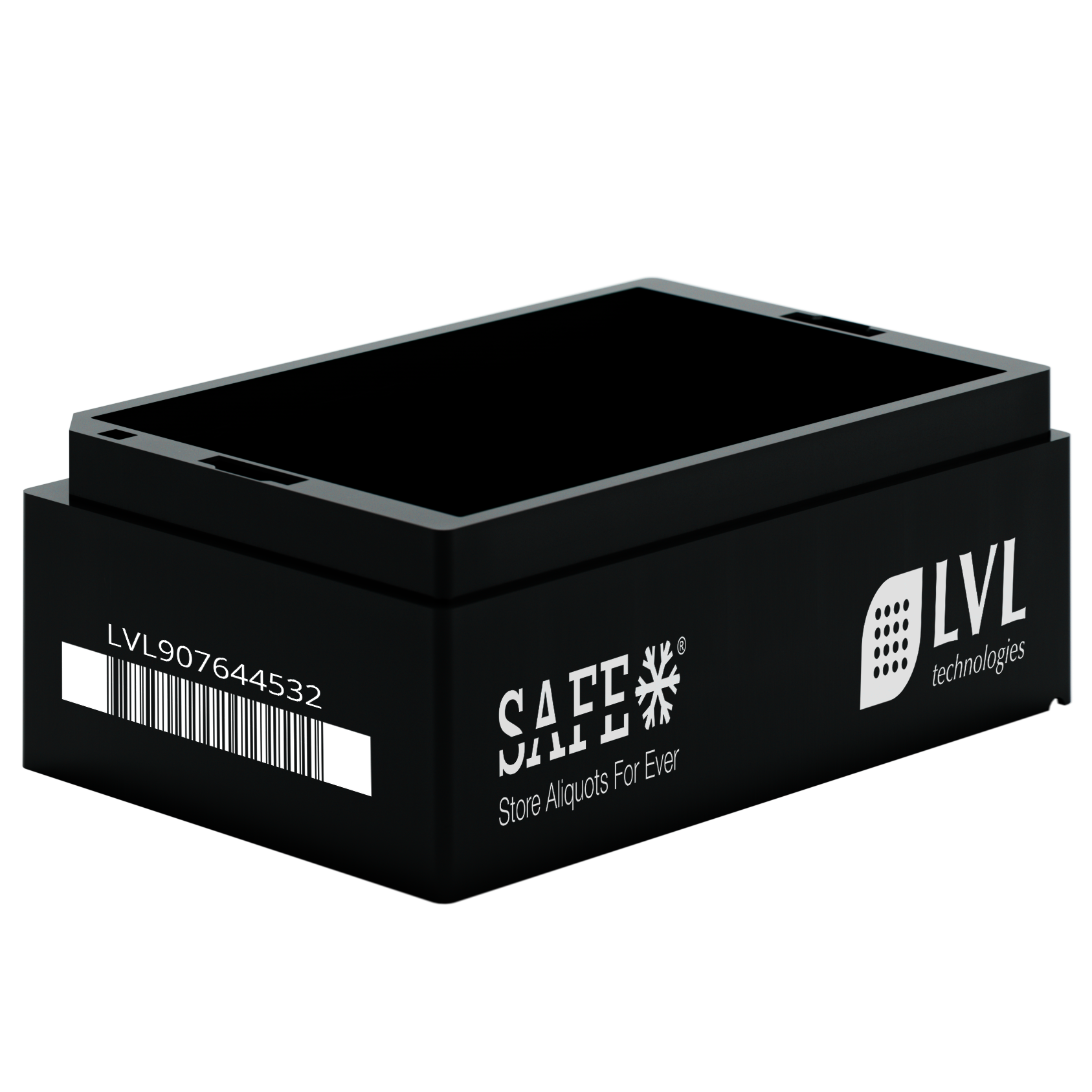

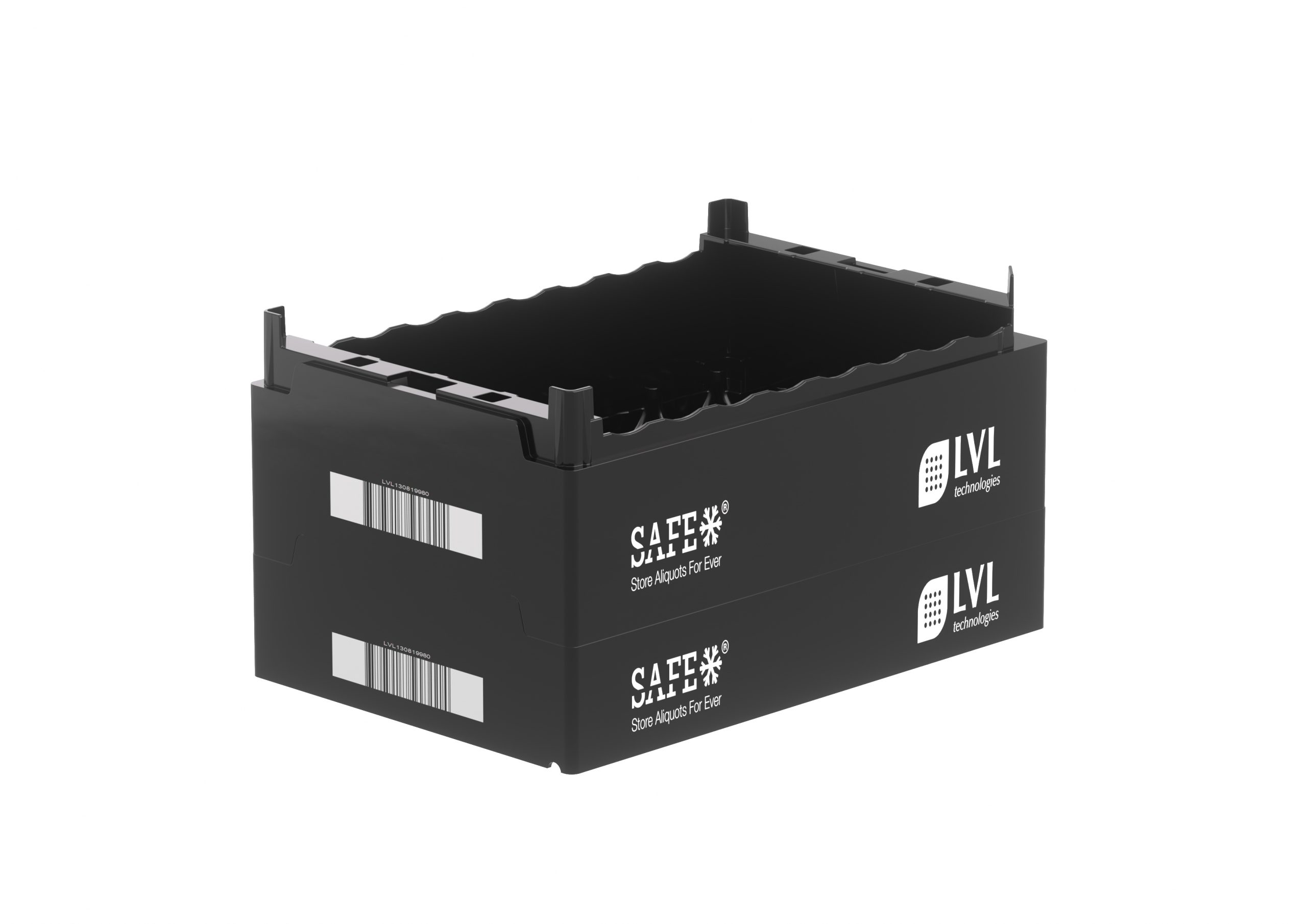

LVL SBS 24 Empty Rack

SAFE® RACKS

SAFE® YOU CAN TOUCH

Das LVL SAFE® Sample Pack enthält eine Auswahl an SAFE® Tubes und Racks zur Präsentation des modularen Probenmanagement-Systems. Ideal für Produktvorführungen, Tests und Kundendemonstrationen im Laborbereich. Zeigt die Vielfalt und Qualität der LVL SAFE® Lösungen für sicheres und effizientes Probenhandling.

Order the LVL Sample Pack now with sample tubes in the following volumes:
300µl – 8ml, including the new SAFE® Rack GEN3

Learn more about LVL SAFE® products

The LVL Tube Laser Marker TLM 864:
Although the automation-friendly Data-Matrix code on the bottom of storage tubes has been standard for many years—and has greatly simplified sample handling—many users want to mark the tubes with their specific information. At the same time, they want to move away from time-consuming and unreliable labeling methods.

For this need, LVL has developed a fully automatic tube laser marker. The TLM 864 can automatically laser-mark SAFE® tubes in SBS 96, SBS 48, and SBS 24 formats from two sides and link the information in a database with the 2D code previously lasered during production. Up to 500 tubes per hour can be coded from nine SBS/ANSI positions.

LVL`D UP – What’s New, What’s Different?

A completely redesigned automation-friendly rack and tube take our long-term storage tubes to the next level. Join us and upgrade your sample storage. In addition to more than 13 different cap colors and countless possibilities for customizing tube and rack coding, we adapt your sample storage system to your needs and preferences.

Latest News from SLAS 2023 in Boston! – Our Product Manager Waldemar Janzen explains the functions of the TLM864.

SAFE® XXLX8000 SAMPLE TUBES - STORAGE FOR LARGE SAMPLE VOLUMES

The SAFE® XXLX8000 sample tubes from LVL technologies offer an optimal solution for storing large sample volumes. With a usable volume of 8000 µl, these tubes are ideal for extensive laboratory processes. The 2D-coded tubes ensure easy identification and traceability, while the robust design allows for safe storage in ultra-low temperature freezers.

Perfect for labs that rely on maximum efficiency and safety. The SAFE® XXLX8000 sample tubes provide an excellent combination of volume and stability, making them ideal for storing samples in extreme environments. Thanks to the high quality and durability of these tubes, you can be confident that your samples are safe and protected.

Improve your laboratory processes with the SAFE® XXLX8000 sample tubes and experience the benefits of this innovative solution. Rely on the quality and reliability of the SAFE® XXLX8000 sample tubes to protect your valuable samples from external influences. Benefit from the robust construction and high chemical resistance that make these tubes an ideal choice for demanding laboratory applications.

Trust the proven performance of the SAFE® XXLX8000 sample tubes to ensure the integrity of your samples at every stage of your research.
