LX1000
2D tubes with external threads for large volume samples
Test the LX1000 now!
SAFE® LX1000
The 1ml Tube! Meets most volume requirements and still fits into the efficient SBS 96 rack. THE alternative to traditional cryo tubes. For blood, serum, saliva.
LX1000:
- Working Volume: 1.000 µl
- Height: 48,6 / 48,9 mm (Tube with Screw Cap / Tube with Screw Cap in Rack)
- Storage Temperature: Down to -196°C (Gas phase of liquid nitrogen)
- Secure storage through unique tube coding
- Optional Side Coding: 2D and HR
- Space-saving storage with standardized SBS rack.
- Tubes have an external thread – minimizes the risk of cross-contamination
- The tubes can be delivered in bulk or pre-racked
- Available as production sterile or e-beam sterilized
- Designed in Germany, Produced in the European Union
Format
SBS 96
Working Volume
1.000 µl
Temperature
Up to -196°C
All the benefits of SAFE® at a glance
All the benefits of SAFE® at a glance
Redesigned 2D Tubes
The innovative SAFE® 2D tubes have been thoroughly redesigned to offer top performance and user-friendliness.
Clearly identifiable racks and tubes secure your samples for decades when stored correctly.
In addition to visual differentiation through various cap colors, the tube features fixed coding, space for individual coding, and space for your logo/study project or similar. The tube coding ensures that your samples are triply secured and can be identified both visually (HR code) and by using the appropriate SAFE® readers (2D/1D code).
Always perfectly sealed
Choose a closure system to get more information:
Amber Tubes
for light sensitive samples
White Tubes
with white code marking areas

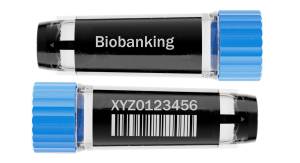

Customized Codes
Your custum code on tube and rack
Technical Specifications
LX 1000
SAFE® 2D Sample Tubes for Automation

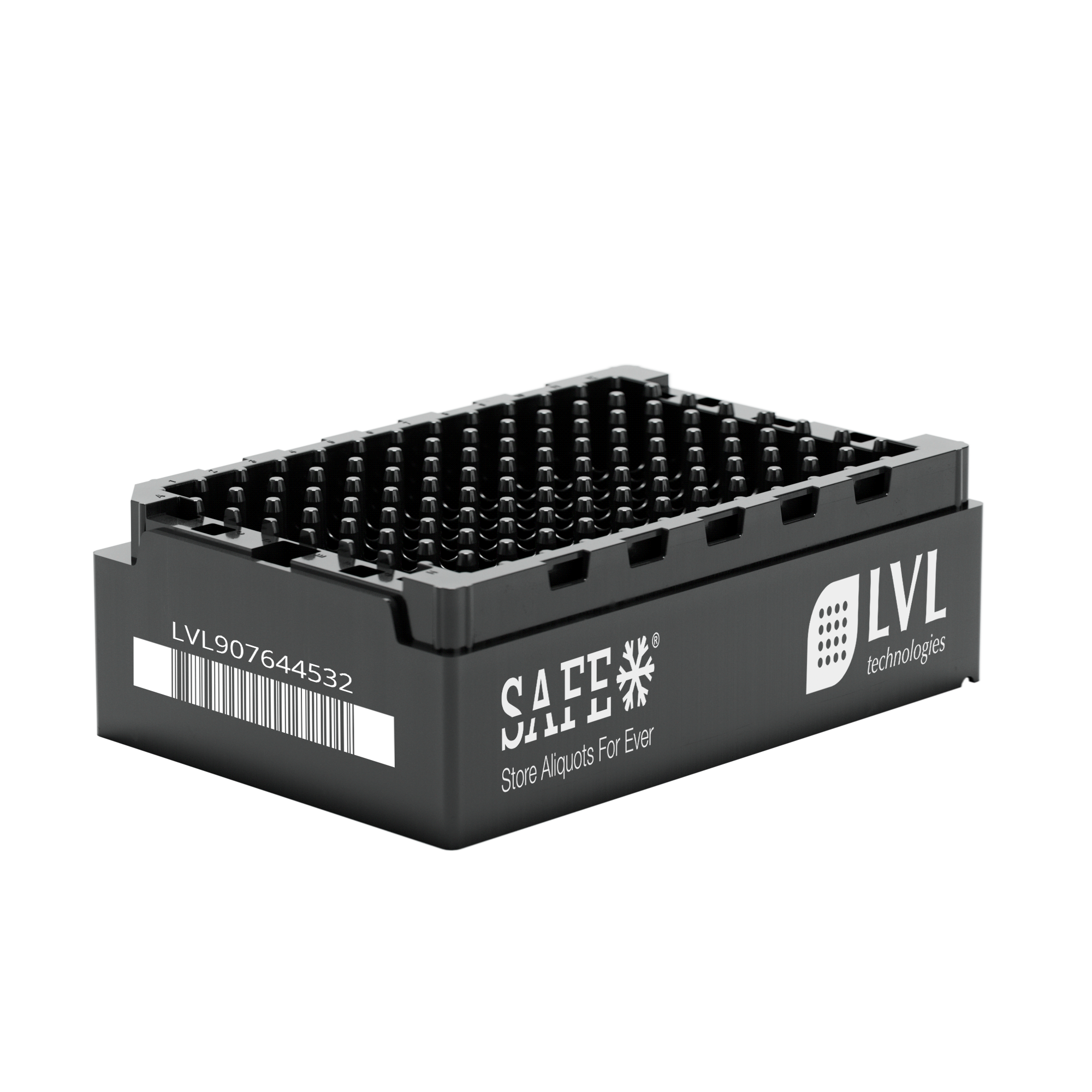

In standardized SBS Rack
Dimensions LxW: 127.76 x 85.48 (+/- 0.25 mm)
Optional Sterilization E-Beam / ETO
Availability in Rack, Bulkware
Outer diameter: 9.00 mm
Working Volume
| with Screw Cap | 1000 µl |
| with Push Cap | 1000 µl |
Storage Temperature
| with Screw Cap | -196°C |
| with Push Cap | -80°C |

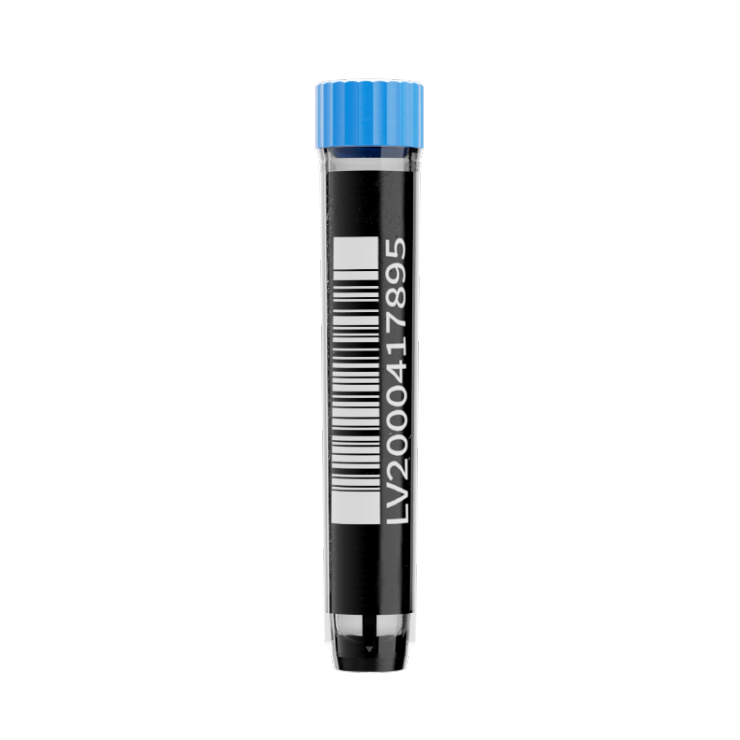

Side Code
| Barcode 1 D | optional |
| Human Readable | optional |
Tube Height
| with Screw Cap | 46.8 mm |
| with Push Cap | 48.6 mm |
| with Heat Seal | 48.2 mm |
Screw Caps
| pre-capped | Yes |
| on Cap Rack | Yes |
| Bulkware | Yes |
Rack Height
| non capped Tubes | 47.1 mm |
| Screw capped Tubes | 48.9 mm |
| with Rack Lid | 52.6 mm |
Find Item Number

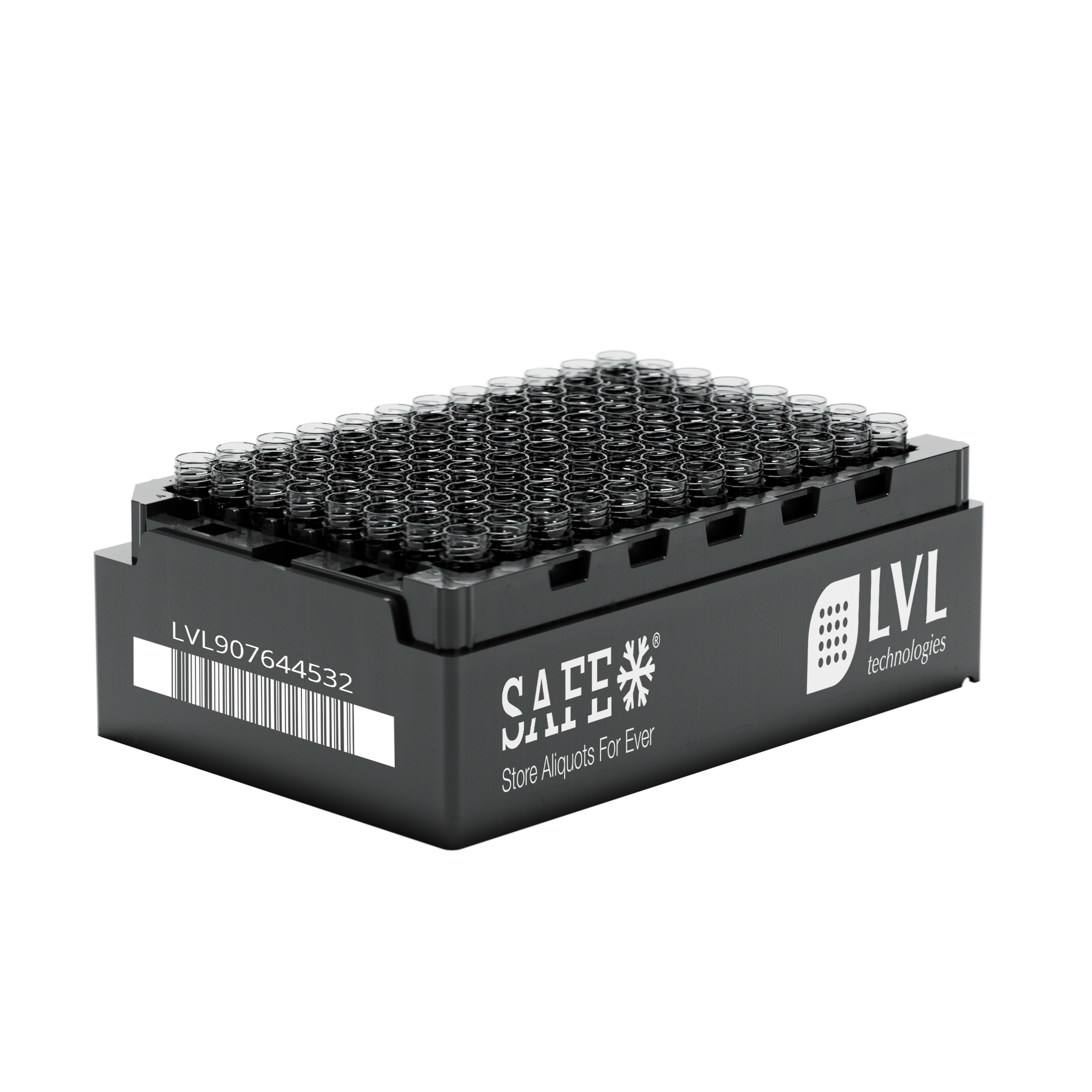

SAFE® LX1000 2D Tube for 1 ml Sample Storage in SBS 96 Rack

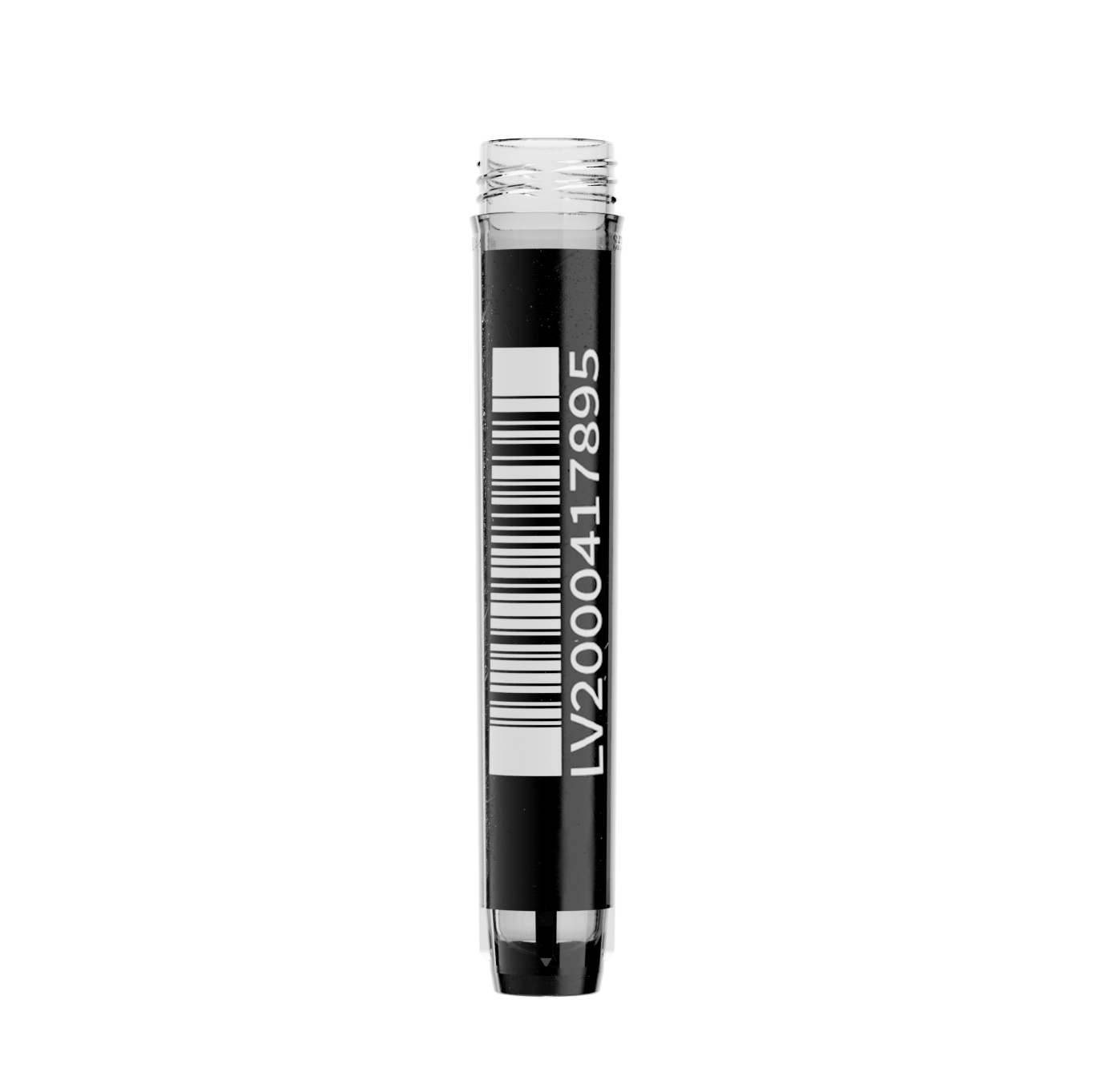

SAFE® LX1000 Tube with Free Marking Area
In this version, the side area of the SAFE® LX1000 Tube remains without a visible 1D or HR side code. The unique 2D code on the tube bottom remains the main basis for automated sample identification. The free area can be used for individual markings, project references or customer-specific coding concepts.
2D Codes of SAFE® LX1000 Tubes in the Rack
The underside of the filled SBS 96 rack shows the bottom 2D codes of the individual SAFE® LX1000 Tubes. This coding enables unique sample assignment directly in the rack and supports automated scanning with suitable rack readers. Even at high storage density, each sample remains reliably traceable.
PERFECT
RACK!
CENTERED
TUBES
Slanted Dome Lids
MORE
FROST!
Overall, this redesigned 2D tube offers advanced features for maximum efficiency, safety, and quality in your lab.
Suitable for the following SAFE® devices and accessories
SAFE® YOU CAN TOUCH
Order the LVL Sample Pack now with sample tubes in the following volumes:
300µl – 8ml, including the new SAFE® Rack GEN3
Technical Drawings
LX1000 G3
LX1000 G3
LX1000 G3
LX1000 G3
SAFE® LX1000 SAMPLE TUBES - RELIABLE SAMPLE STORAGE SOLUTION
The SAFE® LX1000 sample tubes from LVL technologies offer a dependable solution for sample storage. With a usable volume of 1000 µl, these tubes are perfect for a variety of laboratory applications. The 2D-coded tubes ensure easy identification and traceability of your samples.
The robust design ensures safe storage in ultra-low temperature freezers, while the high tightness and stability provide maximum security for your samples. The SAFE® LX1000 sample tubes are made from high-quality materials, offering excellent resistance to chemical and physical influences.
These tubes are ideal for laboratories that rely on reliable and durable solutions for sample storage.
Discover the benefits of the SAFE® LX1000 sample tubes and improve the efficiency and safety of your laboratory processes. With SAFE® LX1000 sample tubes, you can be confident that your samples are securely stored at extreme temperatures.
Trust in the quality and reliability of the SAFE® LX1000 sample tubes to protect your valuable samples.
Learn more about LVL SAFE® products
The LVL Tube Laser Marker TLM 864:
Although the automation-friendly Data-Matrix code on the bottom of storage tubes has been standard for many years—and has greatly simplified sample handling—many users want to mark the tubes with their specific information. At the same time, they want to move away from time-consuming and unreliable labeling methods.
For this need, LVL has developed a fully automatic tube laser marker. The TLM 864 can automatically laser-mark SAFE® tubes in SBS 96, SBS 48, and SBS 24 formats from two sides and link the information in a database with the 2D code previously lasered during production. Up to 500 tubes per hour can be coded from nine SBS/ANSI positions.
