SX300
2D tubes with external threads for large volume samples
Try SX300 now!
SAFE® SX300
For all small-volume applications, extremely valuable samples, and when many aliquots are needed. Suitable for DNA, oligopeptides, blood, buffy coat, plasma, protein, and more.
SX300 at a Glance:
- Working Volume: 300 µl
- Height 20.3 / 20.6 mm (Tube with Screw Cap / Tube with Screw Cap in Rack)
- Storage Temperature: Down to -196°C (Gas phase of liquid nitrogen)
- Secure storage through unique coding on the bottom of the tubes
- Optional side coding available: 2D and HR
- Space-saving storage with standardized SBS rack.
- Tubes have an external thread – minimizes the risk of cross-contamination
- The tubes can be delivered in bulk or pre-racked
- Available as production sterile or e-beam sterilized
- Designed in Germany, Produced in the European Union
Format
SBS 96
Working Volume
300 µl
Temperature
Up to -196°C
All the benefits of SAFE® at a glance
All the benefits of SAFE® at a glance
Redesigned SAFE® 2D Tubes
The innovative SAFE® 2D tubes have been thoroughly redesigned to offer top performance and user-friendliness.
Clearly identifiable racks and tubes secure your samples for decades when stored correctly.
In addition to visual differentiation through various cap colors, the tube features fixed coding, space for individual coding, and space for your logo/study project or similar. The tube coding ensures that your samples are triply secured and can be identified both visually (HR code) and by using the appropriate SAFE® readers (2D/1D code).
Always perfectly sealed
Choose a closure system to get more information:
Technical Specifications
SX 300
SAFE® 2D Sample Tubes
In standardized SBS Rack
Dimensions LxW: 127.76 x 85.48 (+/- 0.25 mm)
Optional Sterilization E-Beam / ETO
Availability in Rack, Bulkware
Outer diameter: 9.00 mm
Working Volume
| with Screw Cap | 300 µl |
| with Push Cap | 300 µl |
Storage Temperature
| with Screw Cap | -196°C |
| with Push Cap | -80°C |
Side Code
| Barcode 1D | n/a |
| Human Readable | optional |
Tube Height
| without Cap | 18.5 mm |
| with Screw Cap | 20.3 mm |
| with Push Cap | 19.8 mm |
Screw Caps
| pre-capped | Yes |
| with Cap-Rack | Yes |
| Bulkware | Yes |
Rack Height
| non capped Tubes | 18.8 mm |
| screw capped Tubes | 20.6 mm |
| with Rack Lid | 24.6 mm |
Find Item Number

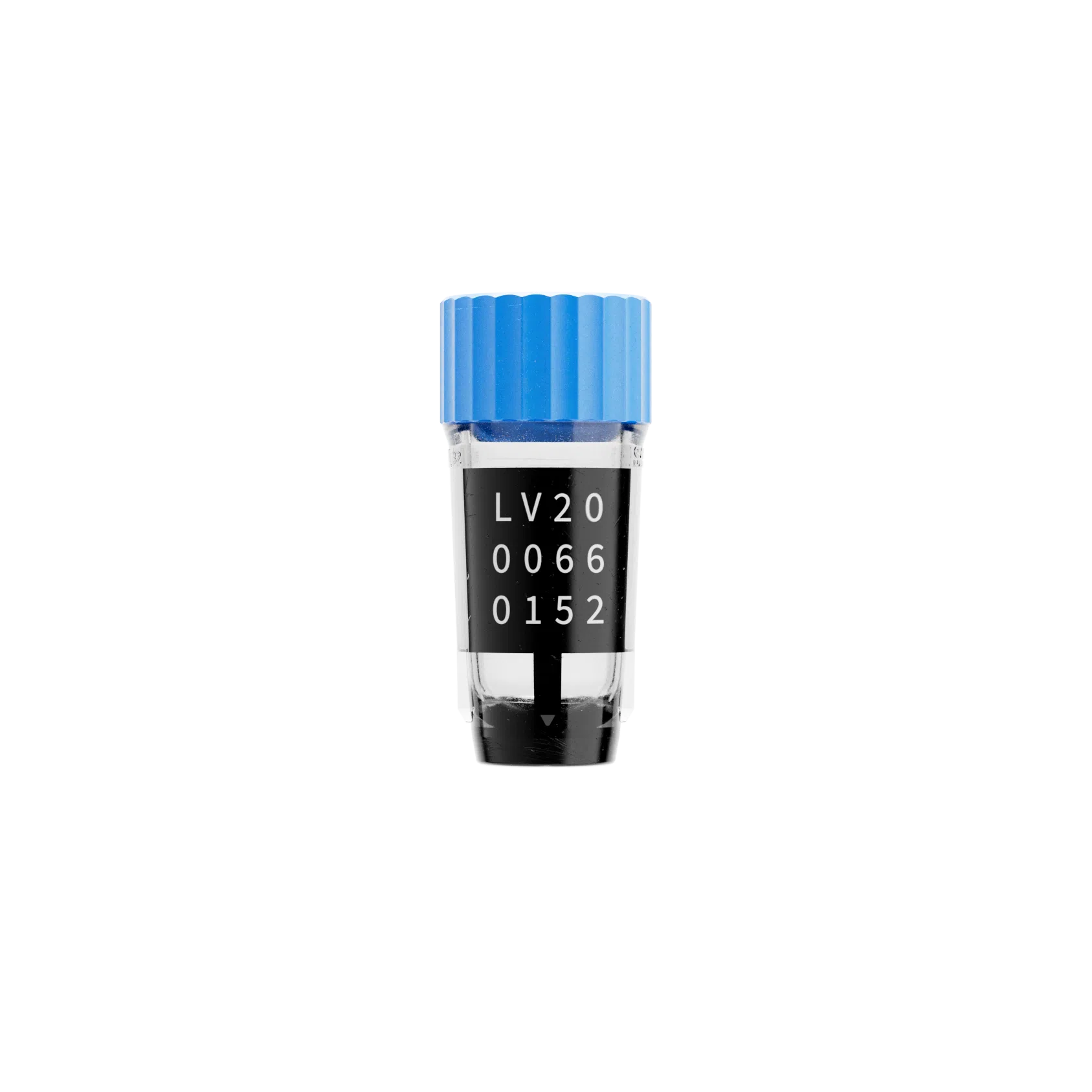

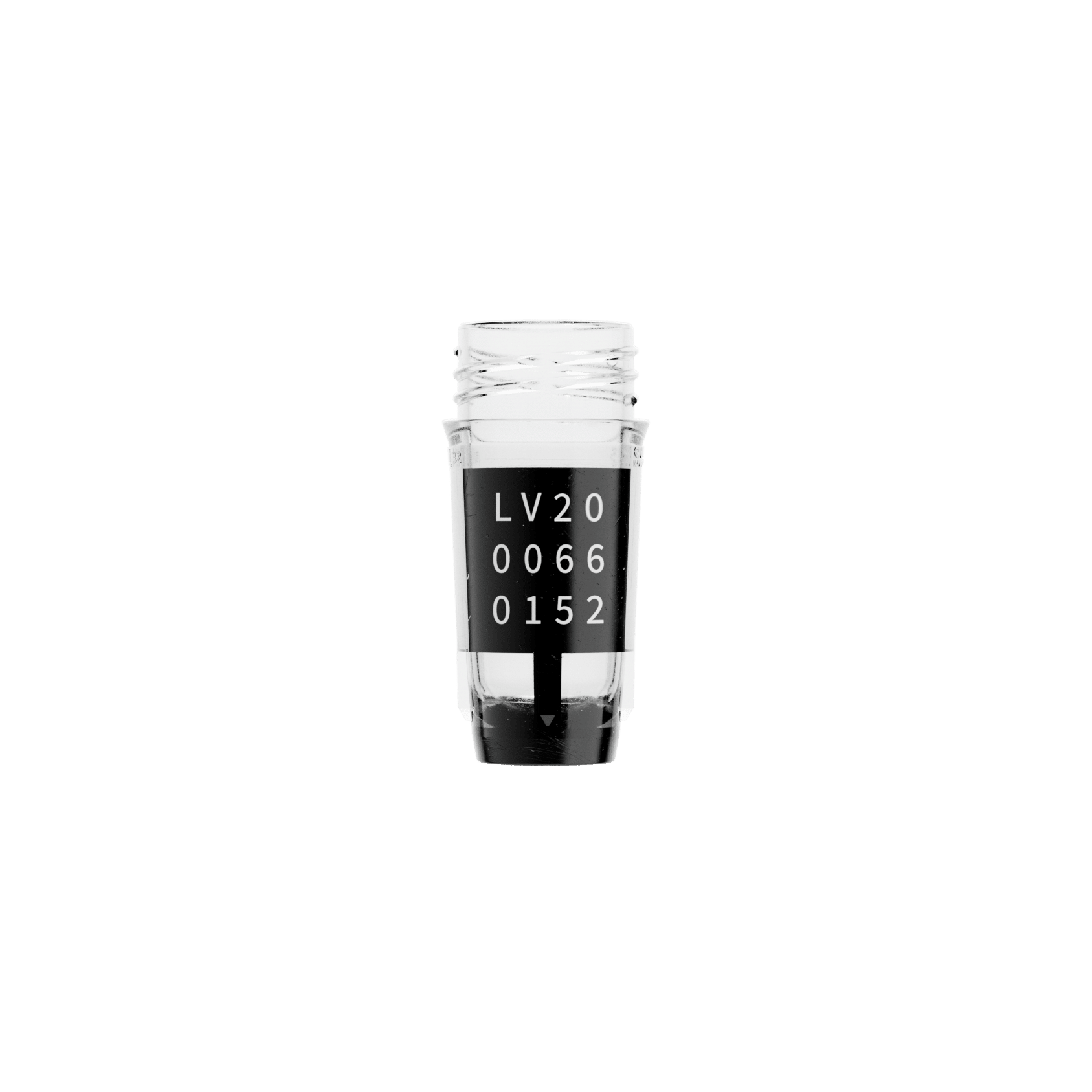

SAFE® SX300 2D Tube for Small-Volume Samples in SBS 96 Rack

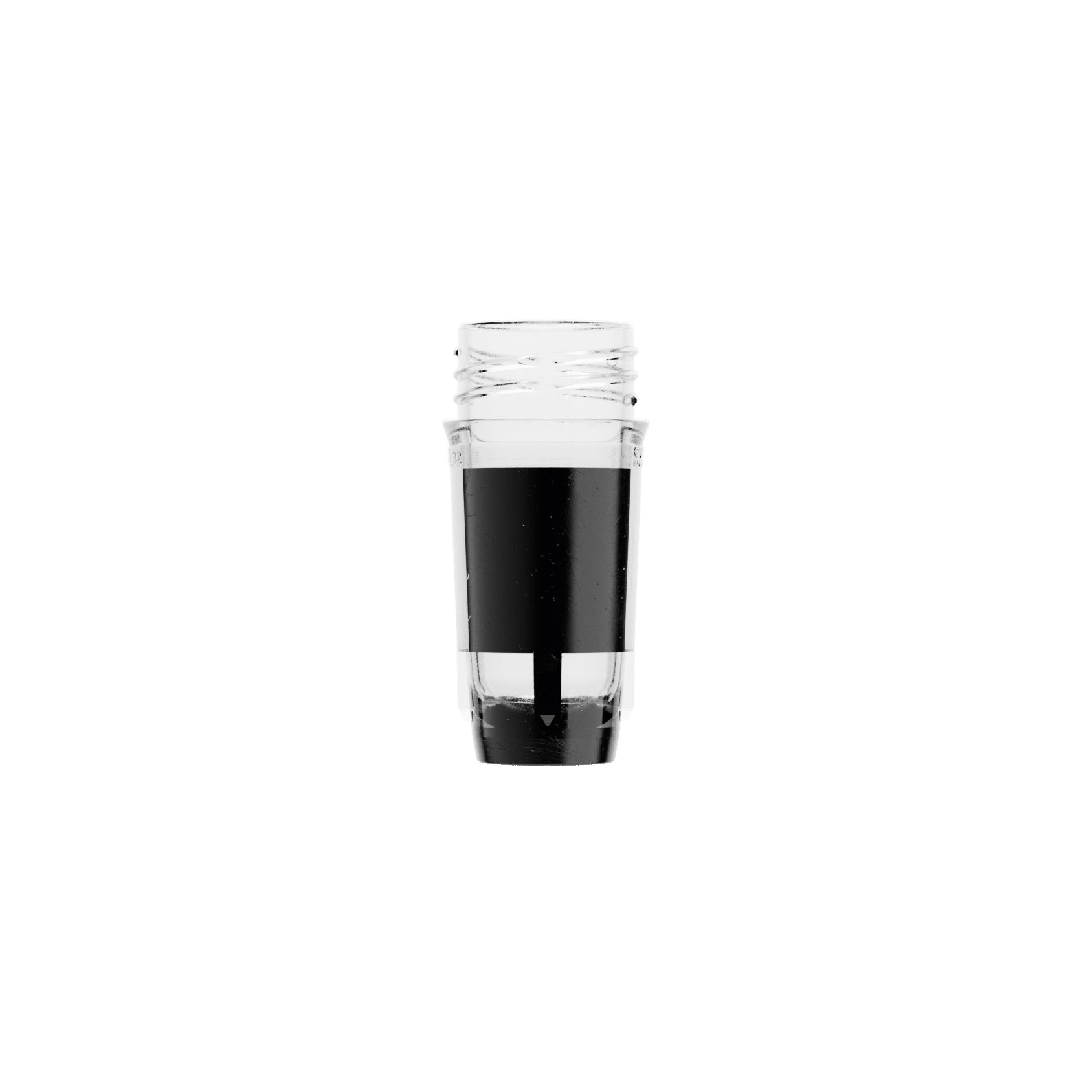

SAFE® SX300 Tube with Free Marking Area
This version of the SAFE® SX300 Tube shows a free side area without a visible HR side code. Unique identification is still provided by the 2D code on the bottom of the tube. This makes the tube suitable for workflows where sample assignment is handled through rack readers, 2D code scanners or automated systems.
SBS 96 Rack for SAFE® SX300 Tubes
The empty SBS 96 rack shows the defined 96-position layout for SAFE® SX300 Tubes. The fixed positions support reproducible workflows when loading, storing and reading the tubes. With its standardized format, small-volume samples can be efficiently integrated into existing laboratory and automation processes.
PERFECT
RACK!
CENTERED
TUBES
Slanted Dome Lids
MORE
FROST!
Overall, this redesigned 2D tube offers advanced features for maximum efficiency, safety, and quality in your lab.
Suitable for the following SAFE® devices and accessories
SAFE® YOU CAN TOUCH
Order the LVL Sample Pack now with sample tubes in the following volumes:
300µl – 8ml, including the new SAFE® Rack GEN3
Technical Drawings
SX300 G3
SX300 G3
SX300 G3
SX300 G3
SAFE® SX300 SAMPLE TUBES - COMPACT AND EFFICIENT SAMPLE STORAGE
The SAFE® SX300 sample tubes from LVL technologies offer an outstanding solution for compact and efficient sample storage. With a usable working volume of 300 µl and a height of only 20.3 mm including the screw cap, these tubes are true space savers.
Ideal for laboratory applications where maximum space utilization is crucial. The 2D-coded tubes ensure easy identification and traceability of your samples. These tubes are perfect for use in automated systems and for long-term storage in ultra-low temperature freezers. Thanks to the high-quality materials and precise manufacturing, the SAFE® SX300 sample tubes provide a reliable and secure solution for your sample storage needs.
Discover the efficiency and space savings that the SAFE® SX300 sample tubes can bring to your laboratory. Take advantage of this innovative solution to improve your laboratory processes. The tubes are chemical-resistant and can be used at extreme temperatures, making them a versatile choice for various laboratory applications.
Rely on the quality and reliability of the SAFE® SX300 sample tubes to ensure the integrity of your samples.
Learn more about LVL SAFE® products
The LVL Tube Laser Marker TLM 864:
Although the automation-friendly Data-Matrix code on the bottom of storage tubes has been standard for many years—and has greatly simplified sample handling—many users want to mark the tubes with their specific information. At the same time, they want to move away from time-consuming and unreliable labeling methods.
For this need, LVL has developed a fully automatic tube laser marker. The TLM 864 can automatically laser-mark SAFE® tubes in SBS 96, SBS 48, and SBS 24 formats from two sides and link the information in a database with the 2D code previously lasered during production. Up to 500 tubes per hour can be coded from nine SBS/ANSI positions.
LVL`D UP – What’s New, What’s Different?
A completely redesigned automation-friendly rack and tube take our long-term storage tubes to the next level. Join us and upgrade your sample storage. In addition to more than 13 different cap colors and countless possibilities for customizing tube and rack coding, we adapt your sample storage system to your needs and preferences.
Latest News from SLAS 2023 in Boston! – Our Product Manager Waldemar Janzen explains the functions of the TLM864.
