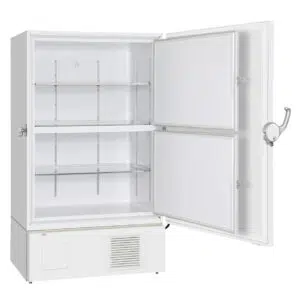

MDF-DU901VH-PE - ULTRA-LOW TEMPERATURE REFRIGERATOR FOR MAXIMUM SECURITY
The MDF-DU901VHL-PE VIP ECO refrigerator down to -86°C offers maximum sample storage capacity with optimal space utilization. It uses natural refrigerants, reducing energy consumption, environmental impact, and operational costs.
Maximum Sample Storage
High-capacity sample storage Uniform sample storage Ideal for the long-term storage of high-volume samples in biobanks and biomaterial banks While the inverter compressors provide optimal stability, the quality of the construction ensures reliability. Ideal for samples that are sensitive to temperature fluctuations. The use of space-saving patented VIP PLUS panels in the device allows for a maximum capacity of up to 672 2”-boxes on a footprint of only 1 m². The conventional depth of the device allows for easy installation.
Efficient Cooling
Naturally occurring hydrocarbon refrigerants (HC refrigerants) provide more efficient cooling due to their high latent heat of vaporization. This leads to improved performance, lower power consumption, and reduced energy costs.
Smart Interface
Thanks to the EZ handle, accessing stored samples is even easier. A colored LCD touchscreen allows full user control even with gloved hands, while a USB port enables easy and seamless transfer of logged data to a PC.
![](https://a8b746f2.rocketcdn.me/wp-content/uploads/2023/11/MDF-DU901VH_performance_chart.jpg)
![](https://a8b746f2.rocketcdn.me/wp-content/uploads/2023/11/MDF-DU901VH_dimensions_1000x1000-1024x647.png)
External dimensions (W x D x H) | 1150 x 870 x 1993 mm |
---|---|
Internal dimensions (W x D x H) | 1010 x 600 x 1400 mm |
Volume | 845 liters |
Net weight (approx.) | 328 kg |
Capacity (aluminum racks 2” boxes) | 672 (2″-boxes) |
Capacity (stainless steel racks 2” boxes) | – |
Cooling performance | -86 °C |
Temperature setting range | -50 to -90 °C |
Temperature control range | -50 to -86 °C |
Controller | Microprocessor, non-volatile memory |
Display | LCD-Touchscreen |
Temperature sensor | Pt-1000 |
Cooling system | Cascade |
High pressure compressor | 2 x 1100 W |
Refrigerant | HC |
Insulation material | PUF / VIP Plus |
Insulation thickness | 70 mm |
Exterior | Painted steel |
Interior | Painted steel |
Exterior door | 1 |
Exterior door lock | J |
Interior door | 2-part (insulated) |
Shelves | 3 |
Max. Load per shelf | 50 kg |
Max. Total load | 150 kg |
Vacuum release port | J |
Access port | 2 |
Access port position | Rear, bottom |
Access port diameter | 17 |
Casters | 4 (2 adjustable feet) |
Power failure | O-A-F |
Temperature too high | O-A-F |
Temperature too low | O-A-F |
Filter | O |
Door open | O-A |
Power supply | 230 V |
Frequency | 50 Hz |
Volume | 52 dB [A] |
Number of LVL SBS racks per freezer | ||||||||||||
PHCBi Model | SX300 | MX500 | LX1000 | MI500 | LI1000 | XLX500 | XLX2000 | XLX4000 | XXLX2000 | XXLX4000 | XXLX6000 | XXLX8000 |
MDF-DU901VHL-PE | 1848 | 1428 | 936 | 1260 | 756 | 1848 | 936 | 504 | 1428 | 1092 | 672 | 672 |
