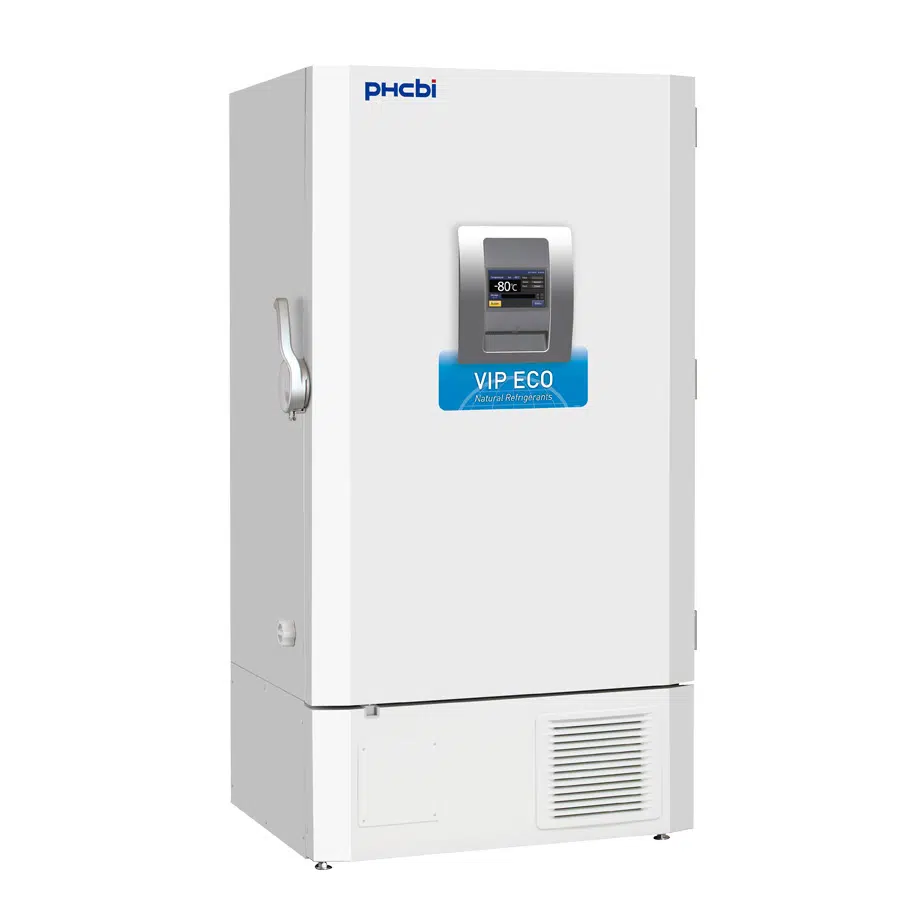

MDF-DU702VH-PE - ULTRA-LOW TEMPERATURE REFRIGERATOR FOR HIGH DEMANDS
The VIP ECO ultra-low temperature refrigerator MDF-DU702VH with natural refrigerants minimizes energy consumption, reduces environmental impact, and saves costs. The innovative technology and certification as a Class IIa medical device ensure safe storage of valuable clinical samples in research.
Efficient and Environmentally Friendly Cooling
Natural hydrocarbon refrigerants provide more efficient cooling due to their high latent heat of vaporization. This results in improved performance, lower power consumption, and reduced energy costs. Ideal for laboratories aiming to reduce their CO2 footprint and environmental impact to meet sustainability guidelines.
Inverter Technology and Uniform Sample Storage
The VIP ECO ULT freezer MDF-DU702VH includes inverter compressors that maximize cooling performance under various conditions and reduce the freezer’s energy consumption. While conventional freezers use single-speed compressors that cycle on and off, the VIP ECO ULT freezer MDF-DU702VH includes inverter compressors that can run at different speeds to maximize cooling performance under different conditions. Combined with hydrocarbon refrigerants, these compressors ensure highly efficient energy use and reduced heat output.
While the inverter compressors provide optimal stability, the quality of the construction ensures reliability. Ideal for samples that are sensitive to temperature fluctuations.
Smart Interface and Easy Data Monitoring
Thanks to the EZ handle, accessing stored samples is even easier. A colored LCD touchscreen allows full user control even with gloved hands, while a USB port enables easy and seamless transfer of logged data to a PC. Key information such as device temperature, door opening times, and alarm history are logged for monitoring by GLP applications.
Efficient and Flexible Sample Storage
The combination of VIP PLUS vacuum insulation and improved cabinet design with an insulated outer door ensures optimal temperature consistency while maximizing storage capacity by reducing wall thickness. Multiple shelf configurations allow a variety of storage options. Organize your samples using your existing storage racks.
![](https://a8b746f2.rocketcdn.me/wp-content/uploads/2023/11/performance-data-mdf-du702vh-300x224.jpg)
![](https://a8b746f2.rocketcdn.me/wp-content/uploads/2023/11/mdf-du702vh-dimensions-1000x1000-1-300x300.jpg)
External dimensions (W x D x H) | 1030 x 882 x 1993 mm |
---|---|
Internal dimensions (W x D x H) | 870 x 600 x 1400 mm |
Volume | 729 liters |
Net weight (approx.) | 278 kg |
Capacity (aluminum racks 2” boxes) | 576 (2″-boxes) |
Capacity (stainless steel racks 2” boxes) | 576 (2″-boxes) |
Cooling performance | -86 °C |
Temperature setting range | -50 to -90 °C |
Temperature control range | -50 to -86 °C |
Controller | Microprocessor, non-volatile memory |
Display | LCD-Touchscreen |
Temperature sensor | Pt-1000 |
Cooling system | Cascade |
High pressure compressor | 2 x 750 W |
Refrigerant | HC |
Insulation material | PUF / VIP Plus |
Insulation thickness | 80 mm |
Exterior | Painted steel |
Interior | Painted steel |
Exterior door | 1 |
Exterior door lock | J |
Interior door | 2 |
Shelves | 3 |
Max. Load per shelf | 50 kg |
Max. Total load | 515 kg |
Vacuum release port | 2 (1 automatic, 1 manual) |
Access port | 3 |
Access port position | Rear x 1, bottom x 2 |
Access port diameter | 17 |
Casters | 4 (2 adjustable feet) |
Power failure | O-A-F |
Temperature too high | O-A-F |
Temperature too low | O-A-F |
Filter | O-A |
Door open | O-A |
Power supply | 230 V |
Frequency | 50 Hz |
Volume | 52 dB [A] |
Number of LVL SBS racks per freezer | ||||||||||||
PHCBi Model | SX300 | MX500 | LX1000 | MI500 | LI1000 | XLX500 | XLX2000 | XLX4000 | XXLX2000 | XXLX4000 | XXLX6000 | XXLX8000 |
MDF-DU702VH-PE | 1728 | 1296 | 864 | 1152 | 720 | 1728 | 864 | 432 | 1296 | 1008 | 720 | 720 |
