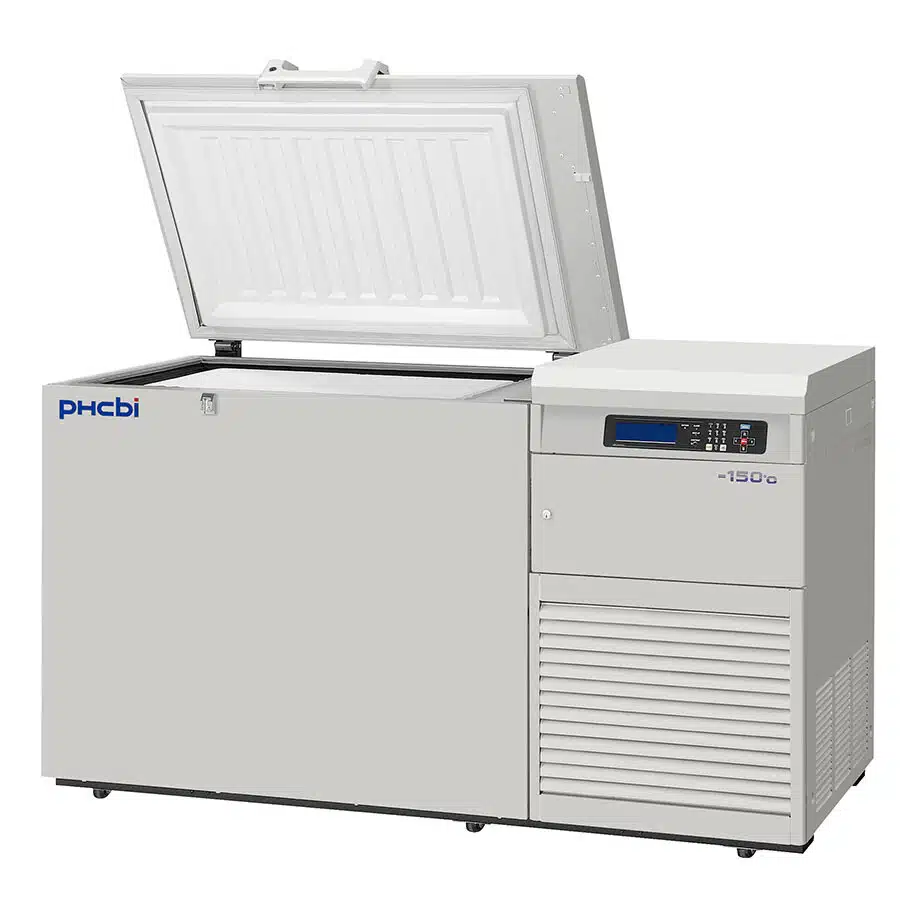

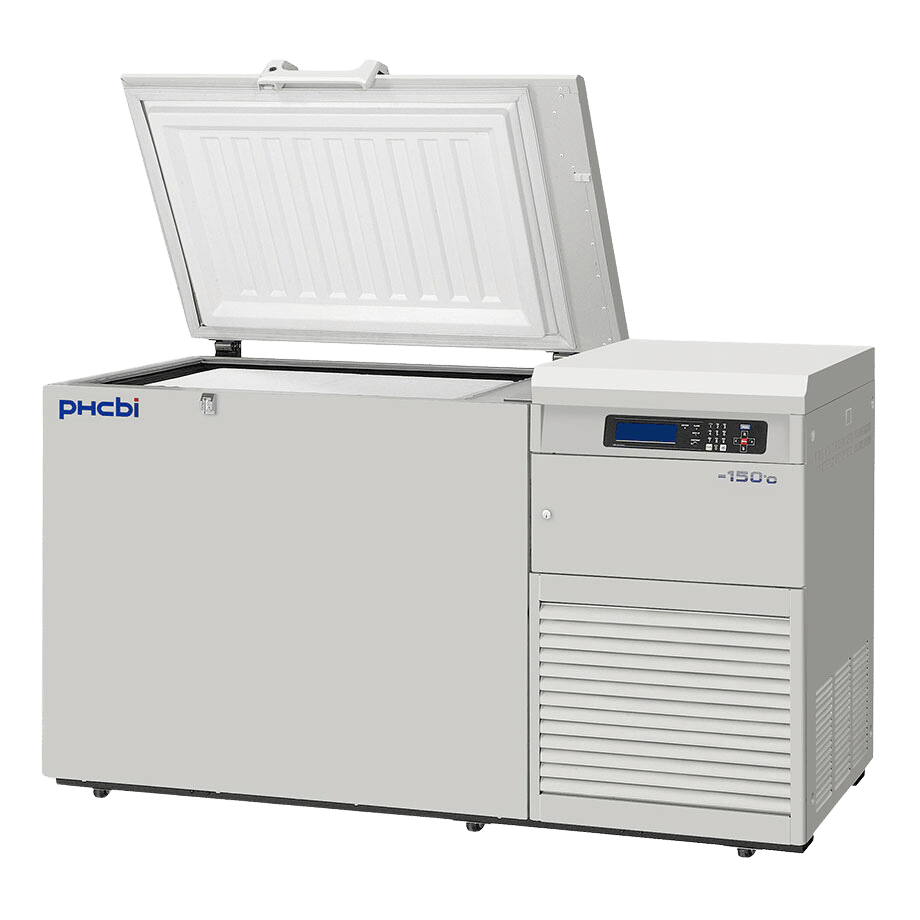

MDF-C2156VAN-PE - High-Performance Ultra-Low Temperature Freezer
The cryogenic ultra-low temperature freezer type MDF-C2156VAN-PE is excellent for cryogenic and long-term storage in laboratories and no longer uses harmful CFCs to achieve ultra-low temperatures down to -150°C. The Cryogenic MDF-C2156VAN-PE is a mechanical cryogenic freezer.
The new VIP PLUS technology maximizes storage capacity compared to conventional insulated models. Whatever your preservation requirements may be, PHCbi offers the right device for your high demands. PHCbi preservation systems utilize modern technology to ensure highly accurate temperatures.
The cryogenic -150°C ultra-low temperature freezer type MDF-C2156VAN is equipped with PHCbi’s new Cool Safe compressors. These compressors achieve 10% higher energy savings, and the aerodynamically designed and positioned components in the cooling chamber provide excellent airflow, significantly reducing the load on the freezer and ensuring its excellent lifespan.
Environmentally Friendly
The MDF-C2156VAN uses binary mixed CFC-free refrigerants. The new vacuum insulation and double door seals reduce energy consumption.
Compared to liquid nitrogen systems, the MDF-C2156VAN from PHCbi offers the following advantages:
– Lower operating costs
– Easy maintenance
– No contamination
Features
- Rechargeable battery
- Application of a special ultra-low temperature compressor
- PHCbi’s patented V.I.P. Plus vacuum insulation panel for high density
- Three cabinet security levels
- PHCbi-designed quiet high-performance cooling
- PHCbi’s mixed refrigerant contains no CFCs
- Enhanced reliability for long-term preservation
- Modern control functions
- LED digital display and membrane keyboard for accurate temperature setting, confirmation, and operation
- The inner chamber safely maintains a temperature below -130°C
- Ultra-low temperature is generated by a highly efficient oil separator
- Specially foamed polyurethane insulation for maximum cabinet protection
- Microprocessor-controlled check function for clogged filters
- High temperature warning device
- Power failure alarm light and buzzer
- Remote alarm contact
- Includes liquid nitrogen backup system
![05_size_1000x1000](https://a8b746f2.rocketcdn.me/wp-content/uploads/2023/11/05_size_1000x1000-e1710683030595.png)
![](https://a8b746f2.rocketcdn.me/wp-content/uploads/2023/11/MDF-C2156VAN_Performance.jpg)
External dimensions (W x D x H) | 1730 x 765 x 1010 mm |
---|---|
Internal dimensions (W x D x H) | 760 x 495 x 615 mm |
Volume | 231 Liter |
Net weight (approx.) | 318 kg |
Capacity (aluminum racks 2” boxes) | – |
Capacity (stainless steel racks 2” boxes) | – |
Cooling performance | -150 °C |
Temperature setting range | -125 to -152 °C |
Temperature control range | -130 to -150 °C |
Controller | Microprocessor, non-volatile memory |
Display | LCD |
Temperature sensor | Pt-1000 |
Cooling system | Cascade with low-level auto cascade |
High pressure compressor | 1100 W |
Refrigerant | Mixed CFC |
Insulation material | PUF / VIP Plus |
Insulation thickness | 135 mm |
Exterior | Painted steel |
Interior | Aluminum |
Exterior door | – |
Exterior door lock | J |
Interior door | 2 |
Shelves | |
Max. Load per shelf | – |
Max. Total load | 207 kg |
Vacuum release port | – |
Access port | 1 |
Access port position | Right |
Access port diameter | 40 |
Casters | 6 (3 adjustable feet) |
Power failure | O-A-F |
Temperature too high | O-A-F |
Temperature too low | O-A-F |
Filter | O-A |
Door open | O-A |
Power supply | 230 V |
Frequency | 50 Hz |
Volume | 51 dB [A] |
Number of LVL SBS racks per freezer | ||||||||||||
PHCBi Model | SX300 | MX500 | LX1000 | MI500 | LI1000 | XLX500 | XLX2000 | XLX4000 | XXLX2000 | XXLX4000 | XXLX6000 | XXLX8000 |
MDF-C2156VAN-PE | 600 | 425 | 275 | 375 | 150 | 600 | 275 | 150 | 450 | 325 | 225 | 175 |
