SX260

SAFE® Tubes >> 96 XT >> SX260

SX260

2D tubes with external threads for large volume samples

Try SX260 now!

SAFE® Tubes >> 96 XT >> SX260

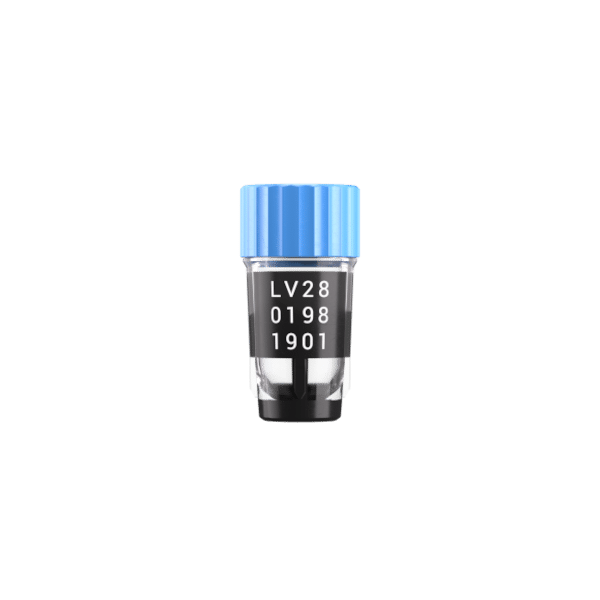

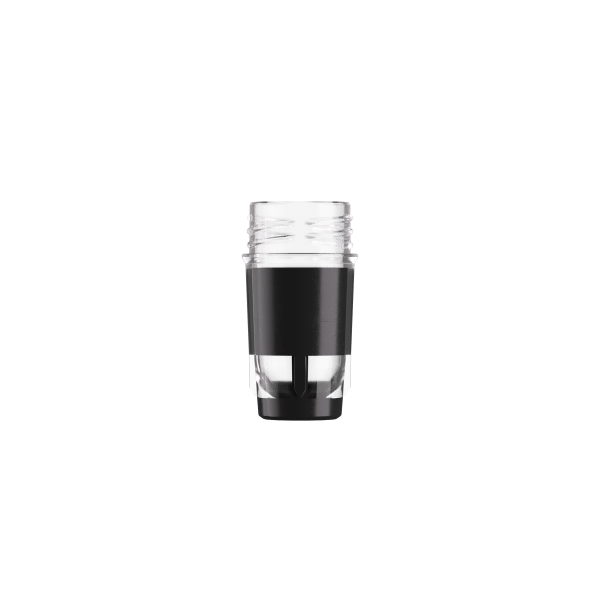

SAFE® SX260

The smallest SAFE® 2D tube with side code. Suitable for automated storage.

SX260 at a Glance:

  • Working Volume: 260 µl
  • Recommended for Use in Automated Storage Systems
  • For manual storage, we recommend our SX300 Tube.
  • Height: 17,5 / 16 mm (Tube with Screw Cap / Tube with Screw Cap in Rack)
  • Storage Temperature: Down to -196°C (Gas phase of liquid nitrogen)
  • Secure storage through unique coding on the bottom of the tubes
  • Optional side coding available: 2D and HR

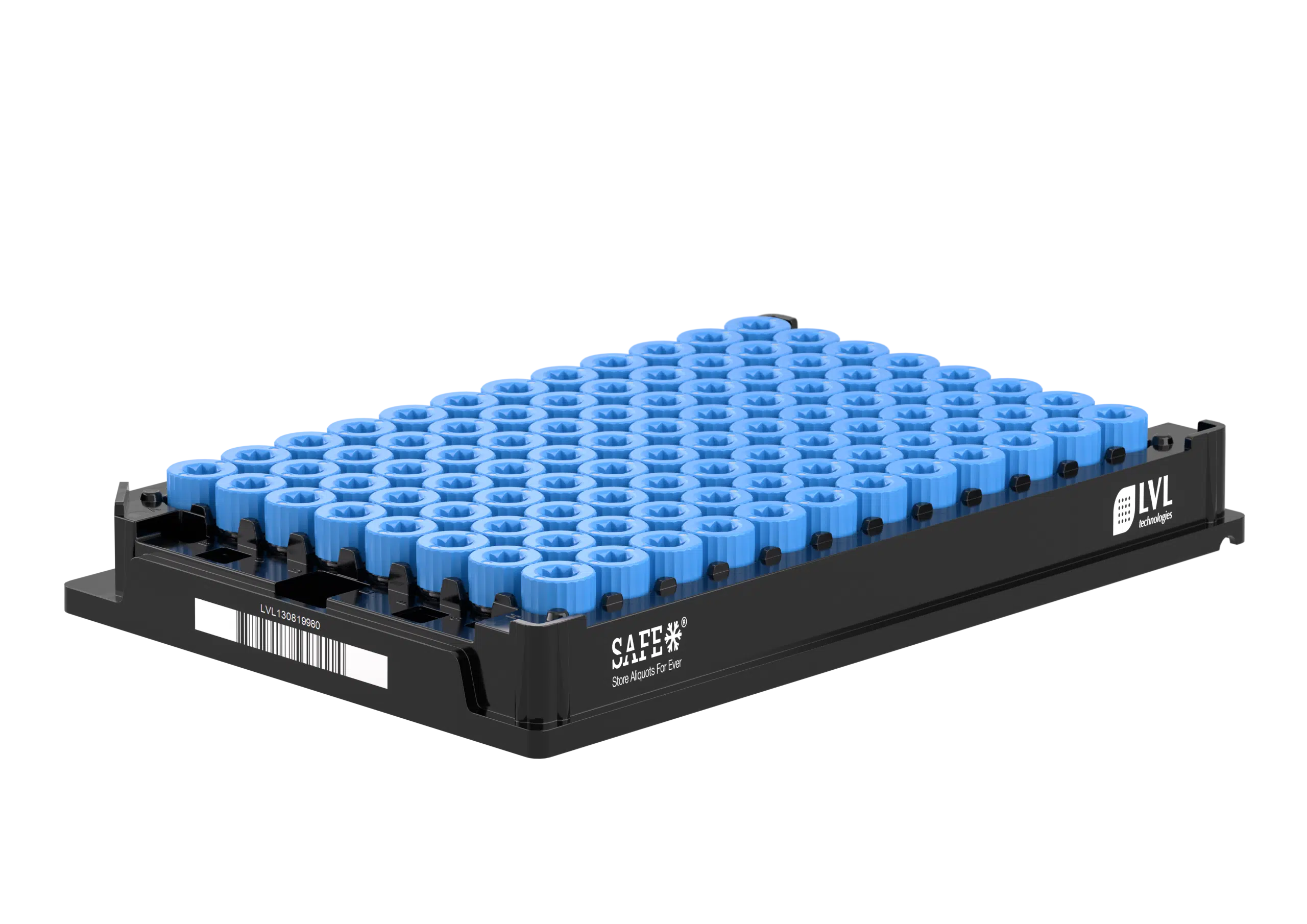

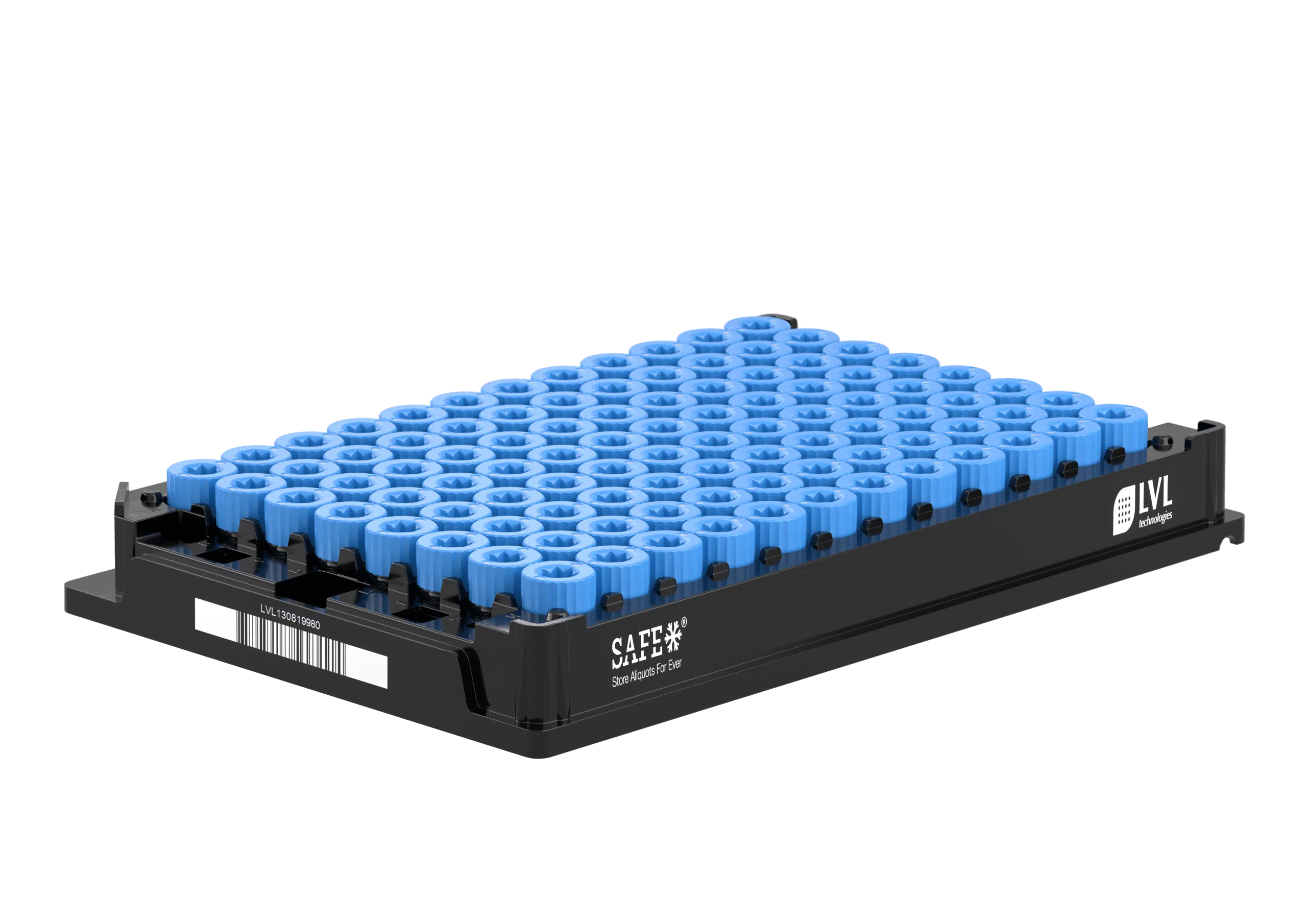

  • Space-saving storage with standardized SBS rack.
  • Tubes have an external thread – minimizes the risk of cross-contamination
  • The tubes can be delivered in bulk or pre-racked
  • Available as production sterile or e-beam sterilized
  • Designed in Germany, Produced in the European Union
Format
SBS 96
Working Volume
260 µl
Temperature
Up to -196°C

All the benefits of SAFE® at a glance

Redesigned SAFE® 2D Tubes

The innovative SAFE® 2D tubes have been thoroughly redesigned to offer top performance and user-friendliness.

Clearly identifiable racks and tubes secure your samples for decades when stored correctly.

In addition to visual differentiation through various cap colors, the tube features fixed coding, space for individual coding, and space for your logo/study project or similar. The tube coding ensures that your samples are triply secured and can be identified both visually (HR code) and by using the appropriate SAFE® readers (2D/1D code).

null
null

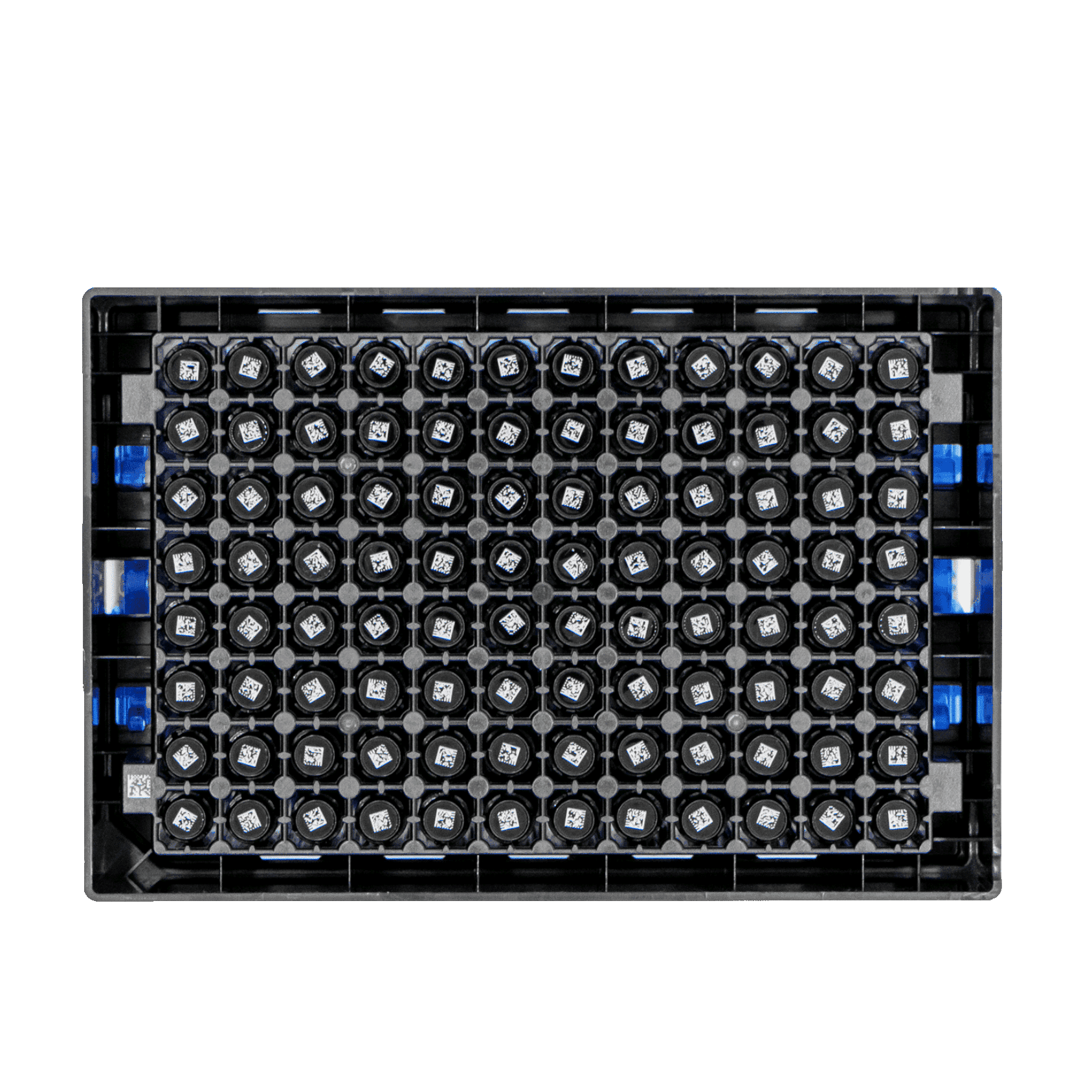

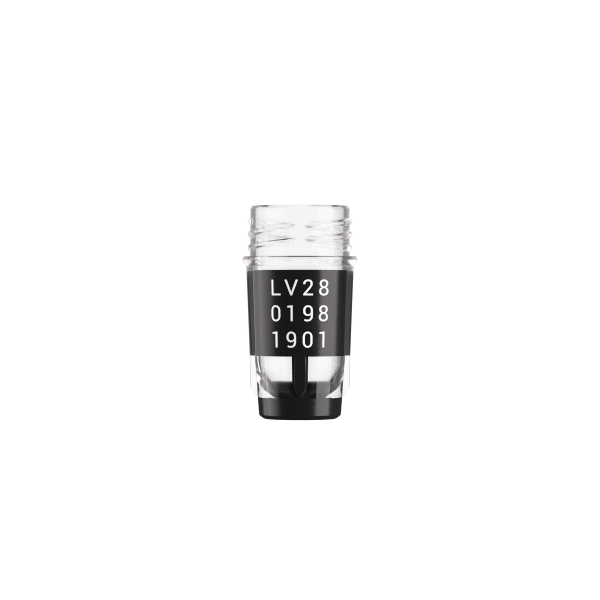

1D Side Code / HR Side Code The 1D side code matches the bottom coding of the tube and primarily secures the valuable sample contents. Additionally, the HR side code presents the coding in readable text. This triple assurance – side code, bottom code, and HR code – ensures that your samples are not only safe but also easily identifiable. 2D Bottom Code / Protective Rim The tube features a precise 2D bottom code for quick identification. A special protective rim shields the code from mechanical impacts and prevents scratches, ensuring the integrity of your samples. The ideal tube for your sample storage: Multiple coding options make your sample secure, traceable, and the modern tube design is automation-friendly. Show Tube Show Rack Space for Individual Coding The tube provides ample space for individual coding, allowing you to add specific information about your lab or samples. The black side surface is laser-etched with the LVL logo by default and can be customized to your specifications at no additional cost. THE PERFECT TUBE! The tube provides ample space for individual coding, allowing you to add specific information about your lab or samples. The black side surface is laser-etched with the LVL logo by default and can be customized to your specifications at no additional cost. THE PERFECT RACK! Perfect for Automation: The crescent-shaped guide rails of our racks allow tubes to be quickly and collision-free placed in our rack. Side Rack Coding The side coding as a 1D code and readable plain text on the rack allows for automatic and visual retrieval of your sample racks. The rack code consists of unique, 12-digit codes. Show Tube Show Rack The revised design includes three new areas that can hold additional information about the rack and tubes to improve traceability and documentation. Overall, this redesigned 2D tube offers advanced features for maximum efficiency, safety, and quality in your lab. Individual Coding Bottom Orientation Code

Always perfectly sealed

Choose a closure system to get more information:
Closure per

Screw Cap

Learn More
Closure per

Push Cap

Learn More

Technical Specifications

SX 260

SAFE® 2D Sample Tubes for Automation

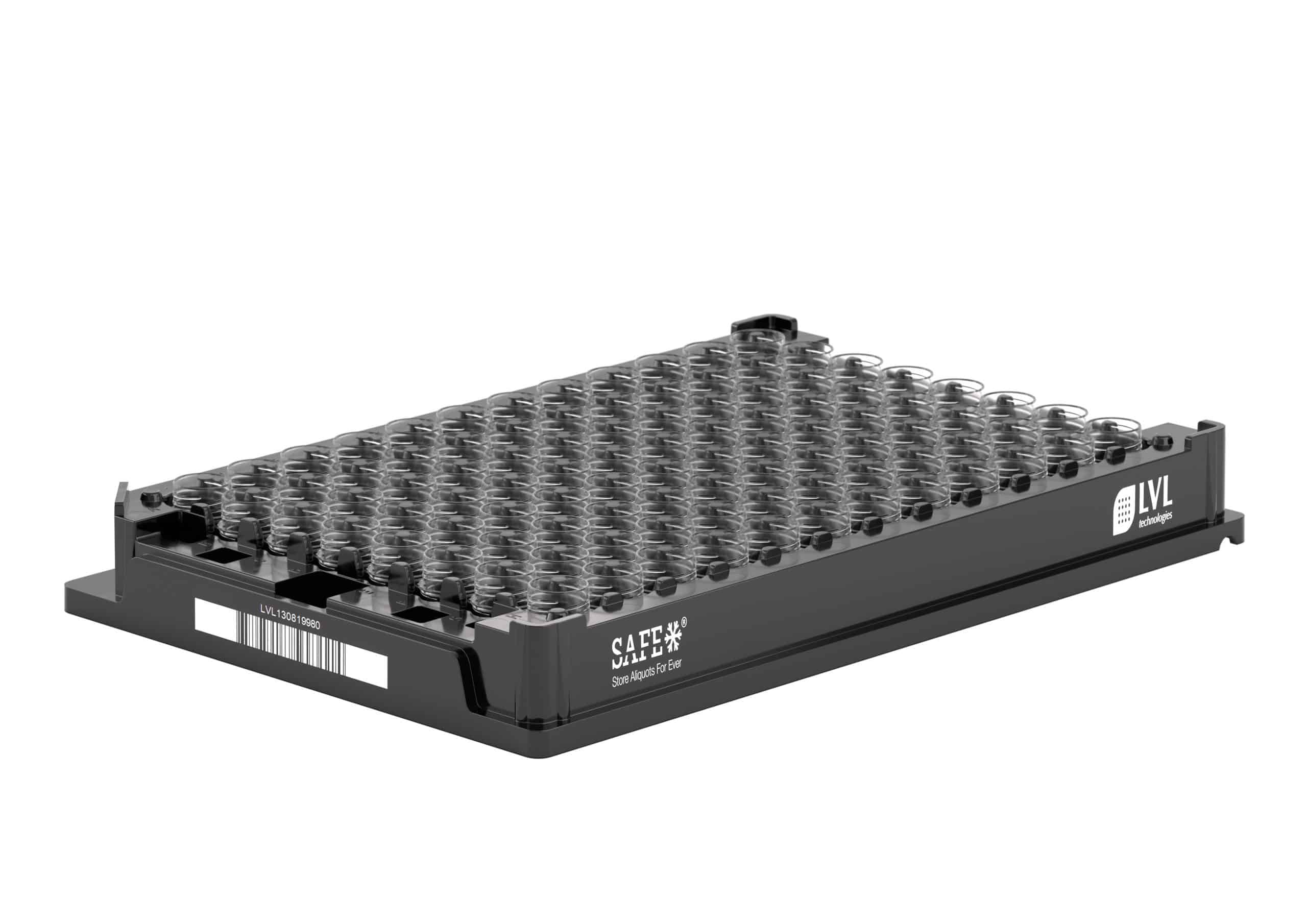

In standardized SBS Rack

Dimensions LxW: 127.76 x 85.48 (+/- 0.25 mm)

Optional Sterilization E-Beam / ETO

Availability in Rack, Bulkware

Outer diameter: 9.00 mm

Working Volume

with Screw Cap 260 µl
with Push Cap 260 µl

Storage Temperature

with Screw Cap -196°C
with Push Cap -80°C

Side Code

Barcode 1D n/a
Human Readable optional

Tube Height

without Cap 16.0 mm
with Screw Cap 17.5 mm
with Push Cap 17.0 mm

Screw Caps

pre-capped Yes
with Cap-Rack Yes
Bulkware Yes

Rack Height

non capped Tubes 16.1 mm
screw capped Tubes 17.7 mm
with Rack Lid 24.6 mm

Find Item Number

  • WORKING VOLUME

  • THREAD TYPE

  • SIDE CODE

  • SCREW CAPS

  • CAP COLOR

  • RACK

  • RACK CODING

  • STERILITY

  • PACKING UNIT

  • Reset

PERFECTLY
CENTERED
TUBES Automation-Friendly
Slanted Dome Lids The automation-friendly slanted dome lids and the curved indentation rim ensure precise tube centering, reduce collisions, and optimize workflow in automated systems. Automation-Friendly Closure: The closure is designed to be automation-friendly, allowing seamless integration into automated processes. EASY LOCK Anti-Frost Gradient: NO
MORE
FROST! An anti-frost gradient effectively prevents ice formation, which is particularly advantageous in low-temperature environments. Curved Indentation Rim Guides the tube safely and reduces collisions. THE PERFECT RACK! LVL`D UP 2D SAFE® Tube Rack: Advanced Features for Maximum Efficiency, Safety, and Quality in Your Lab THE PERFECT RACK! LVL`D UP 2D SAFE® Tube Rack: Advanced Features for Maximum Efficiency, Safety, and Quality in Your Lab 3 New Areas for Additional Information The redesigned structure includes three new areas that can hold additional information about the rack and tubes, enhancing traceability and documentation.
Overall, this redesigned 2D tube offers advanced features for maximum efficiency, safety, and quality in your lab. Tube Centering Anti-freeze gradient Easy Lock Curved Well Rim Orientation Code

Suitable for the following SAFE® devices and accessories

Safe Handgerät Capper Decapper

Link to the product

8-Channel Capper

Link to the product

96-Channel Capper

Link to the product

LVL Rack Reader

Link to the product

TLM 864

Link to the product

Handheld 1-Channel Capper

Link to the product

Single Tube Reader

Link to the product

LVL SBS 96 Rack with Tubes

Link to the product

Tube Presenter 96

Link to the product

Rack Systems

Link to the product

Defrost Roll

Link to the product

Tube Reformator

Link to the product

LVL SBS 96 Empty Rack

SAFE® RACKS

SAFE® YOU CAN TOUCH

LVL Sample Pack Tubes & Rack
Order the LVL Sample Pack now with sample tubes in the following volumes:
300µl – 8ml, including the new SAFE® Rack GEN3

TUBE LASER MARKER Easily label tubes with laser LEARN MORE Say "Goodbye" to Tag & Pen!

Technical Drawings

SX260 G3

SX260 G3

SX260 G3

SX260 G3

SAFE® SX260 SAMPLE TUBES - COMPACT AND EFFICIENT SAMPLE STORAGE

SAFE® 260 SAMPLE TUBES – COMPACT AND EFFICIENT SAMPLE STORAGE

The SAFE® 260 sample tubes from LVL technologies offer an outstanding solution for compact and efficient sample storage. With a usable working volume of 260 µl and a height of only 20.3 mm including screw cap, these tubes are true space savers.

Ideal for laboratory applications where maximum space utilization is important. The 2D-coded tubes ensure easy identification and traceability of your samples. These tubes are perfect for use in automated systems and for long-term storage in ultra-low temperature freezers. Thanks to the high-quality materials and precise processing, the SAFE® 260 sample tubes offer a reliable and safe solution for your sample storage.

Discover the efficiency and space savings that SAFE® 260 sample tubes can offer your laboratory. Take advantage of this innovative solution and improve your laboratory processes. The tubes are chemical resistant and can be used at extreme temperatures, making them a versatile choice for various laboratory applications.

Rely on the quality and reliability of SAFE® 260 sample tubes and ensure the integrity of your samples.
