MI500
2D tubes with external threads for large volume samples
![](https://a8b746f2.rocketcdn.me/wp-content/uploads/2023/11/MI_500.png)
![](https://a8b746f2.rocketcdn.me/wp-content/uploads/2023/11/MI500-neu.png)
![](https://a8b746f2.rocketcdn.me/wp-content/uploads/2023/11/MI_500_Nolabel.png)
![](https://a8b746f2.rocketcdn.me/wp-content/uploads/2023/11/MI500-neu-leer.png)
![](https://a8b746f2.rocketcdn.me/wp-content/uploads/2023/11/MI_500_Nocap.png)
![](https://a8b746f2.rocketcdn.me/wp-content/uploads/2023/11/MI_500_Nocap_Nolabel.png)
![](https://a8b746f2.rocketcdn.me/wp-content/uploads/2023/11/MI_500-80x80.png)
![](https://a8b746f2.rocketcdn.me/wp-content/uploads/2023/11/MI500-neu-84x80.png)
![](https://a8b746f2.rocketcdn.me/wp-content/uploads/2023/11/MI_500_Nolabel-80x80.png)
![](https://a8b746f2.rocketcdn.me/wp-content/uploads/2023/11/MI500-neu-leer-84x80.png)
![](https://a8b746f2.rocketcdn.me/wp-content/uploads/2023/11/MI_500_Nocap-80x80.png)
![](https://a8b746f2.rocketcdn.me/wp-content/uploads/2023/11/MI_500_Nocap_Nolabel-80x80.png)
Test the MI500 now!
![](https://a8b746f2.rocketcdn.me/wp-content/uploads/2023/11/1D_HR_Side_Code.png)
![](https://a8b746f2.rocketcdn.me/wp-content/uploads/2023/11/Side_Code_Gen2_EN.png)

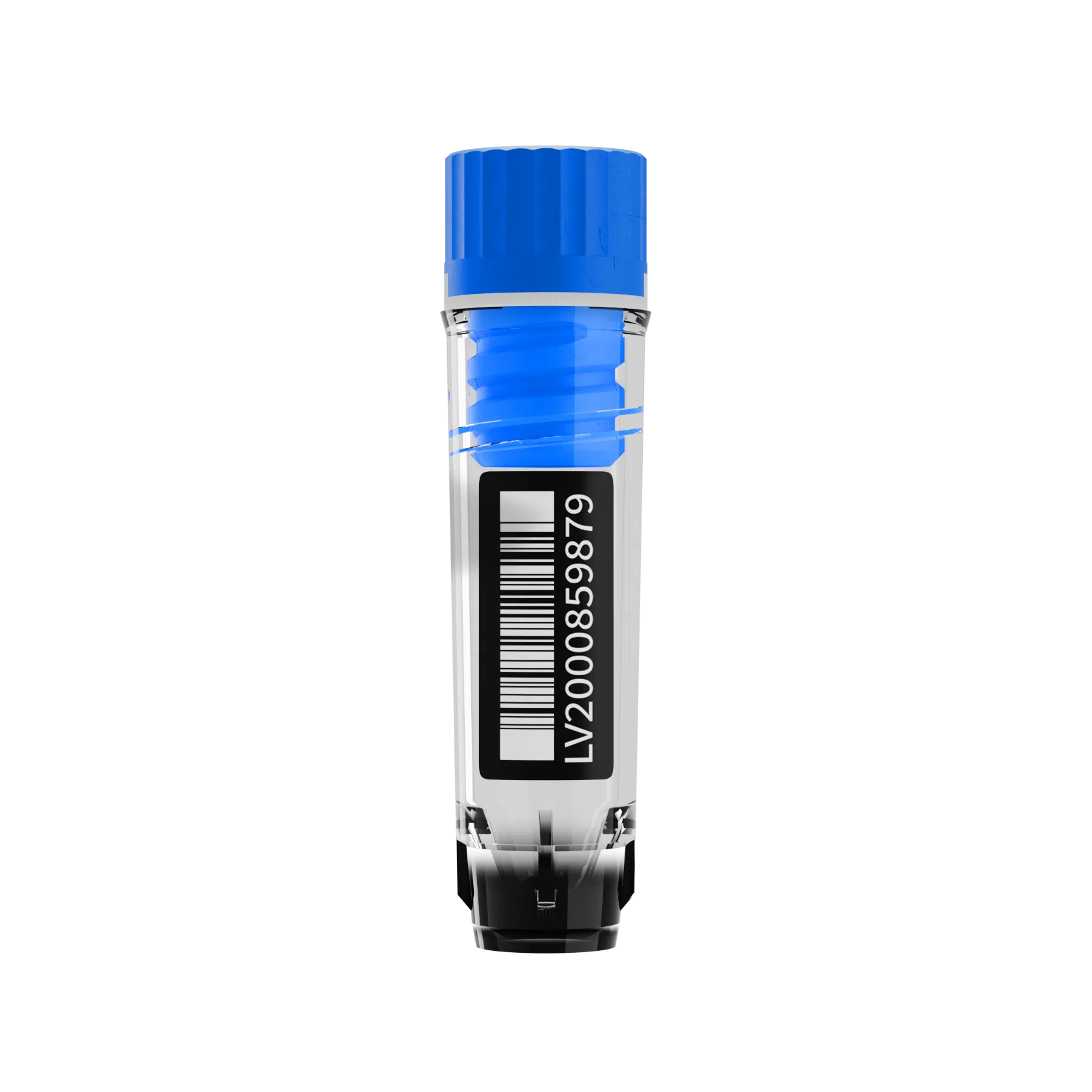

SAFEĀ® MI500
The Traditional and Cost-Effective 2D Tube for Push Cap Closure!
MI500 at a Glance:
- Working Volume: 480 Āµl
- Height: 33,4 / 34,2 mm (Tube with Screw Cap / Tube with Screw Cap in Rack)
- Storage Temperature: Down to -196Ā°C (Gas phase, liquid nitrogen)
- Secure storage through unique tube coding
- Optional Side Coding: 2D and HR
- Space-saving storage with standardized SBS rack.
- Tubes are sealed with internal thread screw caps.
- The tubes can be delivered in bulk or pre-racked
- Available as production sterile or e-beam sterilized
Rack Format
SBS 96IT
Working Volume
500 Āµl
Storage Temperature
Up to -196Ā°C
All the benefits of SAFEĀ® at a glance
![](https://a8b746f2.rocketcdn.me/wp-content/uploads/2024/07/LVL_SAFE_Anwendungsbeispiele_Icons_Zusammen_U-Buttom-hell-web_NEW.png)
All the benefits of SAFEĀ® at a glance
![LVL_Advantages_Slim_Light_01](https://a8b746f2.rocketcdn.me/wp-content/uploads/2024/06/LVL_Advantages_Slim_Light_01.png)
![](https://a8b746f2.rocketcdn.me/wp-content/uploads/2024/06/LVL_Advantages_Slim_Light_02.png)
Always perfectly sealed
Choose a closure system to get more information:
Technical Specifications
MI 500
SAFEĀ® 2D Sample Tubes for Automation
In standardized SBS Rack
Dimensions LxW: 127.76 x 85.48 (+/- 0.25 mm)
![](https://a8b746f2.rocketcdn.me/wp-content/uploads/2023/11/MI_500-1024x1024.png)
Optional Sterilization E-Beam / ETO
Availability in Rack, Bulkware
Outer diameter: 9.00 mm
Working Volume
with Screw Cap | 480 Āµl |
with Push Cap | 550 Āµl |
Storage Temperature
with Screw Cap | -196Ā°C |
with Push Cap | -80Ā°C |
Side Code
Barcode 1D | optional |
Human Readable | optional |
Tube Height
without Cap | 27.0 mm |
with Screw Cap | 33.4 mm |
with Push Cap | 28.5 mm |
Screw Caps
pre-capped | Yes |
with Cap-Rack | Yes |
Bulkware | Yes |
Rack Height
non capped Tubes | 27.6 mm |
screw capped Tubes | 34.2 mm |
with Rack Lid | 38.6 mm |
Find Item Number
CENTERED
TUBES
Slanted Dome Lids
MORE
FROST!
Overall, this redesigned 2D tube offers advanced features for maximum efficiency, safety, and quality in your lab.
Suitable for the following SAFEĀ® devices and accessories
SAFEĀ® YOU CAN TOUCH
![LVL Sample Pack Tubes & Rack](https://a8b746f2.rocketcdn.me/wp-content/uploads/2023/11/Promo-Kit_Kalender_Single-1-1024x904.jpg)
Order the LVL Sample Pack now with sample tubes in the following volumes:
300Āµl ā 8ml, including the new SAFEĀ® Rack GEN3
Learn more about LVL SAFEĀ® products
The LVL Tube Laser Marker TLM 864:
Although the automation-friendly Data-Matrix code on the bottom of storage tubes has been standard for many yearsāand has greatly simplified sample handlingāmany users want to mark the tubes with their specific information. At the same time, they want to move away from time-consuming and unreliable labeling methods.
For this need, LVL has developed a fully automatic tube laser marker. The TLM 864 can automatically laser-mark SAFEĀ® tubes in SBS 96, SBS 48, and SBS 24 formats from two sides and link the information in a database with the 2D code previously lasered during production. Up to 500 tubes per hour can be coded from nine SBS/ANSI positions.
LVL`D UP – Whatās New, Whatās Different?
A completely redesigned automation-friendly rack and tube take our long-term storage tubes to the next level. Join us and upgrade your sample storage. In addition to more than 13 different cap colors and countless possibilities for customizing tube and rack coding, we adapt your sample storage system to your needs and preferences.
Latest News from SLAS 2023 in Boston! – Our Product Manager Waldemar Janzen explains the functions of the TLM864.
SAFEĀ® MI500 SAMPLE TUBES - MICROLITER SAMPLE STORAGE
The SAFEĀ® MI500 sample tubes from LVL technologies provide an efficient solution for microliter sample storage. With a usable volume of 500 Āµl, these tubes are ideal for precise laboratory applications. The 2D-coded tubes ensure easy identification and traceability, while the robust design allows for safe storage in ultra-low temperature freezers.
Perfect for labs that rely on maximum efficiency and reliability. The SAFEĀ® MI500 sample tubes offer excellent chemical resistance and temperature tolerance, making them suitable for a wide range of laboratory applications. Thanks to the high quality and durability of these tubes, you can be confident that your samples are safe and protected.
Enhance your lab processes with the SAFEĀ® MI500 sample tubes and experience the benefits of this innovative solution. Trust the quality and efficiency of the SAFEĀ® MI500 sample tubes to ensure the integrity of your samples.
