CLOSURE SYSTEMS FOR DEEP WELL PLATES AND TUBE RACKS
LVL technologies offers a wide range of high-quality closure systems for deep well plates and tube racks. Our solutions include 8-cap strips, 96-cap mats, and specialized closures for square and round well plates made from TPE and EVA. These closure systems are temperature resistant up to -80°C, making them ideal for the safe storage and handling of your samples. The closures are pierceable for sample extraction and addition, providing an airtight seal.
![_DSC5539_B](https://a8b746f2.rocketcdn.me/wp-content/uploads/2023/11/DSC5539_B-1024x768.png)

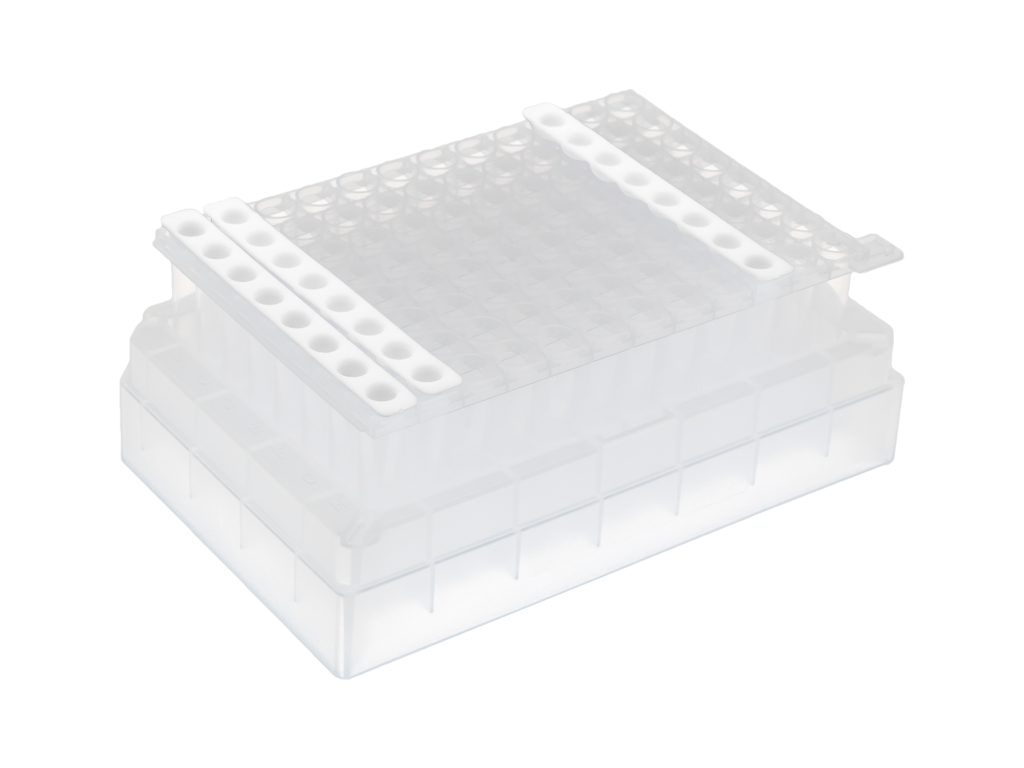

8-Cap Strips
Item Number | Quantity per Unit |
---|---|
227.08 | 1000 |
Compatible tube racks | 225.96.BL , 225.96.ID , 222.96.ID , 222.96.BL , 325.96.BL , 325.96.ID |

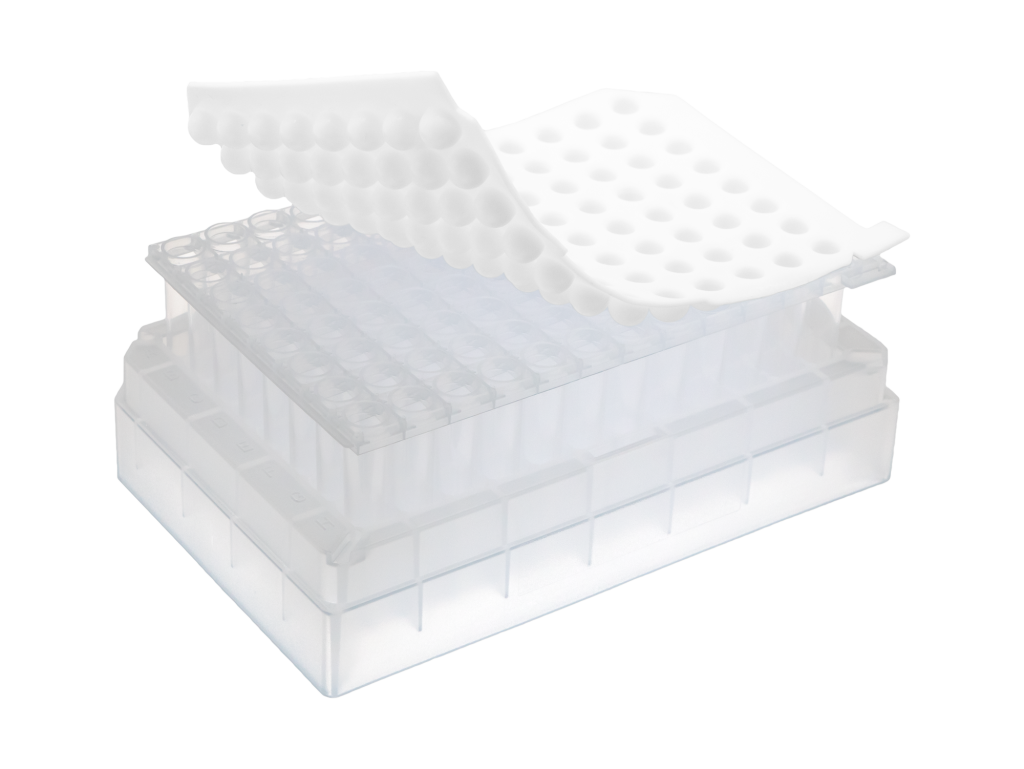

96-Cap Mats
- 96-cap mats for airtight sealing
- Material: TPE (Thermoplastic Elastomers)
- Pierceable with a needle for
sample extraction and addition - Temperature resistant to -80°C
Item Number | Quantity per Unit |
---|---|
227.96 | 100 |
Compatible tube racks | 225.96.BL , 225.96.ID , 222.96.ID , 222.96.BL , 325.96.BL , 325.96.ID |
![_DSC5563_B](https://a8b746f2.rocketcdn.me/wp-content/uploads/2023/11/DSC5563_B-3-1024x769.png)
![_DSC6220_B](https://a8b746f2.rocketcdn.me/wp-content/uploads/2023/11/DSC6220_B-1024x683.png)

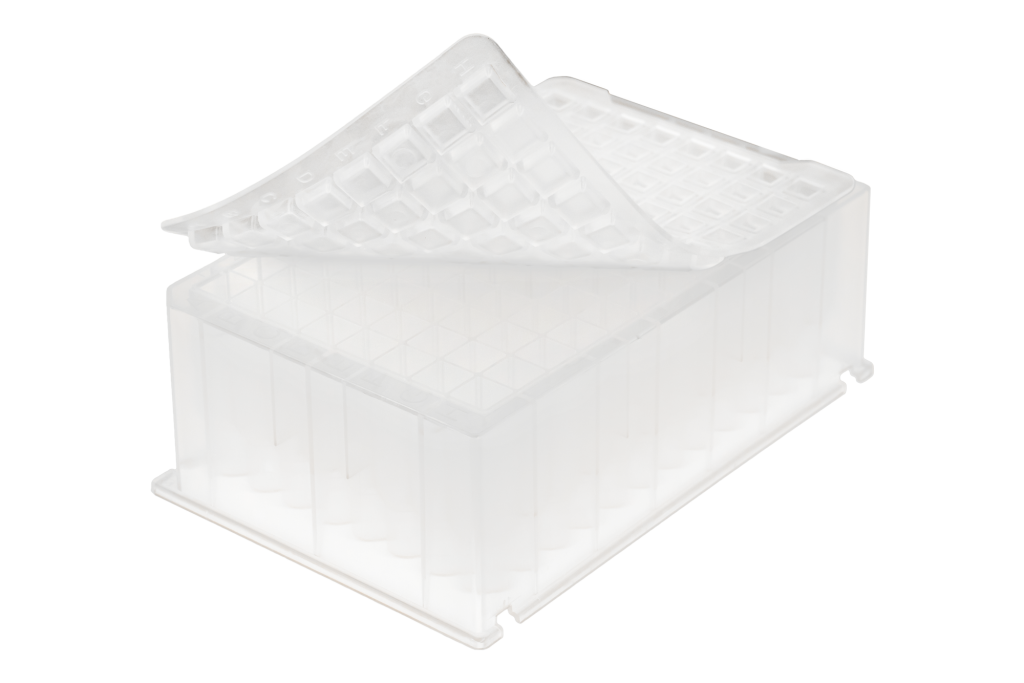

Sealing of 96 square well plates - EVA
- For 2.5 ml deep well plates
- Material: EVA (Ethylene Vinyl Acetate)
- For airtight sealing
- Pierceable with a needle for
sample extraction and addition - Temperature resistant up to -80°C
Item Number | Quantity per Unit |
---|---|
225.VM.2.5 | 100 |
Compatible deep well plates | 225.DW.2.2qv.PP, 225.DW.2.5.PP |

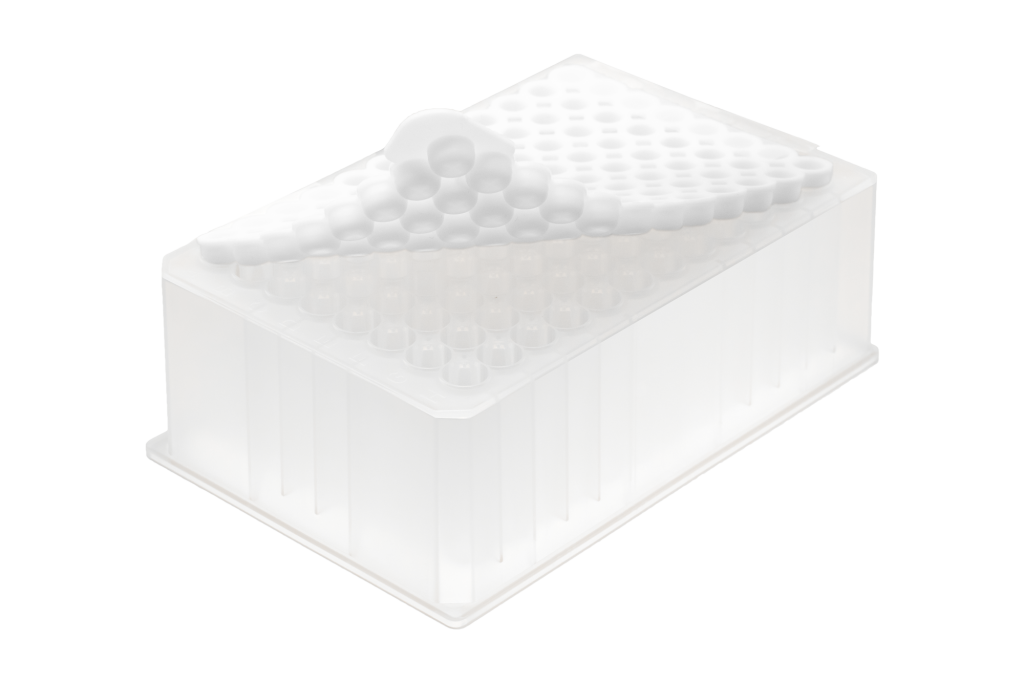

Sealing of 96 round well plates - TPE
- For 0.3 ml to 1.2 ml deep well plates
- Material: TPE (Thermoplastic Elastomer)
- For airtight sealing
- Pierceable with a needle for
sample extraction and addition - Temperature resistant up to -80°C
Item Number | Quantity per Unit |
---|---|
225.VM.1.2 | 100 |
Compatible deep well plates | 225.DW.2.0.PP20, 225.DW.1.2.PP, 225.DWVB.1.0.PP, 225.DWVB.0.5.PP |
![_DSC6211_B](https://a8b746f2.rocketcdn.me/wp-content/uploads/2023/11/DSC6211_B-1024x683.png)
![](https://a8b746f2.rocketcdn.me/wp-content/uploads/2023/11/225.VM_.5.0-1024x683.jpg)

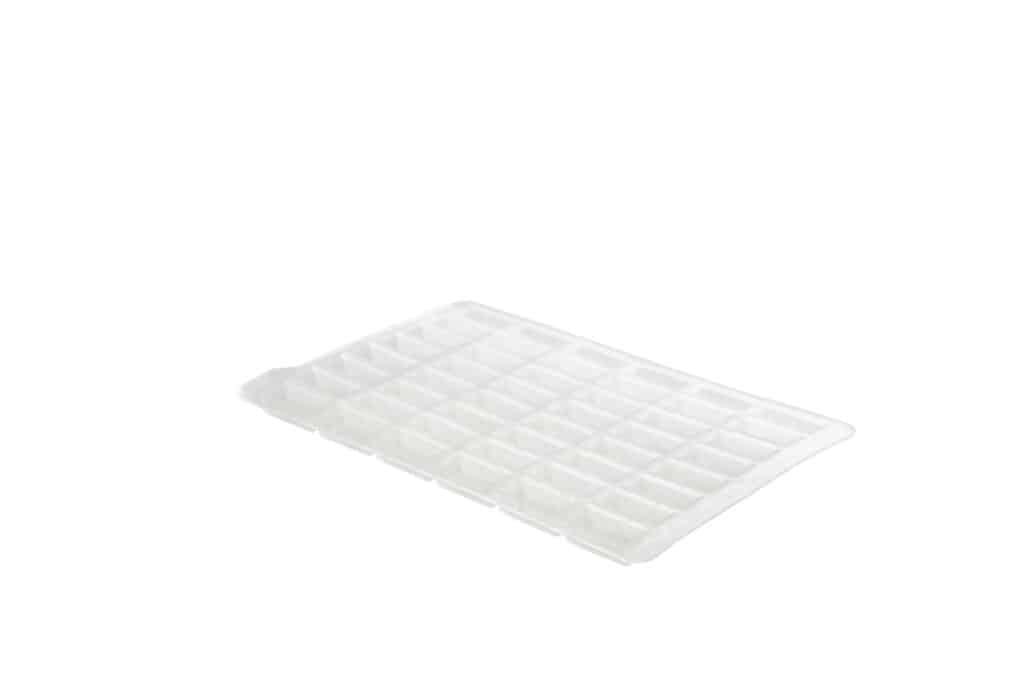

Sealing of 48 square well plates - EVA
- For 2,0 ml Deep Well Plates
- Material: EVA (Ethylene Vinyl Acetate)
- For airtight sealing
- Temperature resistant up to -80°C
Item Number | Quantity per Unit |
---|---|
225.VM.5.0 | 100 |
Compatible deep well plates | 225.DW.5.0.PP |
Learn more about LVL SAFE® products
The LVL Tube Laser Marker TLM 864:
Although the automation-friendly Data-Matrix code on the bottom of storage tubes has been standard for many years—and has greatly simplified sample handling—many users want to mark the tubes with their specific information. At the same time, they want to move away from time-consuming and unreliable labeling methods.
For this need, LVL has developed a fully automatic tube laser marker. The TLM 864 can automatically laser-mark SAFE® tubes in SBS 96, SBS 48, and SBS 24 formats from two sides and link the information in a database with the 2D code previously lasered during production. Up to 500 tubes per hour can be coded from nine SBS/ANSI positions.
