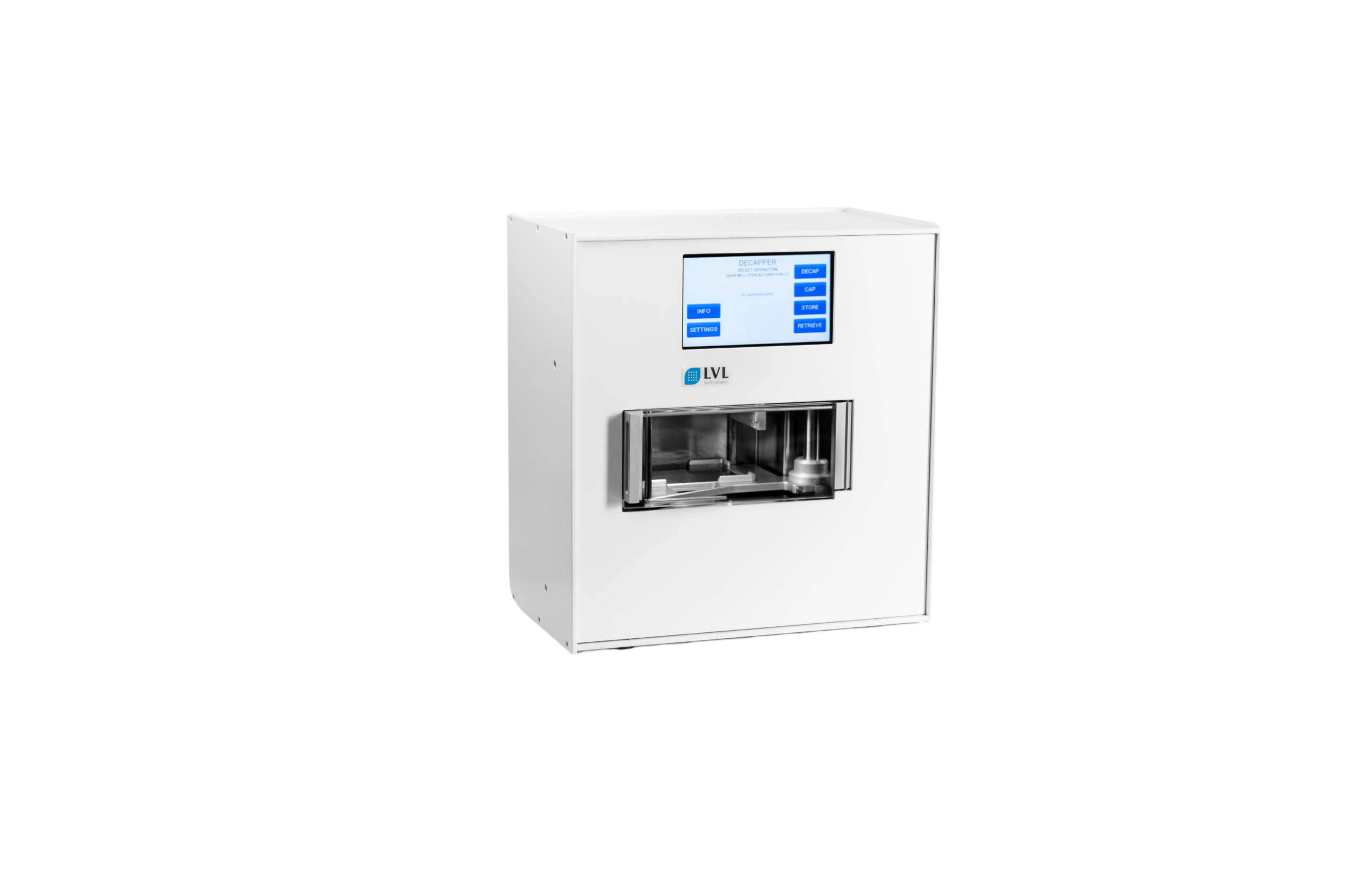

SAFE® CAP 96 CHANNEL IT
The fully automatic, integrable 96-channel capper/decapper for SAFE® internal thread screw caps
- Opens and closes a tube-filled rack at once
- Screw caps can either be parked on a cap rack or held on the bits
- Usable as an integrated or standalone device
- The touchscreen allows easy navigation through the system
- Capping and decapping in approximately 45 seconds each
- Latest cap driver technology: Cap drivers with spring-loaded steel balls for gentle use with screw caps
- Innovative and low-maintenance rack-to-head technology: The rack is guided to the capper head
- Automatic height detection
- Automatic rack barcode detection
- Small footprint: 408 x 234 mm
- Height: 388 mm
Format
SBS 96
Thread Type
Internal thread
Automation Type
Fully automatic
Discover our Decapper:
Item Number
| CDC-96CH-IT-DD |
Process Speed:
| Decapping | 42 seconds |
| Capping | 45 seconds |
Dimensions:
| Height: | 408 mm |
| Width: | 234 mm |
| Depth: | 388 mm |
Weight:
| In Kilograms | 23 |
Power connection
| In Volts | 110/230 |
SEE IT IN ACTION
Suitable for the following SAFE® Tubes and Accessories
Technical Drawings
SAFE® CAP 96 CHANNEL IT VERSION CAPPER/DECAPPER - PRECISE CAPPING WITH INTERNAL THREAD
The SAFE® CAP 96 Channel IT Version Capper/Decapper from LVL technologies offers a precise solution for simultaneously capping and decapping up to 96 internally threaded tube caps. This device is ideal for laboratories that need fast and reliable capping and decapping.
The SAFE® CAP 96 Channel IT Version minimizes manual effort and increases efficiency, optimizing your laboratory processes. The device can be used either as an integrated or standalone system. The touchscreen allows for easy navigation through the system, while the innovative and low-maintenance rack-to-head technology ensures that the rack is guided to the capper head.
The screw caps can either be parked on a cap rack or held on the bits. Capping and Decapping in Approximately 45 Seconds With the latest Cap Driver technology, which uses spring-loaded steel balls for gentle handling of screw caps, the SAFE® CAP 96 Channel IT Version offers automatic height detection and automatic rack barcode recognition.
Take advantage of the SAFE® CAP 96 Channel IT Version Capper/Decapper to improve your sample processing and ensure the integrity of your samples. Rely on the quality and reliability of LVL technologies and experience efficient and secure capping and decapping.
