XLX2000

2D tubes with external threads for large volume samples

Try XLX2000 now!

SAFE® Tubes >> 48 XT >> XLX2000

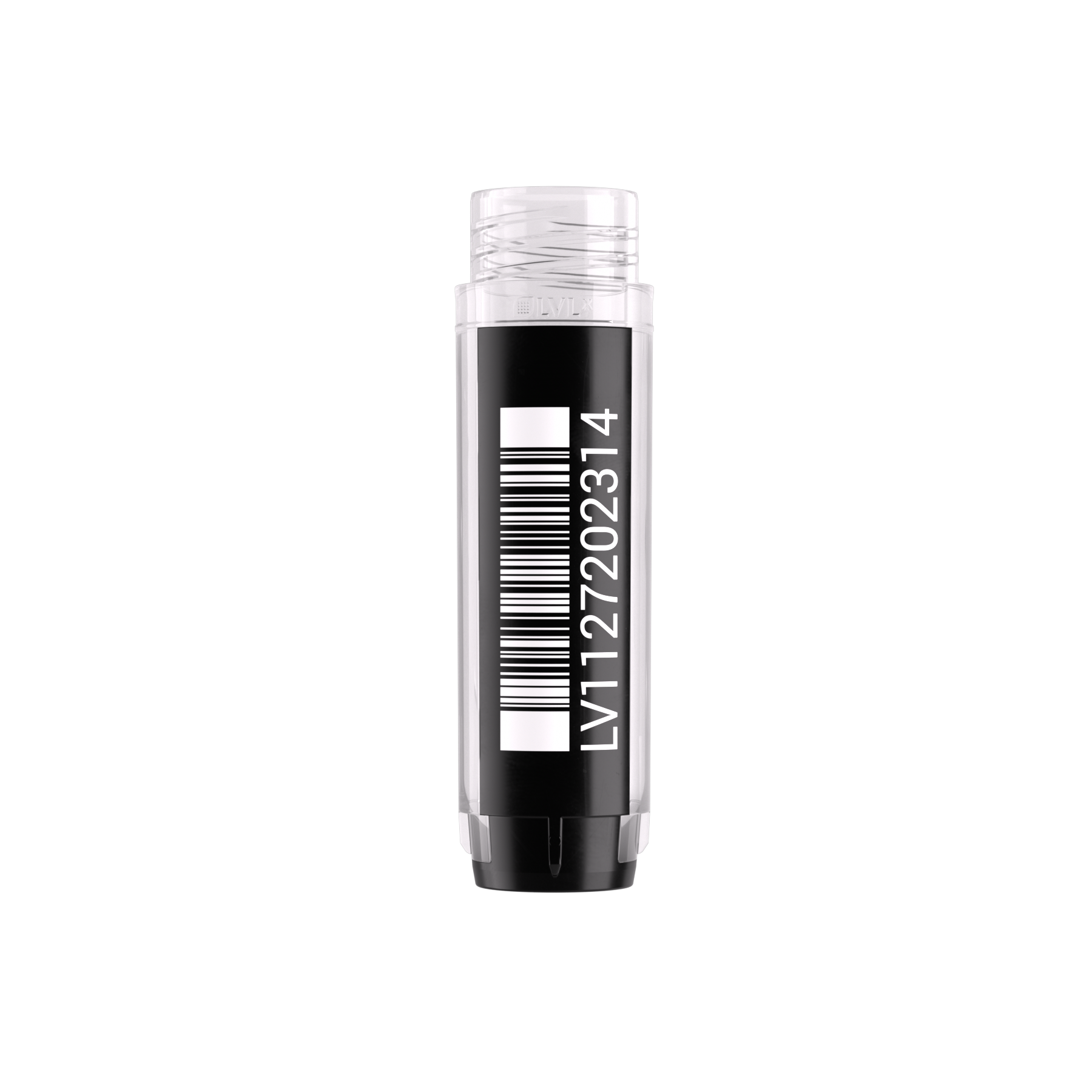

SAFE® XLX2000

When 2ml is a must! The cryo tube with a 2D code.

XLX2000 at a Glance:

  • Working Volume: 2.000 µl
  • Height: 45,6 / 46,0 mm (Tube with Screw Cap / Tube with Screw Cap in Rack)
  • Storage Temperature: Down to -196°C (Gas phase of liquid nitrogen)
  • Secure storage through unique coding on the bottom of the tubes
  • Optional Side Coding: 2D and HR
  • Space-saving storage with standardized SBS rack.
  • Tubes have an external thread – minimizes the risk of cross-contamination
  • The tubes can be delivered in bulk or pre-racked
  • Available as production sterile or e-beam sterilized
  • Designed in Germany, Produced in the European Union
Format
SBS 48
Working Volume
2.000 µl
Temperarture
Up to -196°C

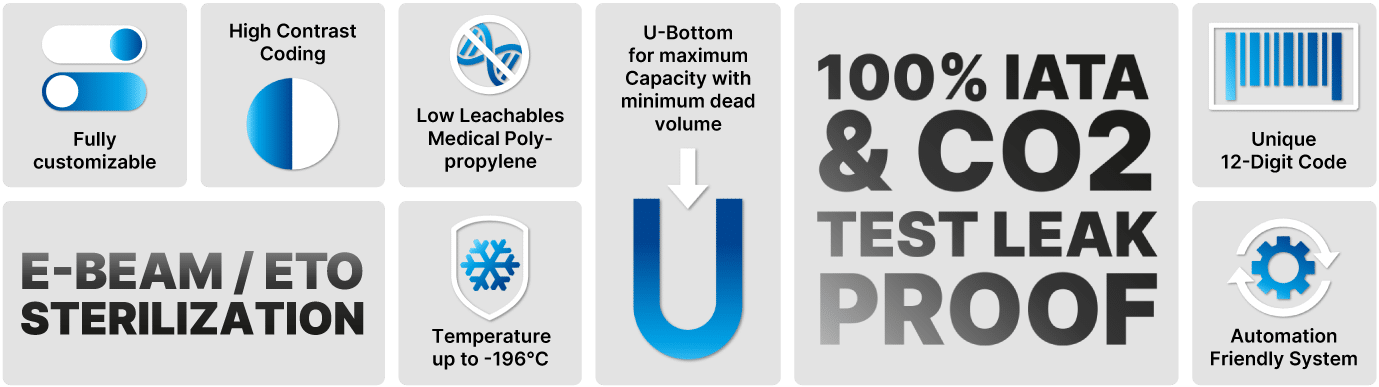

All the benefits of SAFE® at a glance

All the benefits of SAFE® at a glance

Redesigned 2D Tubes

The innovative SAFE® 2D tubes have been thoroughly redesigned to offer top performance and user-friendliness.

Clearly identifiable racks and tubes secure your samples for decades when stored correctly.

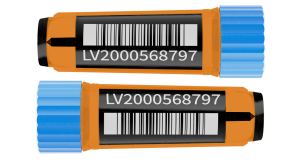

In addition to visual differentiation through various cap colors, the tube features fixed coding, space for individual coding, and space for your logo/study project or similar. The tube coding ensures that your samples are triply secured and can be identified both visually (HR code) and by using the appropriate SAFE® readers (2D/1D code).

null
null

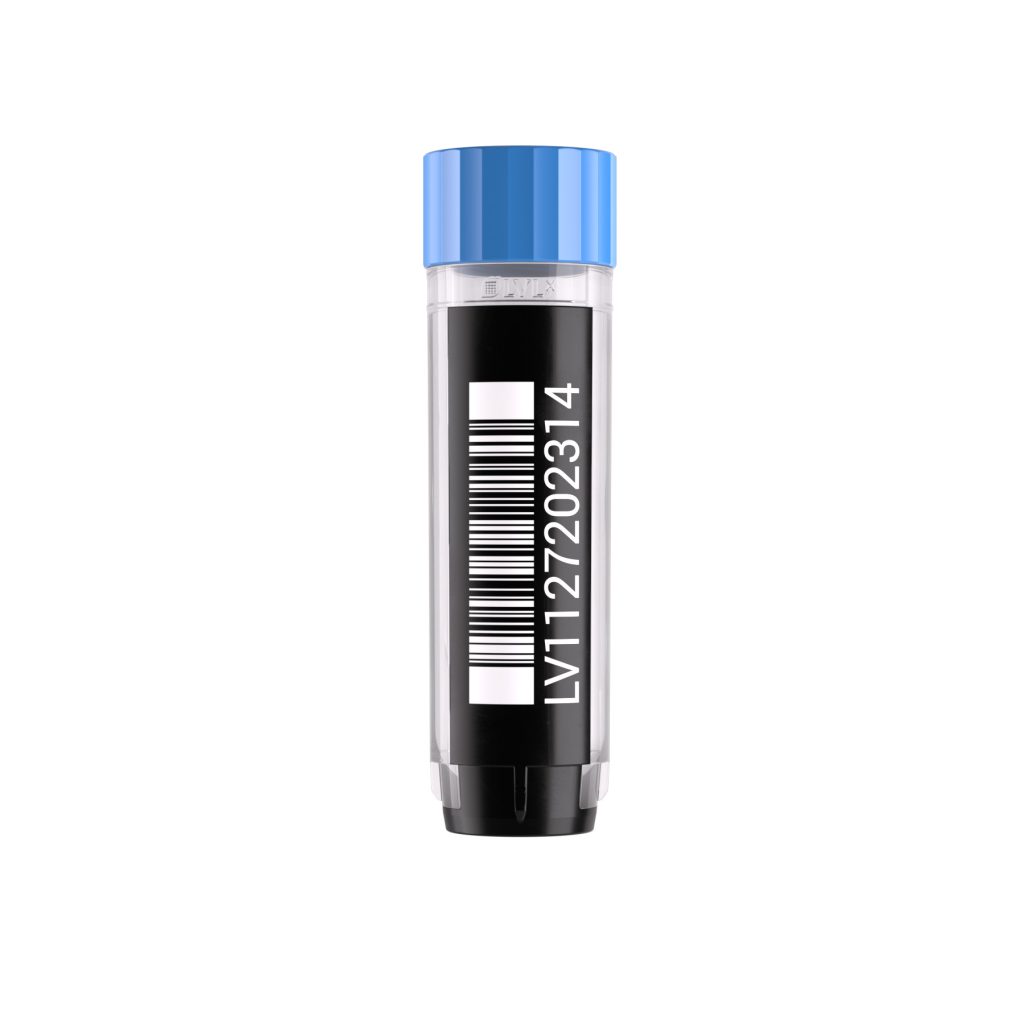

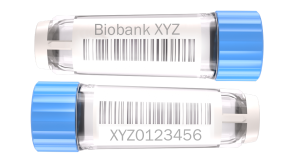

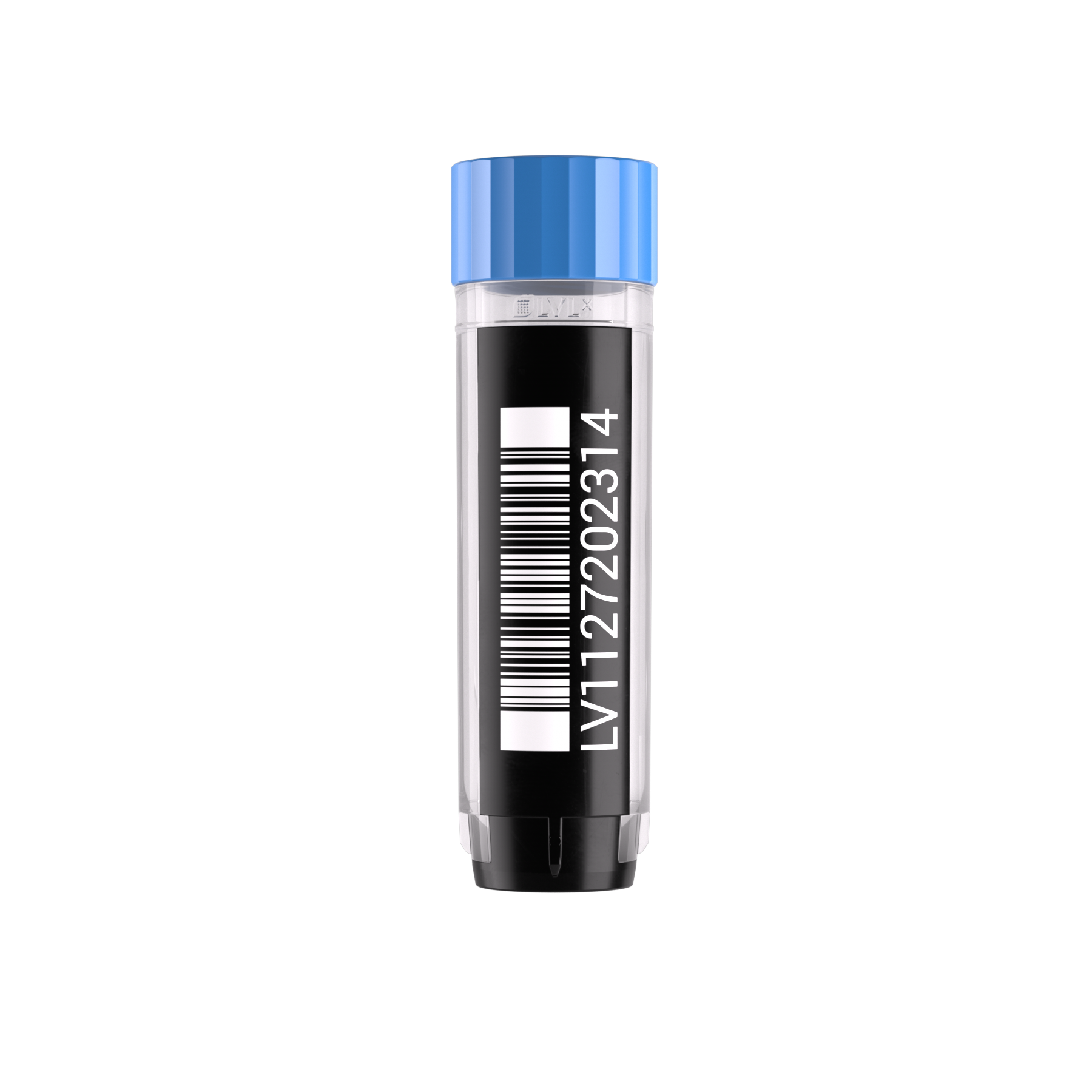

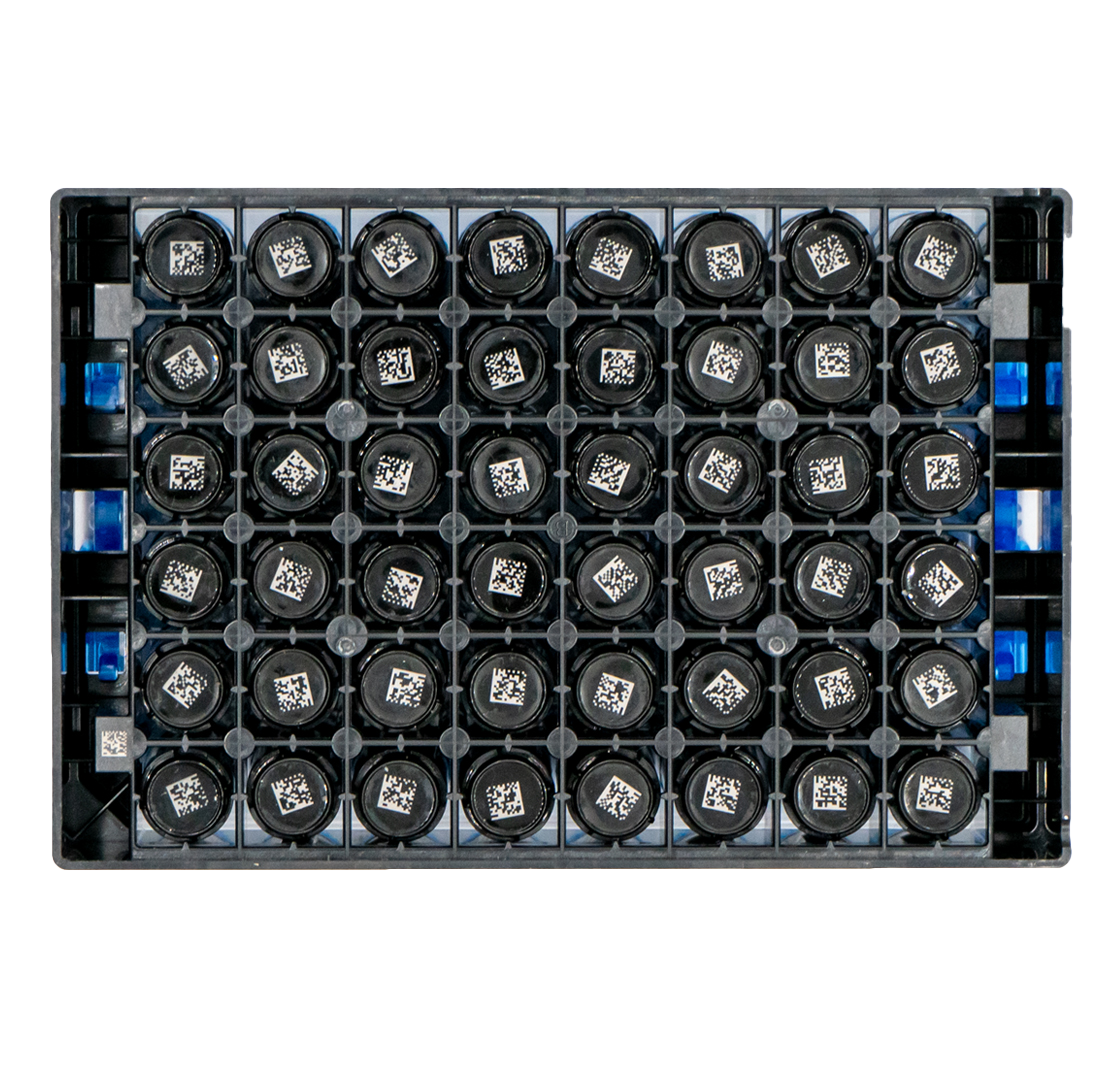

1D Side Code / HR Side Code The 1D side code matches the bottom coding of the tube and primarily secures the valuable sample contents. Additionally, the HR side code presents the coding in readable text. This triple assurance – side code, bottom code, and HR code – ensures that your samples are not only safe but also easily identifiable. 2D Bottom Code / Protective Rim The tube features a precise 2D bottom code for quick identification. A special protective rim shields the code from mechanical impacts and prevents scratches, ensuring the integrity of your samples. The ideal tube for your sample storage: Multiple coding options make your sample secure, traceable, and the modern tube design is automation-friendly. Show Tube Show Rack Space for Individual Coding The tube provides ample space for individual coding, allowing you to add specific information about your lab or samples. The black side surface is laser-etched with the LVL logo by default and can be customized to your specifications at no additional cost. THE PERFECT TUBE! The tube provides ample space for individual coding, allowing you to add specific information about your lab or samples. The black side surface is laser-etched with the LVL logo by default and can be customized to your specifications at no additional cost. THE PERFECT RACK! Perfect for Automation: The crescent-shaped guide rails of our racks allow tubes to be quickly and collision-free placed in our rack. Side Rack Coding The side coding as a 1D code and readable plain text on the rack allows for automatic and visual retrieval of your sample racks. The rack code consists of unique, 12-digit codes. Show Tube Show Rack The revised design includes three new areas that can hold additional information about the rack and tubes to improve traceability and documentation. Overall, this redesigned 2D tube offers advanced features for maximum efficiency, safety, and quality in your lab. Individual Coding Bottom Orientation Code

Always perfectly sealed

Choose a closure system to get more information:
Closure per

Screw Cap

Learn More
Closure per

Push Cap

Learn More

Technical Specifications

XLX 2000

SAFE® 2D Sample Tubes for Automation

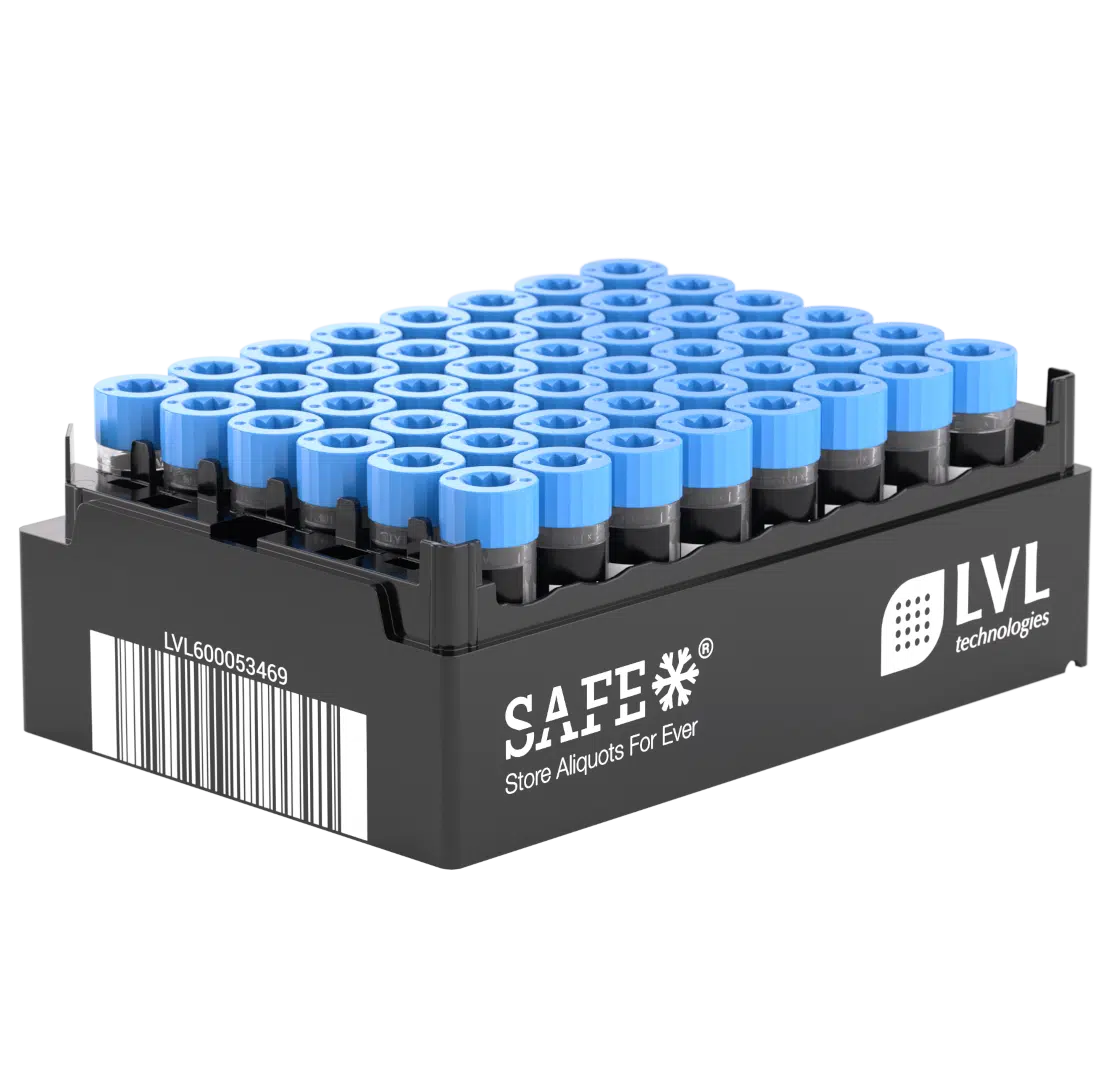

In standardized SBS Rack

Dimensions LxW: 127.76 x 85.48 (+/- 0.25 mm)

Optional Sterilization E-Beam / ETO

Availability in Rack, Bulkware

Outer diameter 13.00 mm

Working Volume

with Screw Cap 2.000 µl
with Push Cap 2.000 µl

Storage Temperature

with Screw Cap -196°C
with Push Cap n/a

Side Code

Barcode 1D optional
Human Readable optional

Tube Height

without Cap 44.0 mm
with Screw Cap 45.6 mm
with Push Cap n/a

Screw Caps

pre-capped Yes
with Cap-Rack Yes
Bulkware Yes

Rack Height

non capped Tubes 44.5 mm
screw capped Tubes 46.0 mm
with Rack Lid 50.2 mm

Find Item Number

  • WORKING VOLUME

  • THREAD TYPE

  • SIDE CODE

  • SCREW CAPS

  • CAP COLOR

  • RACK

  • RACK CODING

  • STERILITY

  • PACKING UNIT

  • Reset

PERFECTLY
CENTERED
TUBES Automation-Friendly
Slanted Dome Lids The automation-friendly slanted dome lids and the curved indentation rim ensure precise tube centering, reduce collisions, and optimize workflow in automated systems. Automation-Friendly Closure: The closure is designed to be automation-friendly, allowing seamless integration into automated processes. EASY LOCK Anti-Frost Gradient: NO
MORE
FROST! An anti-frost gradient effectively prevents ice formation, which is particularly advantageous in low-temperature environments. Curved Indentation Rim Guides the tube safely and reduces collisions. THE PERFECT RACK! LVL`D UP 2D SAFE® Tube Rack: Advanced Features for Maximum Efficiency, Safety, and Quality in Your Lab THE PERFECT RACK! LVL`D UP 2D SAFE® Tube Rack: Advanced Features for Maximum Efficiency, Safety, and Quality in Your Lab 3 New Areas for Additional Information The redesigned structure includes three new areas that can hold additional information about the rack and tubes, enhancing traceability and documentation.
Overall, this redesigned 2D tube offers advanced features for maximum efficiency, safety, and quality in your lab. Tube Centering Anti-freeze gradient Easy Lock Curved Well Rim Orientation Code

Suitable for the following SAFE® devices and accessories

Link to the product

6 channel capper

Link to the product

48-Channel Capper

Link to the product

LVL Rack Reader

Link to the product

TLM 864

Link to the product

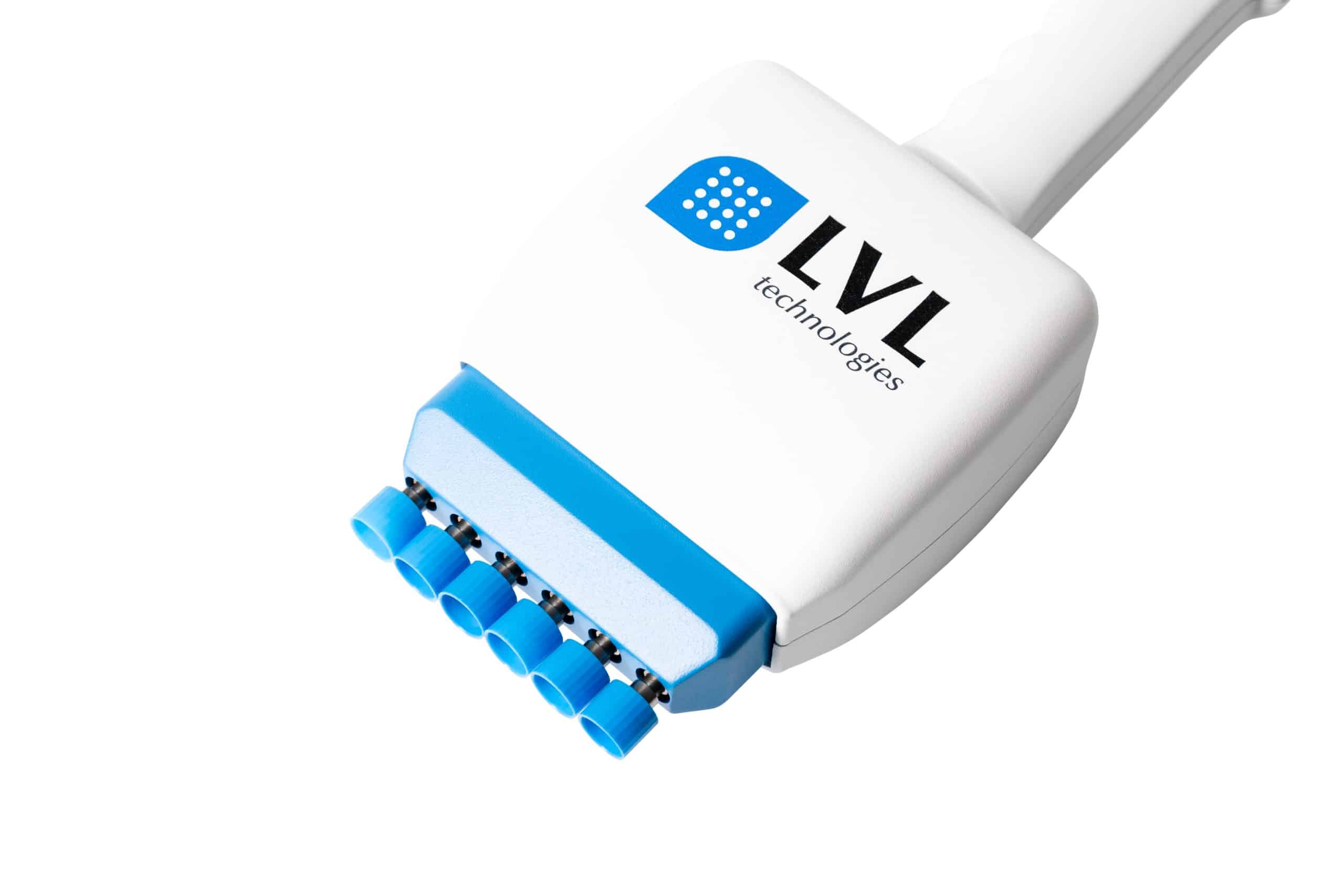

Handheld 1-Channel Capper

Link to the product

Single Tube Reader

Link to the product

LVL SBS 48 rack with tubes

Link to the product

Tube Presenter 48

Link to the product

Rack Systeme

Link to the product

Defrost Roll
500

Link to the product

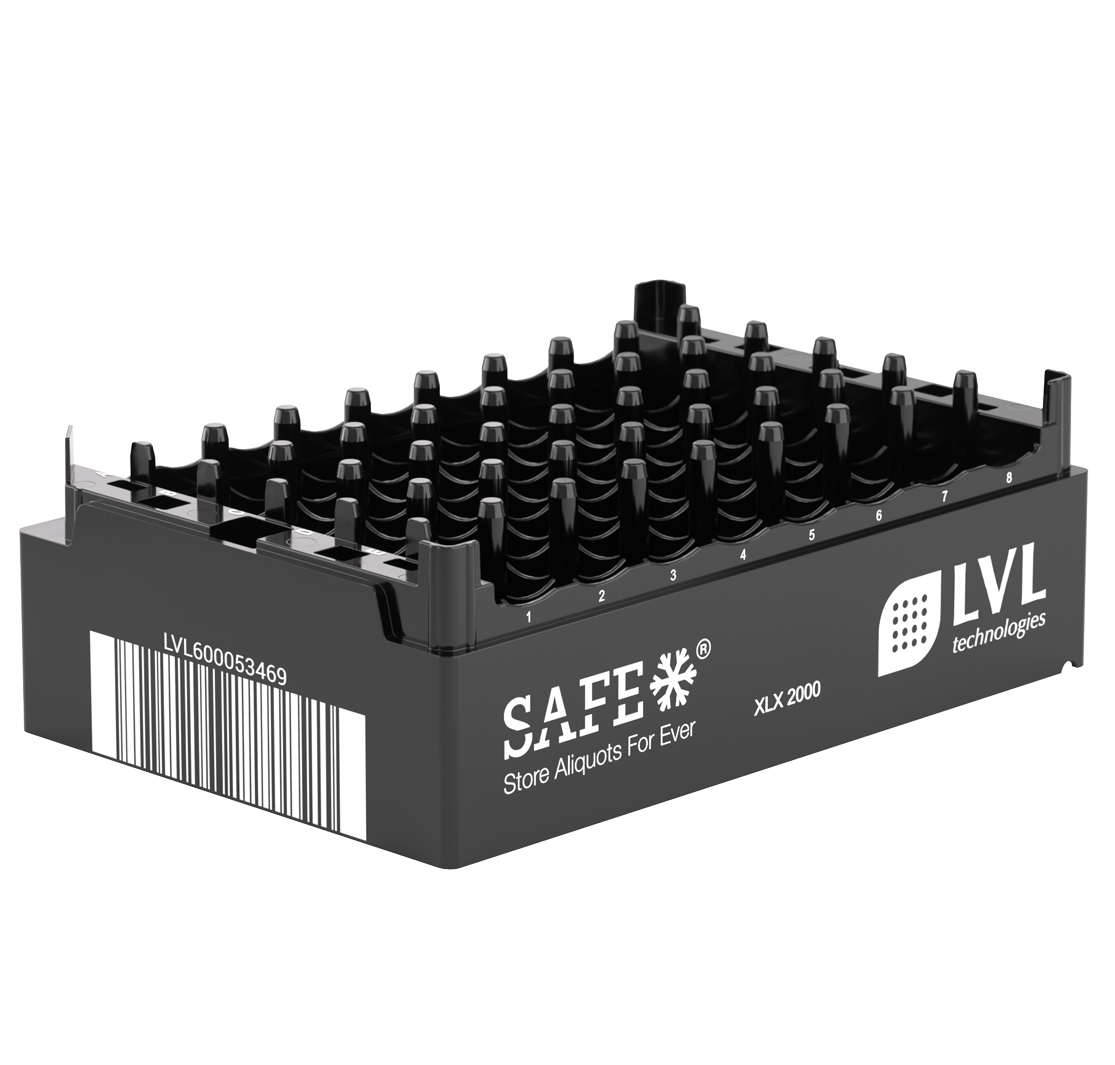

LVL SBS 48 empty rack

SAFE® RACKS

SAFE® YOU CAN TOUCH

LVL Sample Pack Tubes & Rack
Order the LVL Sample Pack now with sample tubes in the following volumes:
300µl – 8ml, including the new SAFE® Rack GEN3

TUBE LASER MARKER Easily label tubes with laser LEARN MORE Say "Goodbye" to Tag & Pen!

Technical Drawings

XLX2000 G3

XLX2000 G3

XLX2000 G3

XLX2000 G3

SAFE® XLX2000 SAMPLE TUBES - OPTIMAL STORAGE FOR LARGE SAMPLES

The SAFE® XLX2000 sample tubes from LVL technologies offer an optimal solution for storing large sample volumes. With a usable volume of 2000 µl, these tubes are ideal for intensive laboratory applications. The 2D-coded tubes ensure easy identification and traceability, while the robust design allows for safe storage in ultra-low temperature freezers.

Perfect for laboratories that rely on reliable and large-volume sample storage. The SAFE® XLX2000 sample tubes provide an excellent combination of volume and stability, making them ideal for storing samples in extreme environments.

Thanks to the high quality and durability of these tubes, you can be confident that your samples are safe and protected. Leverage the benefits of the SAFE® XLX2000 sample tubes for your research and laboratory processes.

Rely on the quality and reliability of the SAFE® XLX2000 sample tubes to improve the efficiency and safety of your laboratory processes.

Learn more about LVL SAFE® products

You are currently viewing a placeholder content from Vimeo. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.

More Information
Unblock content Accept required service and unblock content

The LVL Tube Laser Marker TLM 864:
Although the automation-friendly Data-Matrix code on the bottom of storage tubes has been standard for many years—and has greatly simplified sample handling—many users want to mark the tubes with their specific information. At the same time, they want to move away from time-consuming and unreliable labeling methods.

For this need, LVL has developed a fully automatic tube laser marker. The TLM 864 can automatically laser-mark SAFE® tubes in SBS 96, SBS 48, and SBS 24 formats from two sides and link the information in a database with the 2D code previously lasered during production. Up to 500 tubes per hour can be coded from nine SBS/ANSI positions.

You are currently viewing a placeholder content from Vimeo. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.

More Information
Unblock content Accept required service and unblock content

LVL`D UP – What’s New, What’s Different?

A completely redesigned automation-friendly rack and tube take our long-term storage tubes to the next level. Join us and upgrade your sample storage. In addition to more than 13 different cap colors and countless possibilities for customizing tube and rack coding, we adapt your sample storage system to your needs and preferences.

You are currently viewing a placeholder content from Vimeo. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.

More Information
Unblock content Accept required service and unblock content

Latest News from SLAS 2023 in Boston! – Our Product Manager Waldemar Janzen explains the functions of the TLM864.
