SAFE® 96 XT - 2D TUBES WITH EXTERNAL THREAD IN 96 SBS FORMAT

Discover the SAFE® 96 XT tubes, specifically designed for efficient sample storage in automated storage systems. These 2D-coded tubes with external threads offer a significant advantage over tubes with internal threads due to their lower height. Notably, the SAFE® SX 300 tube, with a usable working volume of 300 µl and a height of only 20.3 mm (including screw cap), is a true space-saving marvel.

The SAFE® 96 XT tubes maximize storage capacity and provide a reliable solution for your laboratory processes. Thanks to the external threads, cross-contamination is minimized, and the patented TPE compression ensures excellent sealing. These tubes are ideal for use in highly automated environments, enabling efficient and secure long-term sample storage. With the SAFE® 96 XT tubes, laboratories can efficiently and safely store their samples while enhancing automation capabilities.

Discover our 96 XT product range!

Product Features Overview:

Tube

  • Newly designed 2D tubes
  • 2D bottom code / protective rim against
    mechanical influences (scratches)
  • 1D side code / HR side code
  • Free space for custom coding
  • SAFE® medical-grade polypropylene with low leachables and low extractables
  • New cap design: excellent sealing, easy manual handling, automation-friendly closure

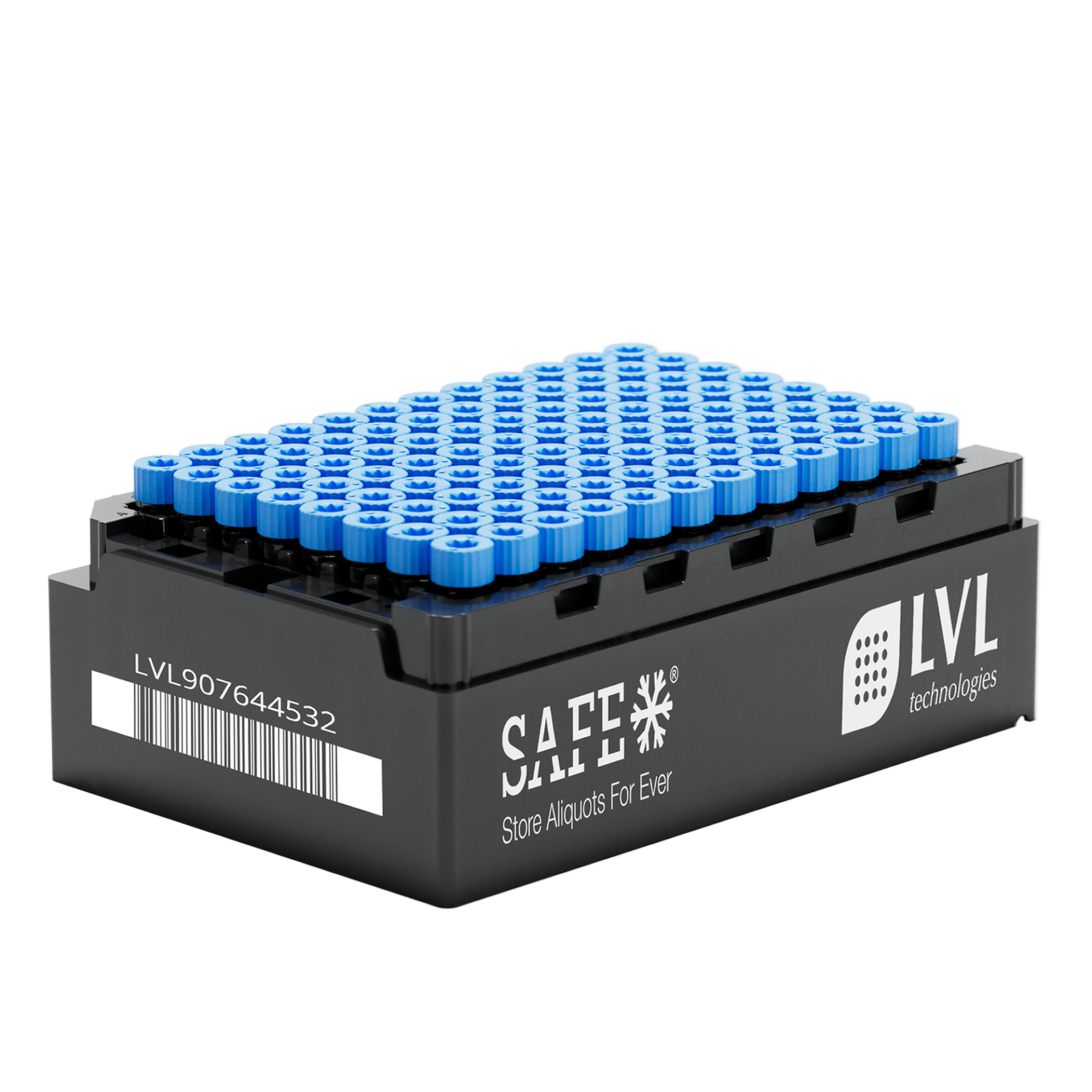

Rack

Advantages of LVL SAFE® Automation-Friendly Racks:

  • Extremely stable polycarbonate rack
  • Tubes have a stable position in the rack and can be easily removed
  • Rack locking mechanism prevents tubes from turning during capping/decapping
  • Storage at up to -196°C (LN2)
  • Manufactured in ISO 8 cleanroom, certified free from DNA, DNase, RNase, endotoxin
  • Optional additional sterilization available
  • Standard SBS format
  • stackable
  • 1D code and plain text on the narrow side of the rack
  • 2D orientation code on the bottom of the rack
  • Easy Lock Lid
  • Compatible with all common automated storage systems
  • Unique feature: optional custom numbering (e.g., with 2 letters and 10 digits) for immediate assignment, e.g., for external samples including Excel list with complete coding and free design of all four rack sides including logo and additional information

Screw Caps

Tube Cap Fabre Spirale
Tube Cap Fabre Spirale
  • Unique sealing component (IATA and CO2 tested)
  • No manual over-tightening possible
  • Extremely space-saving
  • Cap made of polypropylene (PP), seal made of thermoplastic elastomer (TPE)
  • Cap designed for automatic, semi-automatic, and manual cappers/decappers
  • Storage at up to -196°C (LN2)
  • More than 16 different colors available
  • Manufactured in ISO 8 cleanroom, certified free from DNA, DNase, RNase, endotoxin
  • Available pre-capped, in cap rack/holder, or as bulk
  • Optional additional sterilization available

Push Caps

  • Thermoplastic elastomer (TPE) material
  • A single press of the mat simultaneously seals 96 tubes at once.
  • Available as 8 and 12 strips
  • Storage at up to -80°C
  • Up to 14 different colors available
  • Manufactured in ISO 8 cleanroom, certified free from DNA, DNase, RNase, endotoxin
  • Optional additional sterilization available

System

  • SAFE® Tube Coding
    Triple security for your samples with triple coding of the tube:
    a 1D side code, side plain text, and a 2D bottom code.
    This ensures secure and easy identification and retrieval of your samples. Simply connect the coding with your sample using our SAFE® Tube or SAFE® Rack Reader.
  • Customizable Free Space
    Additionally, there is ample space for custom coding, which can contain specific information about your lab or samples. The side black area is laser-etched with the LVL logo by default but can be customized for free upon request.
  • 2D Bottom Code and Protective Rim
    The tubes are equipped with a unique 2D bottom code that enables fast and secure identification.
    To ensure the integrity of your samples, the bottom code is protected by a special rim against mechanical influences.

Rack Coding

The new automation-friendly LVL SAFE® 2D rack offers maximum efficiency, safety, and quality in your laboratory.



  • Side Rack Coding:
    The side coding as a 1D code and readable plain text on the rack allows for automatic and visual retrieval of your sample racks. Get to know our SAFE® Rack Reader.
  • Bottom Orientation Code:
    Three new areas for additional information: The revised design includes three new areas to accommodate additional information about the rack and tubes, perfecting traceability and documentation.
