HEAT SEALING FOILS - PERFECT SEALING FOR DEEP WELL PLATES AND TUBE RACKS
Perfect Sealing – Easy Peeling! LVL technologies offers a wide range of heat sealing foils for securely sealing deep well plates and tube racks. These foils are also designed for PP and PS plates and ensure reliable sealing. Our heat sealing foils are also available in roll form and offer high temperature resistance and solvent resistance. In addition, we offer various automatic sealers that allow for easy and efficient application of the foils.

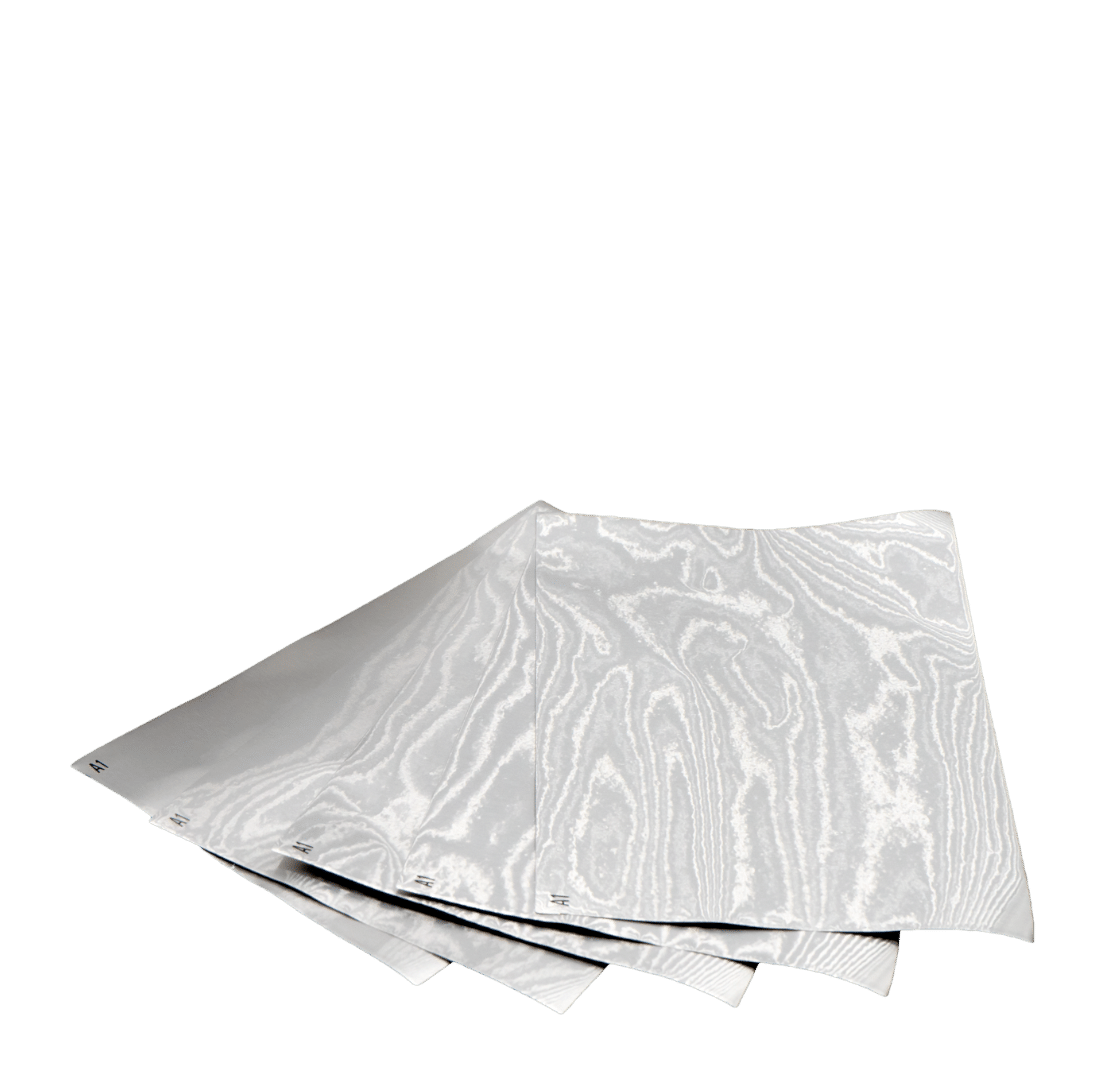

Heat sealing foils
![](https://a8b746f2.rocketcdn.me/wp-content/uploads/2024/05/DSC5623_B-1024x768.png)

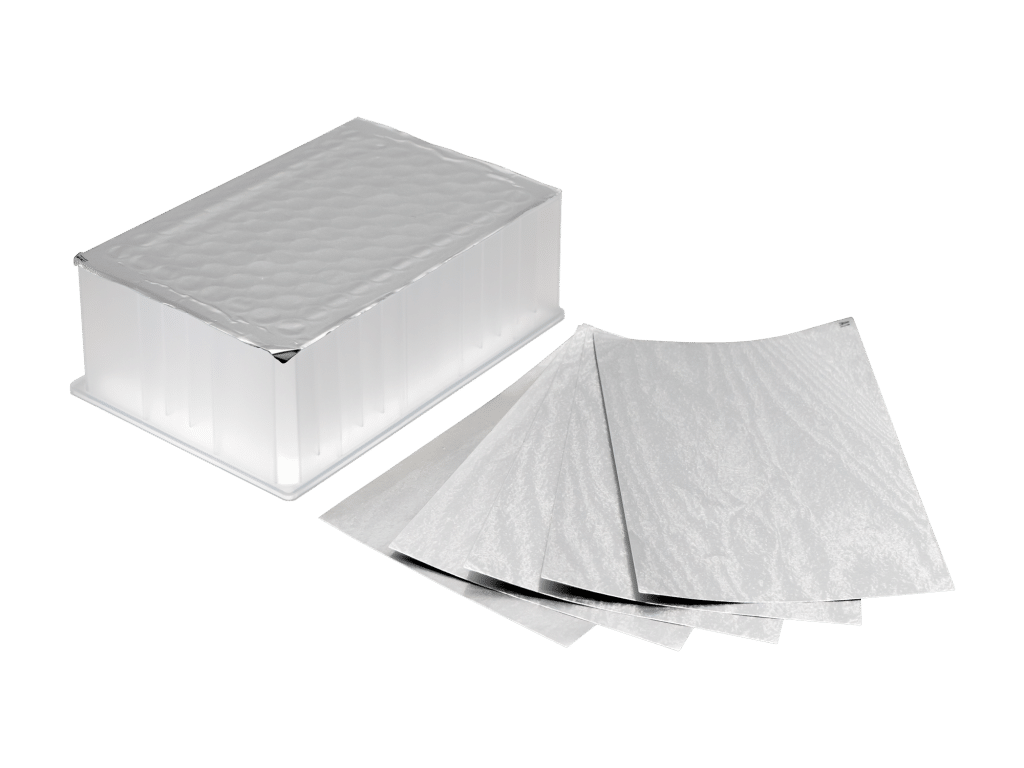

Heat Sealing Foil - Alu
- Foil format: 125 x 78 mm, to fit all standard SBS footprint
- Temperature range: -20°C to +140°C
- DMSO resistent
- The 30µm foil is easily pierceable
- Resealable with another heat seal foil
- The numbers A1 indicate the top side of the foil
- Sealing parameters: 160 – 180°C, 2-3 seconds
- Material: Aluminum
- Material thickness: 30 µm
- Suitable for the following sheet types: PP and PS sheets
Item Number | Foil thickness | Quantity per Unit |
---|---|---|
100.HS.ALU30 | 30 µm | 100 |

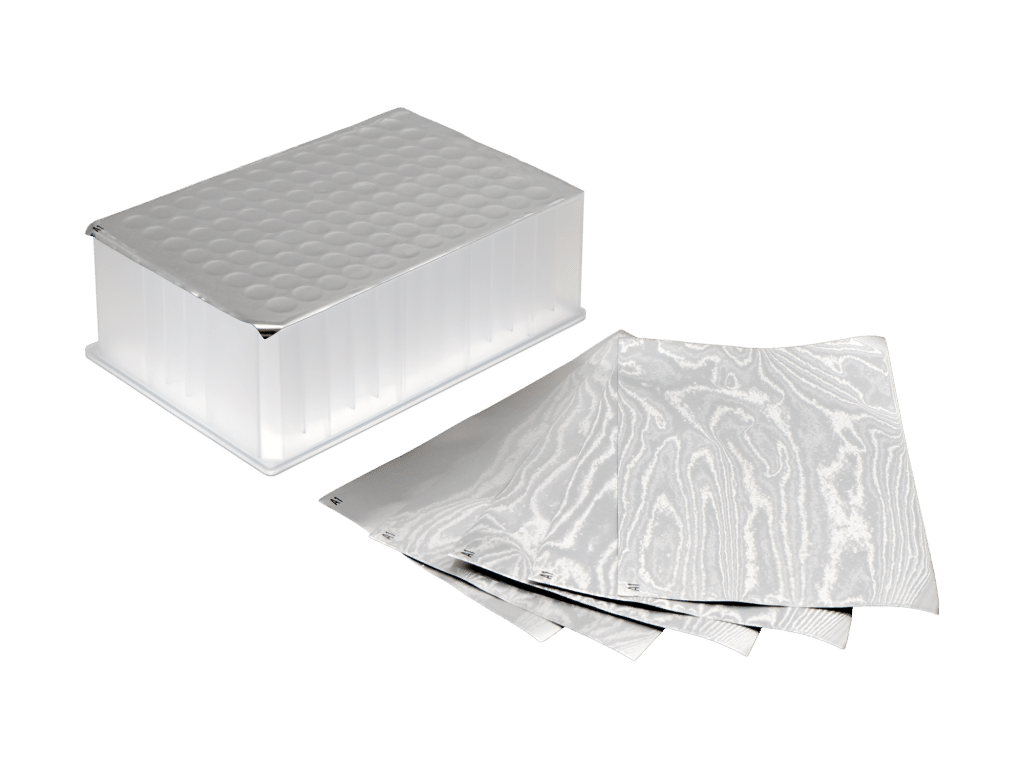

Heat Sealing Foil - Alu 50
- Foil format: 125 x 78 mm, to fit all standard SBS footprint
- Temperature range: -20°C to +140°C
- DMSO resistent
- Resealable with another heat seal foil
- The numbers A1 indicate the top side of the foil
- Sealing parameters: 160 – 180°C, 2-3 seconds
- Material: Aluminum
- Material thickness: 50 µm
- Suitable for the following sheet types: PP and PS sheets
Item Number | Foil thickness | Quantity per Unit |
---|---|---|
100.HS.ALU50 | 50 µm | 100 |
![](https://a8b746f2.rocketcdn.me/wp-content/uploads/2024/05/DSC5632_B-1024x768.png)
![](https://a8b746f2.rocketcdn.me/wp-content/uploads/2024/05/DSC5641_B-1024x768.png)

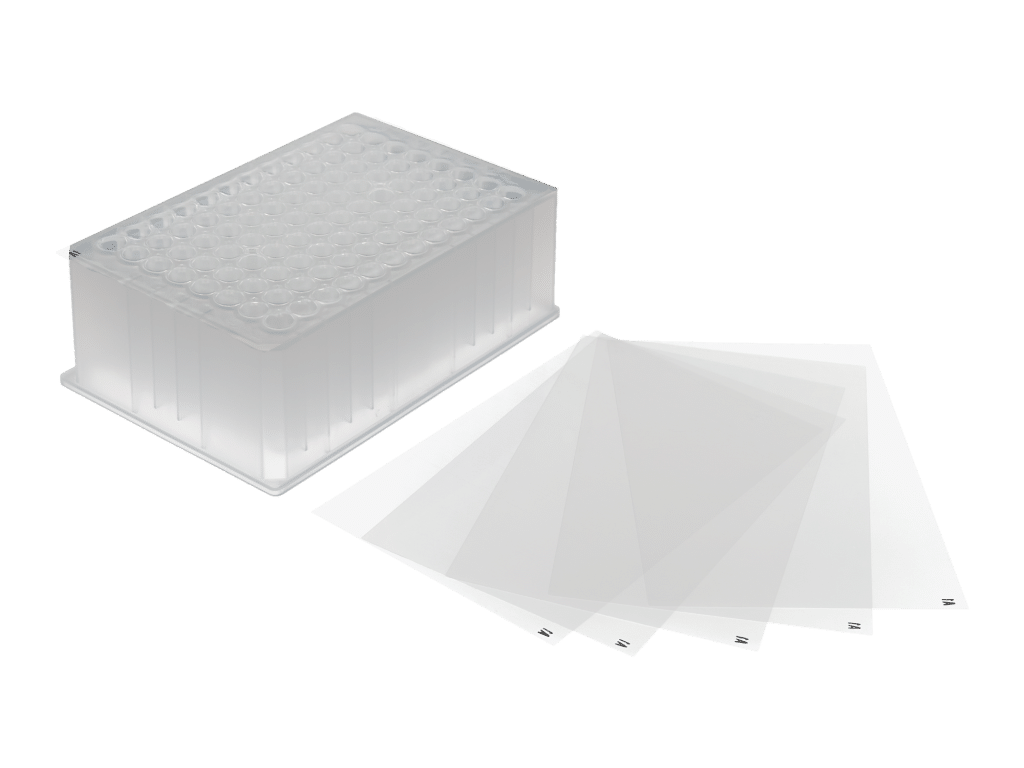

Heat Sealing Foil - Polyester
- Optically clear, peelable
- Foil format: 125 x 78 mm (compatible with standard SBS footprint)
- Temperature range: -80°C to +140°C
- The numbers A1 indicate the top side of the foil
- Sealing parameters: 160 – 185°C, 2-3 seconds
- Material: transparent polyester (PET)
- Material thickness: 50 µm
Item Number | Foil thickness | Quantity per Unit |
---|---|---|
100.HS.PET | 50 µm | 100 |
Learn more about LVL SAFE® products
The LVL Tube Laser Marker TLM 864:
Although the automation-friendly Data-Matrix code on the bottom of storage tubes has been standard for many years—and has greatly simplified sample handling—many users want to mark the tubes with their specific information. At the same time, they want to move away from time-consuming and unreliable labeling methods.
For this need, LVL has developed a fully automatic tube laser marker. The TLM 864 can automatically laser-mark SAFE® tubes in SBS 96, SBS 48, and SBS 24 formats from two sides and link the information in a database with the 2D code previously lasered during production. Up to 500 tubes per hour can be coded from nine SBS/ANSI positions.
LVL`D UP – What’s New, What’s Different?
A completely redesigned automation-friendly rack and tube take our long-term storage tubes to the next level. Join us and upgrade your sample storage. In addition to more than 13 different cap colors and countless possibilities for customizing tube and rack coding, we adapt your sample storage system to your needs and preferences.
Latest News from SLAS 2023 in Boston! – Our Product Manager Waldemar Janzen explains the functions of the TLM864.
