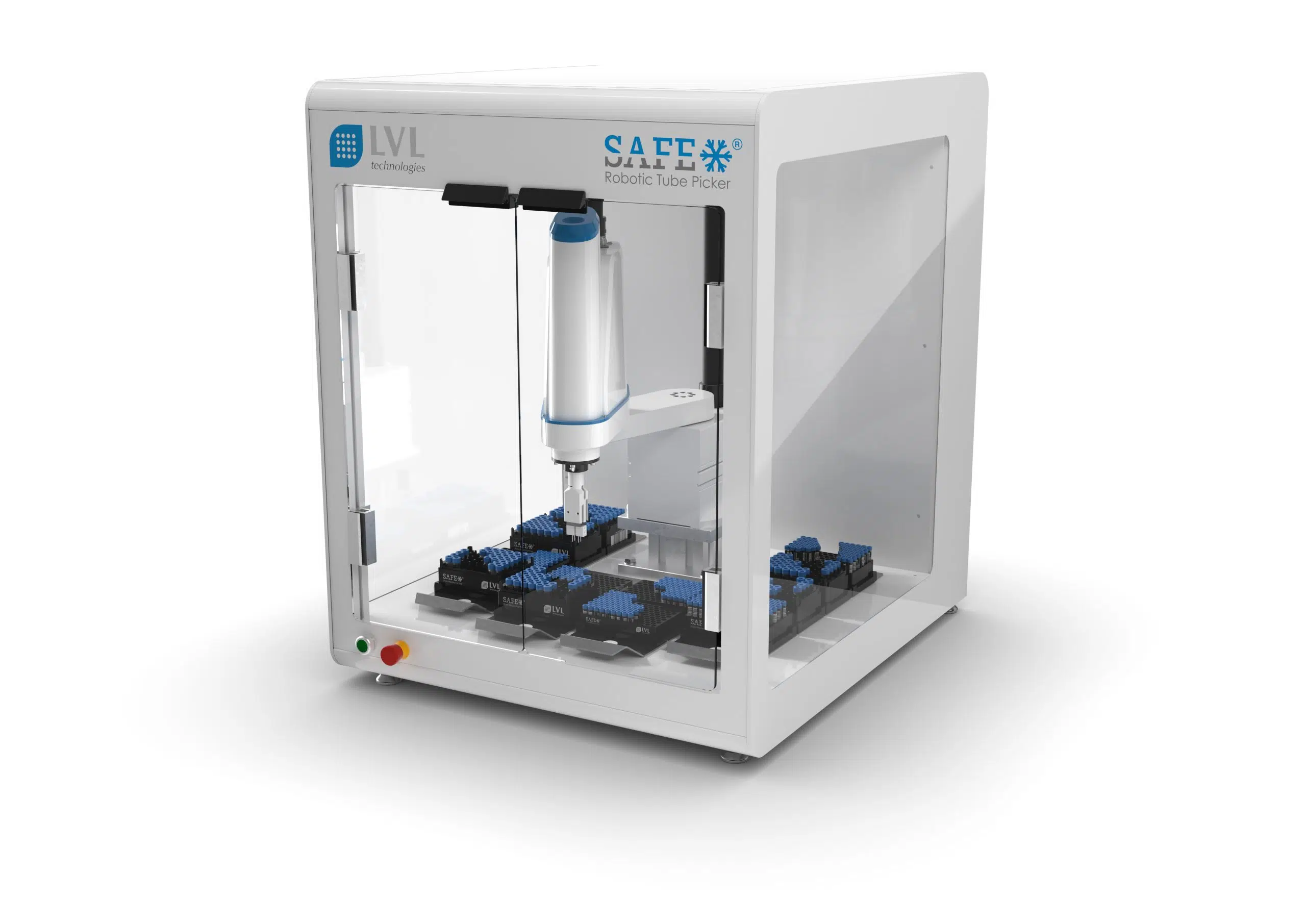

LVL SAFE® Robotic Tube Picker
Safe, efficient and flexible automated sample handling at the highest level.
SAFE® RTP
▪ Bi-directional reformatting: Supports reformatting from SBS to SBS and back, including 96-, 48-, 24-well and 138-well HD High Density formats.
▪ High efficiency: Achieves an average dispensing speed of 2,000 tubes per hour, maximizing throughput and productivity.
▪ 12 positions on the deck: Provides flexibility with 12 deck positions for efficient processing of multiple racks.
▪ Safe precision handling: Ensures accurate and reliable tube selection, minimizes errors and improves safety.
Application / Software:
▪ Control software for managing reformatting lists.
▪ Optional hand-held barcode scanner for rack management.
▪ Import/export of pick lists and sample tracking.
| Article no. | RTP2000 |
|---|---|
| Dimensions (LxWxH) | 709 x 818 x 906 mm |
| weight | approx. 100 kg |
| Power connection | 110-230 VAC, 1500W |
Suitable for the following SAFE® devices and accessories
Learn more about LVL SAFE® products
The LVL Tube Laser Marker TLM 864:
Although the automation-friendly Data-Matrix code on the bottom of storage tubes has been standard for many years—and has greatly simplified sample handling—many users want to mark the tubes with their specific information. At the same time, they want to move away from time-consuming and unreliable labeling methods.
For this need, LVL has developed a fully automatic tube laser marker. The TLM 864 can automatically laser-mark SAFE® tubes in SBS 96, SBS 48, and SBS 24 formats from two sides and link the information in a database with the 2D code previously lasered during production. Up to 500 tubes per hour can be coded from nine SBS/ANSI positions.
LVL`D UP – What’s New, What’s Different?
A completely redesigned automation-friendly rack and tube take our long-term storage tubes to the next level. Join us and upgrade your sample storage. In addition to more than 13 different cap colors and countless possibilities for customizing tube and rack coding, we adapt your sample storage system to your needs and preferences.
Latest News from SLAS 2023 in Boston! – Our Product Manager Waldemar Janzen explains the functions of the TLM864.
