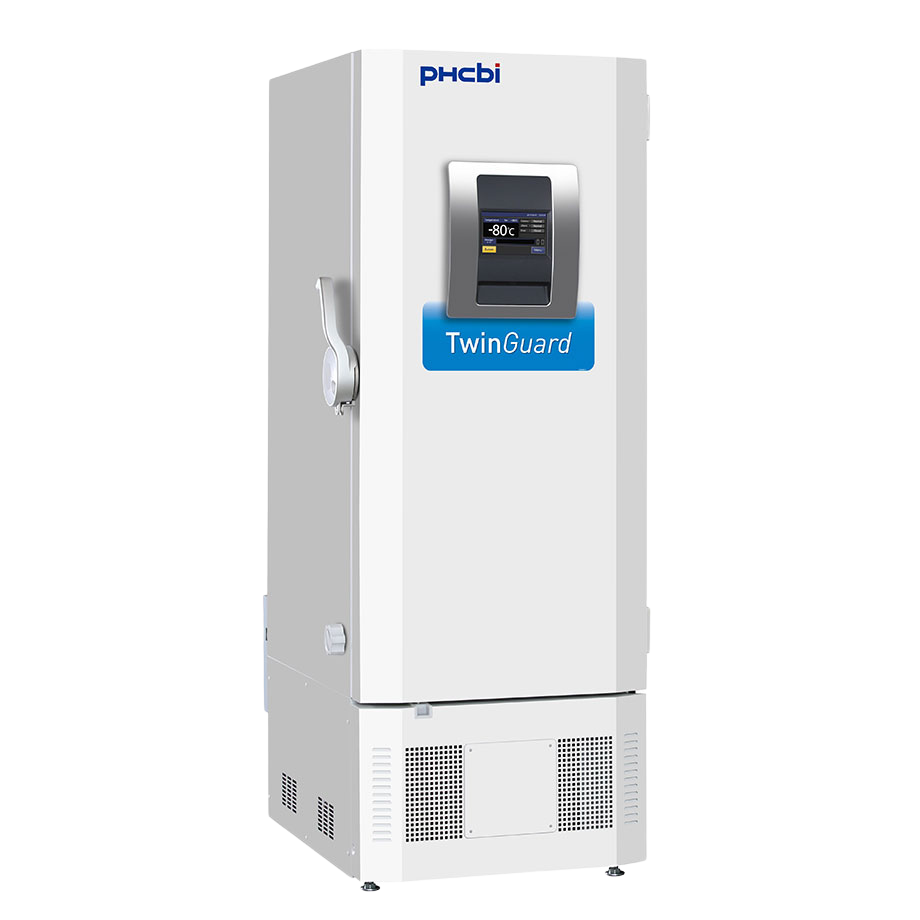

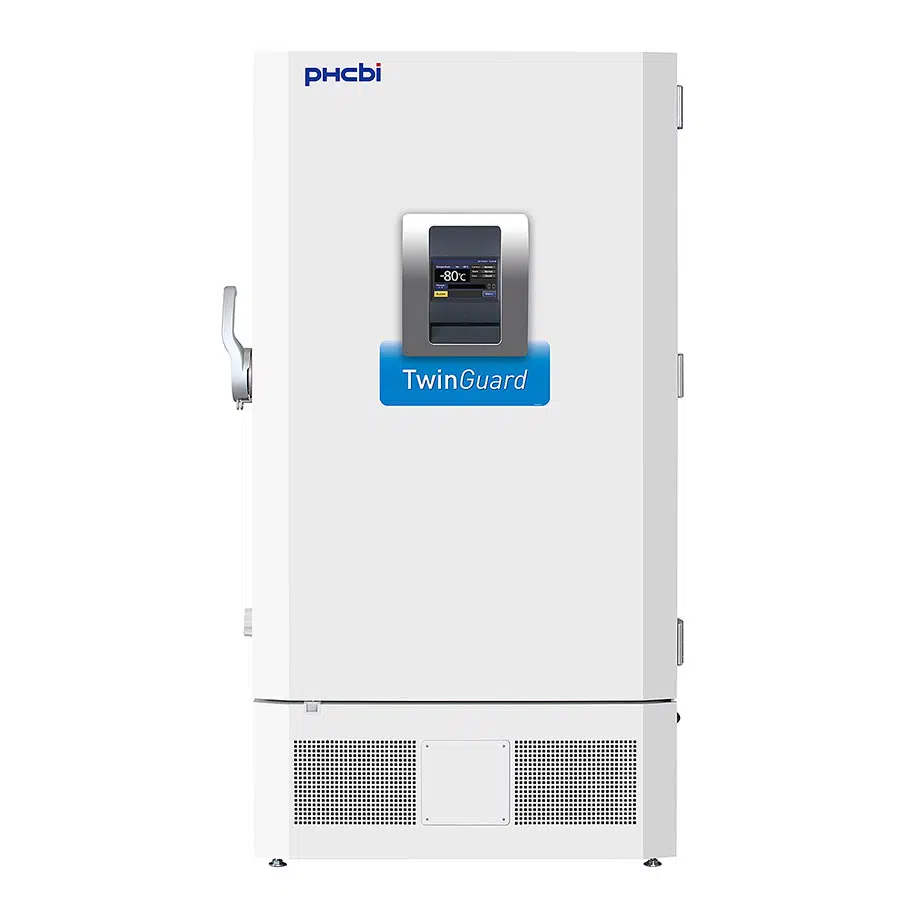

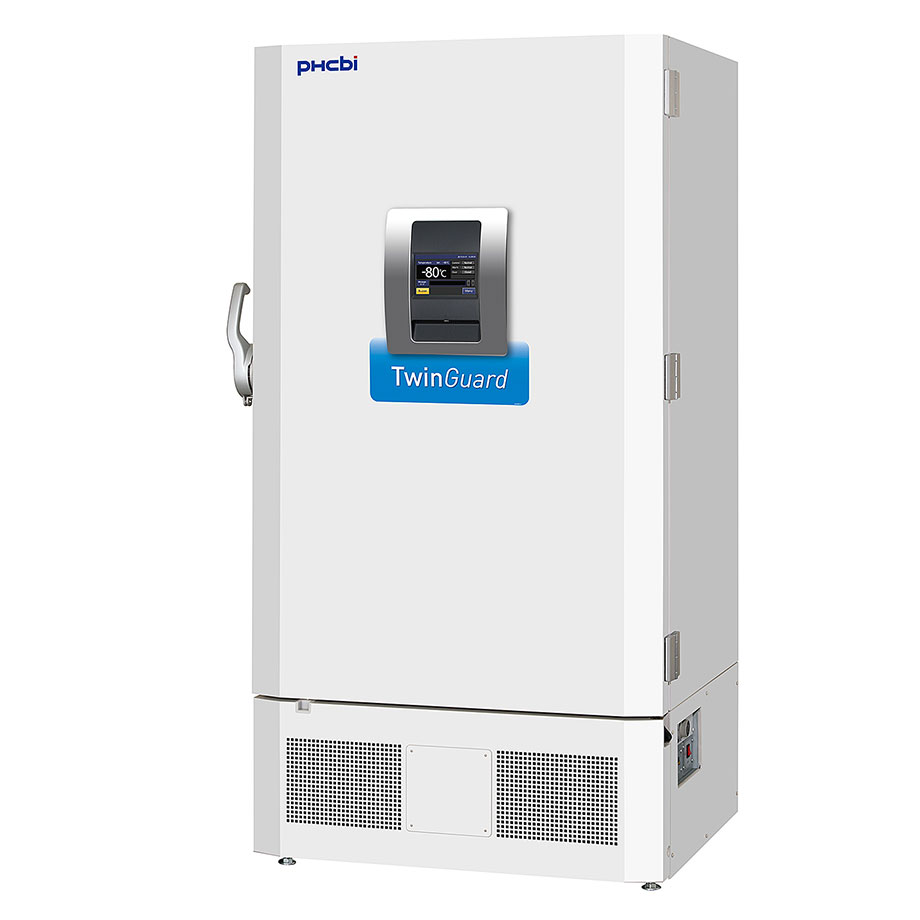

MDF-DU702VX-PE - ULTRA-LOW TEMPERATURE REFRIGERATOR FOR LARGE SAMPLE VOLUMES
The TwinGuard MDF-DU702VX-PE -86°C Ultra Low Temperature Refrigerator meets industry demands for safe, long-term storage of the highest-value materials. Two independent cooling systems, combined with optional liquid nitrogen or liquid CO2 backup systems, provide a unique protection cycle on the market.
With two independent cooling systems, TwinGuard refrigerators ensure a reliable and uniform ultra-low temperature environment of -86ºC. Should one cooling system unexpectedly fail, the other circuit keeps irreplaceable samples safe at -70ºC until service can be arranged.
Ultimate Sample Protection
The Dual Cooling System offers maximum protection by utilizing two independent cooling systems. If one system unexpectedly fails, the other system can maintain the freezer at -70°C. Keep valuable and irreplaceable samples secure with the utmost assurance that they won’t be lost in the event of a compressor failure.
Efficient Sample Storage
The combination of VIP PLUS vacuum insulation and an improved cabinet design with an insulated outer door ensures optimal temperature distribution, while the reduced wall thickness maximizes storage capacity.
Flexible Shelf Configuration
Multiple shelf configurations allow for a variety of storage options. Organize your samples by transferring your current storage racks.
Smart Interface
The EZlatch makes accessing stored samples even easier. A color LCD touchscreen panel allows full user control, even with gloves on, while the USB port facilitates the transfer of logged data to a PC.

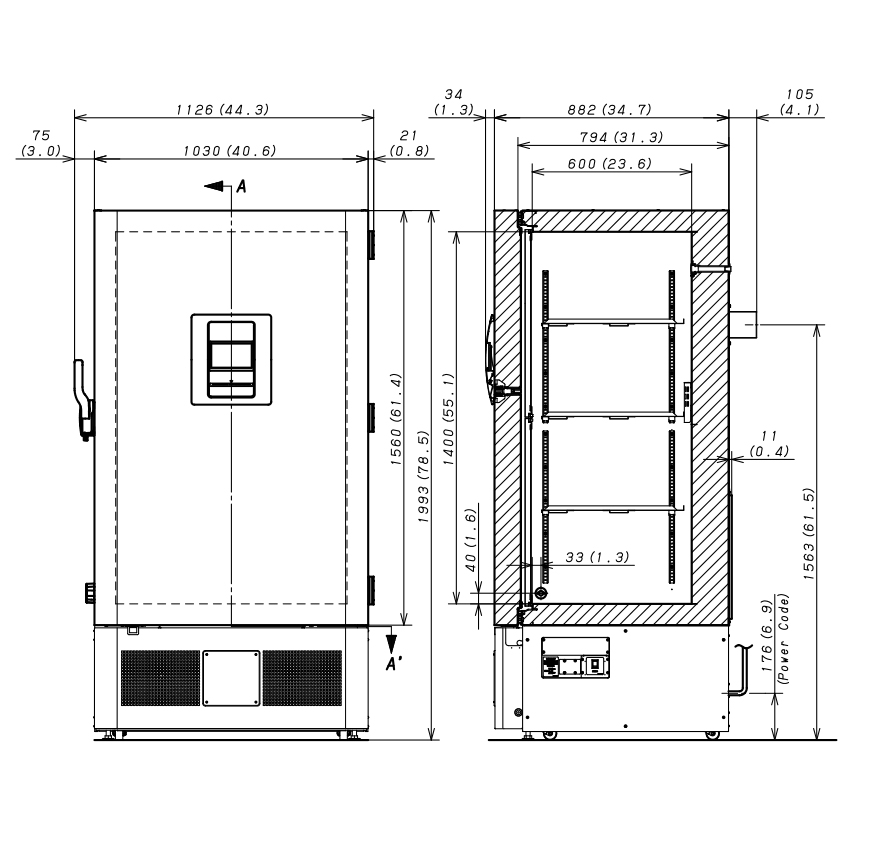

| External dimensions (W x D x H) | 1030 x 882 x 1993 mm |
|---|---|
| Internal dimensions (W x D x H) | 870 x 600 x 1400 mm |
| Volume | 729 liters |
| Net weight (approx.) | 328 kg |
| Capacity (aluminum racks 2” boxes) | 576 (2″-boxes) |
| Capacity (stainless steel racks 2” boxes) | – |

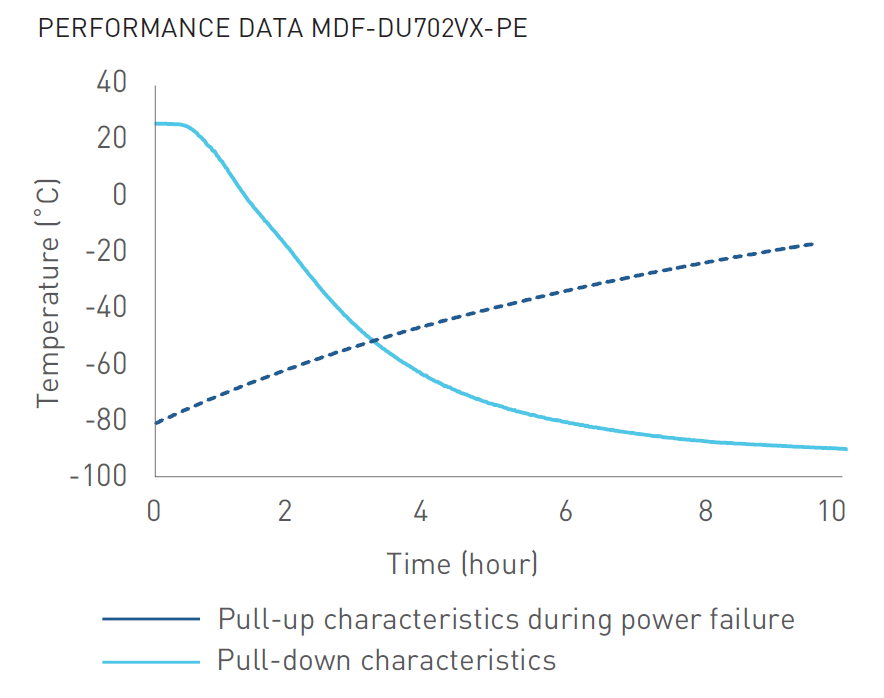

| Cooling performance | -86 °C |
| Temperature setting range | -50 to -90 °C |
| Temperature control range | -50 to -86 °C |
| Controller | Microprocessor, non-volatile memory |
| Display | LCD-Touchscreen |
| Temperature sensor | Pt-1000 |
| Cooling system | Independent dual cooling |
| High pressure compressor | 2 x 1100 W |
| Refrigerant | Mixed CFC |
| Insulation material | PUF / VIP Plus |
| Insulation thickness | 80 mm |
| Exterior | Painted steel |
| Interior | Painted steel |
| Exterior door | 1 |
| Exterior door lock | J |
| Interior door | 2 |
| Shelves | 3 (stainless steel) |
| Max. Load per shelf | 50 kg |
| Max. Total load | 515 kg |
| Vacuum release port | 2 (1 automatic, 1 manual) |
| Access port | 3 |
| Access port position | rear x 1, bottom x 2 |
| Access port diameter | 17 |
| Casters | 4 (2 adjustable feet) |
| Power failure | O-A-F |
| Temperature too high | O-A-F |
| Temperature too low | O-A-F |
| Filter | Filterless design |
| Door open | O-A |
| Power supply | 230 V |
| Frequency | 50 Hz |
| Volume | 52 dB [A] |
| Number of LVL SBS racks per freezer | ||||||||||||
| PHCBi Model | SX300 | MX500 | LX1000 | MI500 | LI1000 | XLX500 | XLX2000 | XLX4000 | XXLX2000 | XXLX4000 | XXLX6000 | XXLX8000 |
| MDF-DU702VX-PE | 1728 | 1296 | 864 | 1152 | 720 | 1728 | 864 | 432 | 1296 | 1008 | 720 | 720 |
