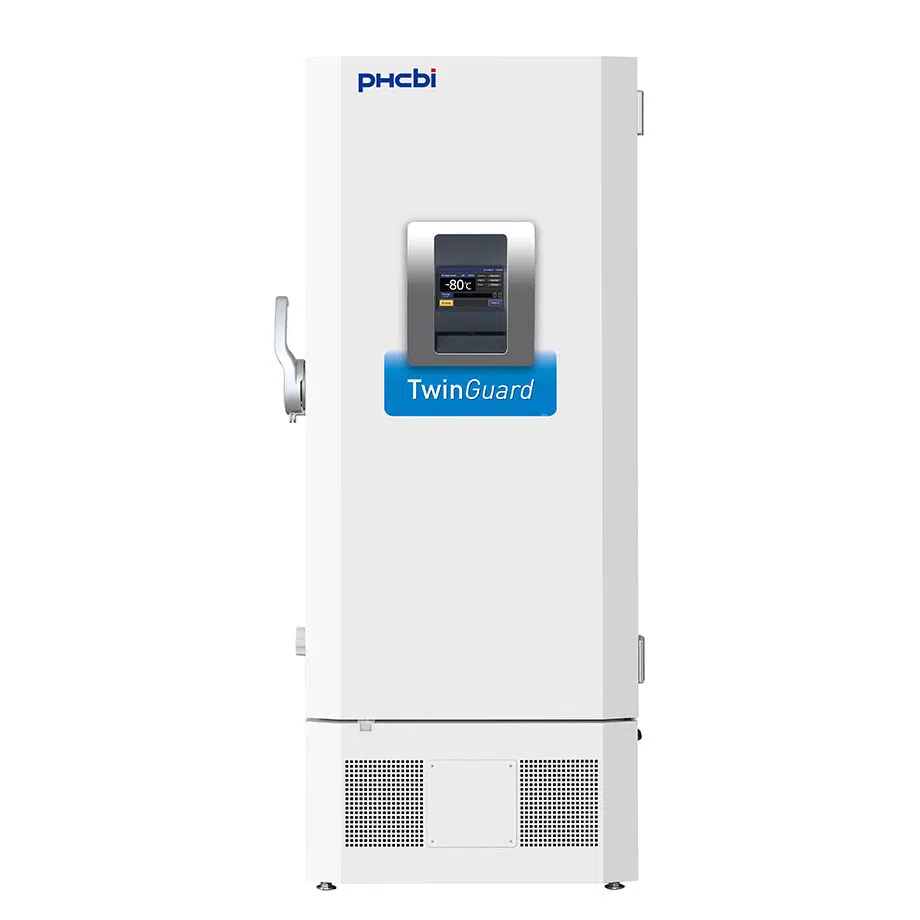

MDF-DU502VX-PE - HIGH-PERFORMANCE ULTRA-LOW TEMPERATURE FREEZER
The TwinGuard MDF-DU502VX-PE -86°C Ultra Low Temperature Freezer meets the industry’s demand for safe, long-term storage of highly valuable materials. Two independent cooling systems, supplemented by optional liquid nitrogen or liquid CO2 emergency cooling systems, provide unmatched protection on the market.
With two independent cooling systems, TwinGuard freezers maintain a reliable and consistent ultra-low temperature environment of -86ºC. Should one cooling system unexpectedly fail, the other circuit ensures safe cooling of irreplaceable samples at approximately -70ºC until repairs can be made.
Ultimate Sample Protection
The Dual Cooling System offers the best protection by utilizing two independent cooling systems. If one system unexpectedly fails, the other can maintain the freezer at -70°C. Store valuable and irreplaceable samples with the utmost confidence that they will not be lost in the event of a compressor failure.
Efficient Sample Storage
The combination of VIP PLUS vacuum insulation and improved cabinet design with an insulated outer door ensures optimal temperature consistency while maximizing storage capacity through reduced wall thickness.
Flexible Shelf Configuration
Multiple shelf configurations allow for a variety of storage options. Organize your samples using your existing storage racks.
Smart Interface
The EZ handle makes accessing stored samples even easier. A color LCD touchscreen allows full control by the user, even with gloved hands, while a USB port facilitates the seamless transfer of logged data to a PC.
![](https://a8b746f2.rocketcdn.me/wp-content/uploads/2023/11/MDF-DU502VX_Performance.png)
![](https://a8b746f2.rocketcdn.me/wp-content/uploads/2023/11/MDF-DU502VX-PE_dimensions.png)
External dimensions (W x D x H) | 790 x 882 x 1993 mm |
---|---|
Internal dimensions (W x D x H) | 630 x 600 x 1400 mm |
Volume | 528 liters |
Net weight (approx.) | 285 kg |
Capacity (aluminum racks 2” boxes) | 384 (2″-boxes) |
Capacity (stainless steel racks 2” boxes) | – |
Cooling performance | -86 °C |
Temperature setting range | -50 to -90 °C |
Temperature control range | -50 to -86 °C |
Controller | Microprocessor, non-volatile memory |
Display | LCD-Touchscreen |
Temperature sensor | Pt-1000 |
Cooling system | Independent dual cooling |
High pressure compressor | 2 x 1100 W |
Refrigerant | Mixed CFC |
Insulation material | PUF / VIP Plus |
Insulation thickness | 80 mm |
Exterior | Painted steel |
Interior | Painted steel |
Exterior door | 1 |
Exterior door lock | J |
Interior door | 2 |
Shelves | 3 |
Max. Load per shelf | 50 kg |
Max. Total load | 415 kg |
Vacuum release port | 2 (1 automatic, 1 manual) |
Access port | 3 |
Access port position | rear x 1, bottom x 2 |
Access port diameter | 17 |
Casters | 4 (2 adjustable feet) |
Power failure | O-A-F |
Temperature too high | O-A-F |
Temperature too low | O-A-F |
Filter | Filterless design |
Door open | O-A |
Power supply | 230 V |
Frequency | 50 Hz |
Volume | 52 dB [A] |
Number of LVL SBS racks per freezer | ||||||||||||
PHCBi Model | SX300 | MX500 | LX1000 | MI500 | LI1000 | XLX500 | XLX2000 | XLX4000 | XXLX2000 | XXLX4000 | XXLX6000 | XXLX8000 |
MDF-DU502VX-PE | 1152 | 864 | 576 | 768 | 480 | 1152 | 576 | 288 | 864 | 672 | 480 | 480 |
