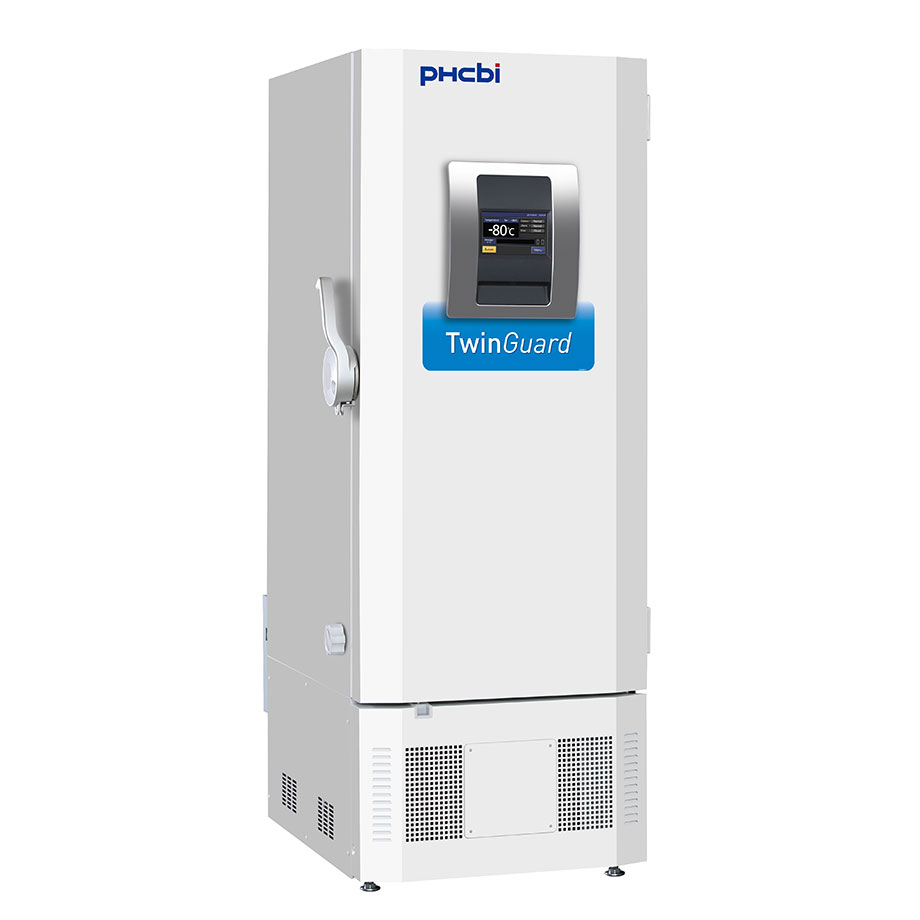

MDF-DU302VX-PE - HIGH-PERFORMANCE ULTRA-LOW TEMPERATURE FREEZER
The TwinGuard MDF-DU302VX-PE -86°C Ultra Low Temperature Freezers with Dual Cooling Technology provide the highest level of security for valuable samples. The Dual Cooling System is characterized by exceptional user-friendliness and data monitoring, ensuring the best protection.
With two independent cooling systems, TwinGuard freezers maintain a reliable and consistent ultra-low temperature environment of -86°C. Should one cooling system unexpectedly fail, the other circuit ensures the safe cooling of irreplaceable samples at approximately -70°C until repairs can be made.
Ultimate Sample Protection and Storage of Valuable Samples
The Dual Cooling System offers the best protection by utilizing two independent cooling systems. If one system unexpectedly fails, the other can maintain the freezer at -70°C, providing ultimate protection for your samples. Store valuable and irreplaceable samples with the utmost confidence that they will not be lost in the event of a compressor failure.
Efficient Sample Storage and Flexible Shelf Configuration
The combination of VIP PLUS vacuum insulation and improved cabinet design with an insulated outer door ensures optimal temperature consistency while maximizing storage capacity through reduced wall thickness. Multiple shelf configurations allow for a variety of storage options. Organize your samples using your existing storage racks.
An intelligent interface and suitability for laboratories with restricted access
The EZ handle makes accessing stored samples even easier. A color LCD touchscreen allows full control by the user, even with gloved hands, while a USB port facilitates the seamless transfer of logged data to a PC. Significantly extended response time to sudden mechanical failures and data recording make it ideal for high-security applications such as pathogen research.

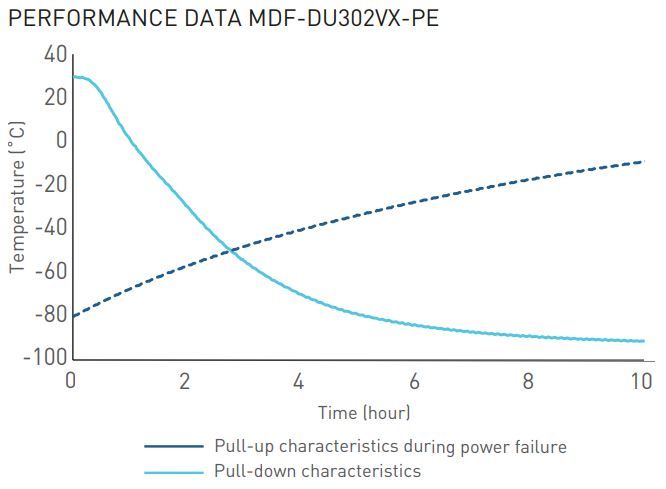

![](https://a8b746f2.rocketcdn.me/wp-content/uploads/2023/11/performance-data-mdf-du302vx.jpg)

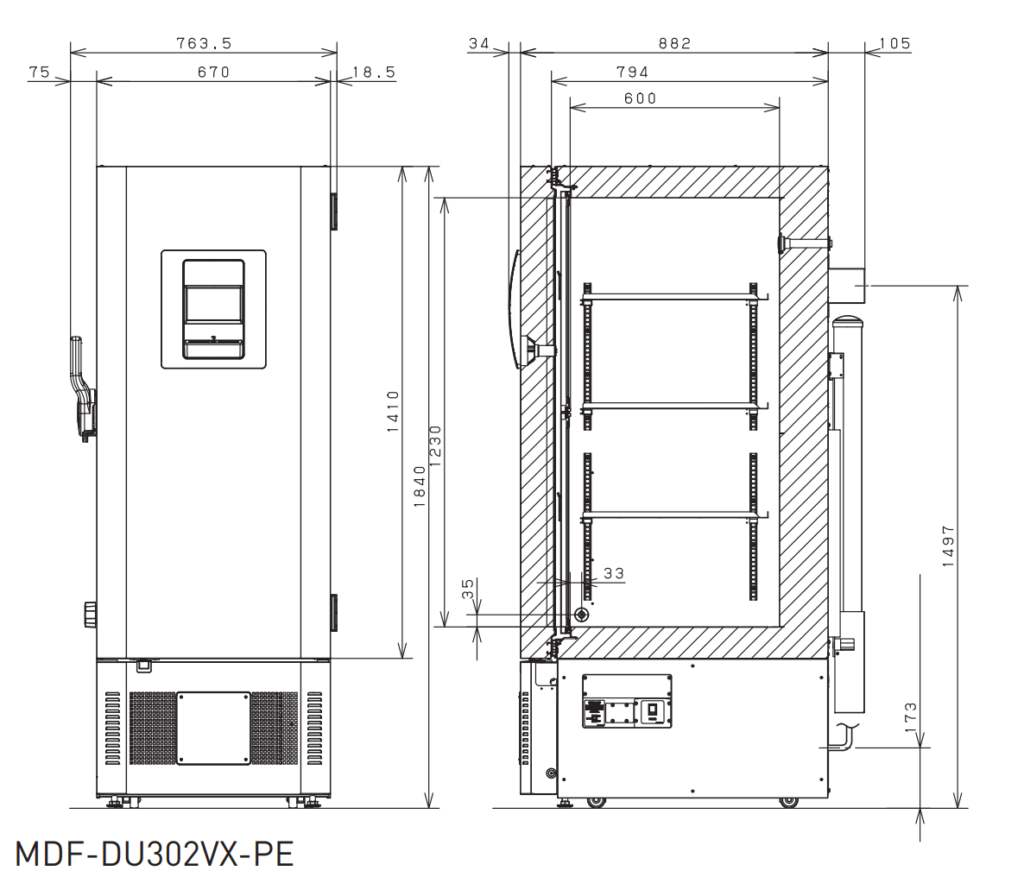

![](https://a8b746f2.rocketcdn.me/wp-content/uploads/2023/11/MDF-DU302VX-1024x896.png)
External dimensions (W x D x H) | 670 x 882 x 1840 mm |
---|---|
Internal dimensions (W x D x H) | 490 x 600 x 1230 mm |
Volume | 360 liters |
Net weight (approx.) | 225 kg |
Capacity (aluminum racks 2” boxes) | 240 (2″-boxes) |
Capacity (stainless steel racks 2” boxes) | – |
Cooling performance | -86 °C |
Temperature setting range | -50 to -90 °C |
Temperature control range | -50 to -86 °C |
Controller | Microprocessor, non-volatile memory |
Display | LCD-Touchscreen |
Temperature sensor | Pt-1000 |
Cooling system | Independent dual cooling |
High pressure compressor | 2 x 450 W |
Refrigerant | Mixed CFC |
Insulation material | PUF / VIP Plus |
Insulation thickness | 80 mm |
Exterior | Painted steel |
Interior | Painted steel |
Exterior door | 1 |
Exterior door lock | J |
Interior door | 2 |
Shelves | 3 |
Max. Load per shelf | 50 kg |
Max. Total load | 415 kg |
Vacuum release port | 2 (1 automatic, 1 manual) |
Access port | 3 |
Access port position | rear x 1, bottom x 2 |
Access port diameter | 17 |
Casters | 4 (2 adjustable feet) |
Power failure | O-A-F |
Temperature too high | O-A-F |
Temperature too low | O-A-F |
Filter | Filterless design |
Door open | O-A |
Power supply | 230 V |
Frequency | 50 Hz |
Volume | 52 dB [A] |
Number of LVL SBS racks per freezer | ||||||||||||
PHCBi Model | SX300 | MX500 | LX1000 | MI500 | LI1000 | XLX500 | XLX2000 | XLX4000 | XXLX2000 | XXLX4000 | XXLX6000 | XXLX8000 |
MDF-DU302VX-PE | 720 | 576 | 360 | 504 | 288 | 720 | 360 | 216 | 576 | 432 | 288 | 288 |
